Scania DC11 - Oil Cooler

128
©
Scania CV AB 2011, Sweden
01:03-02
Oil cooler
Tightening torques

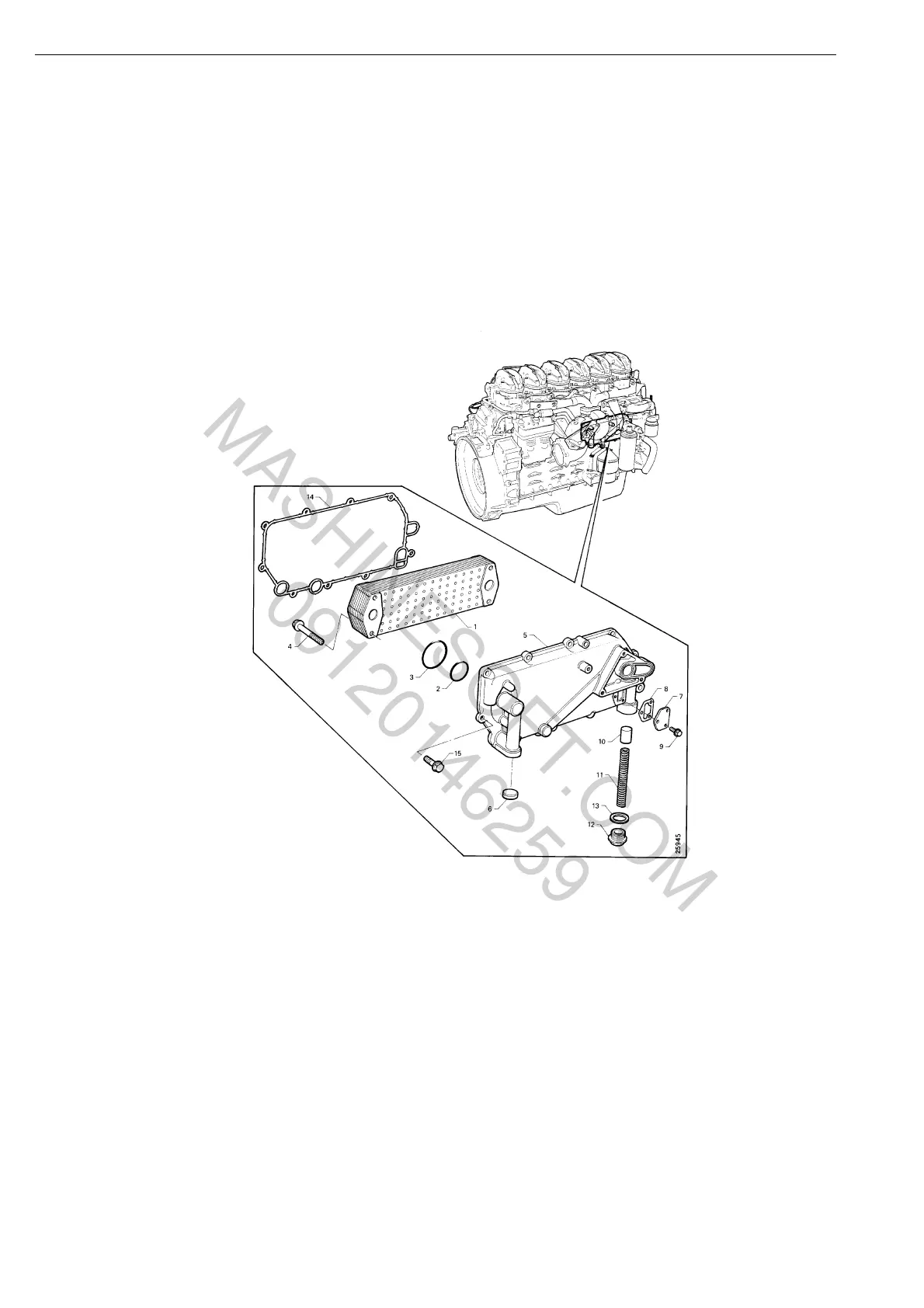

Exploded view
Bolts for oil cooler insert 26 Nm
1 Oil cooler
2 O-ring
3 O-ring
4 Flange screw
5 Oil cooler cover
6 Core plug
7 Cover
8 Gasket
9 Bolt
10 Piston
11 Spring
12 Plug
13 Gasket
14 Gasket
15 Flange screw
Lubrication system
