Scania DC11 - Renewing the Diaphragm

01:03-02
©
Scania CV AB 2011, Sweden
85
Renewing the diaphragm
1 Remove the belt.

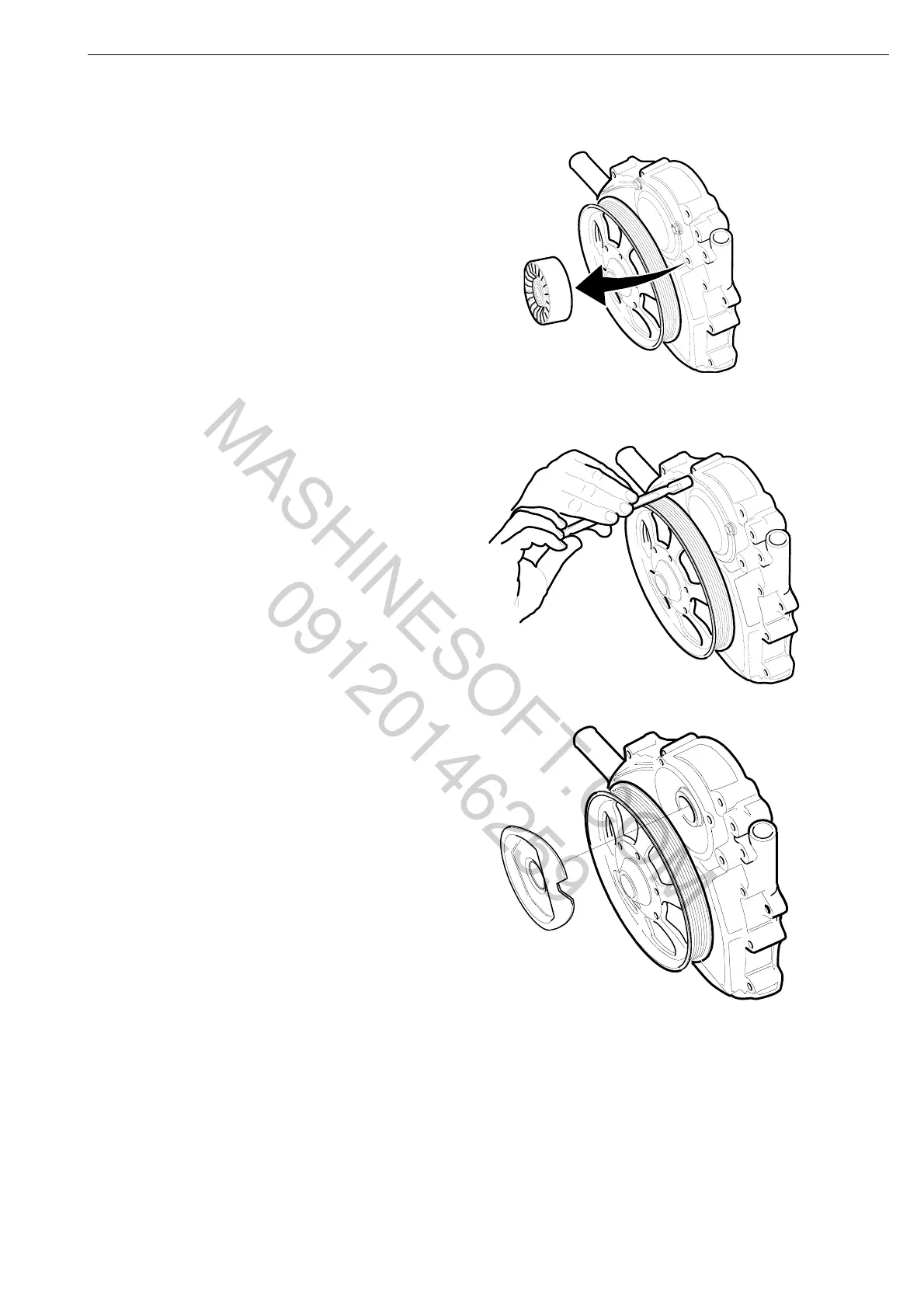

2 Remove the idler roller on the fan coupling
housing.
01_1377
3 Remove the crankcase ventilation cover.
01 1378
4 Remove the diaphragm and spring.
The spring has been removed from January
1999 onwards. On vehicles fitted with the
spring, the spring does not need to be
refitted.
5 Fit the new diaphragm.
6 Fit the cover.
7 Fit the idler roller.
8 Fit the belt.
120 015
Closed crankcase ventilation
