Scania DC11 - Checking and Machining Valves

01:03-02
©
Scania CV AB 2011, Sweden
39
Checking and machining valves
Specifications
Intake valve
Head angle 19.5°
Minimum dimension A for ground valve 2.6 mm
Exhaust valve
Head angle 44.5°
Minimum dimension A for ground valve 1.8 mm

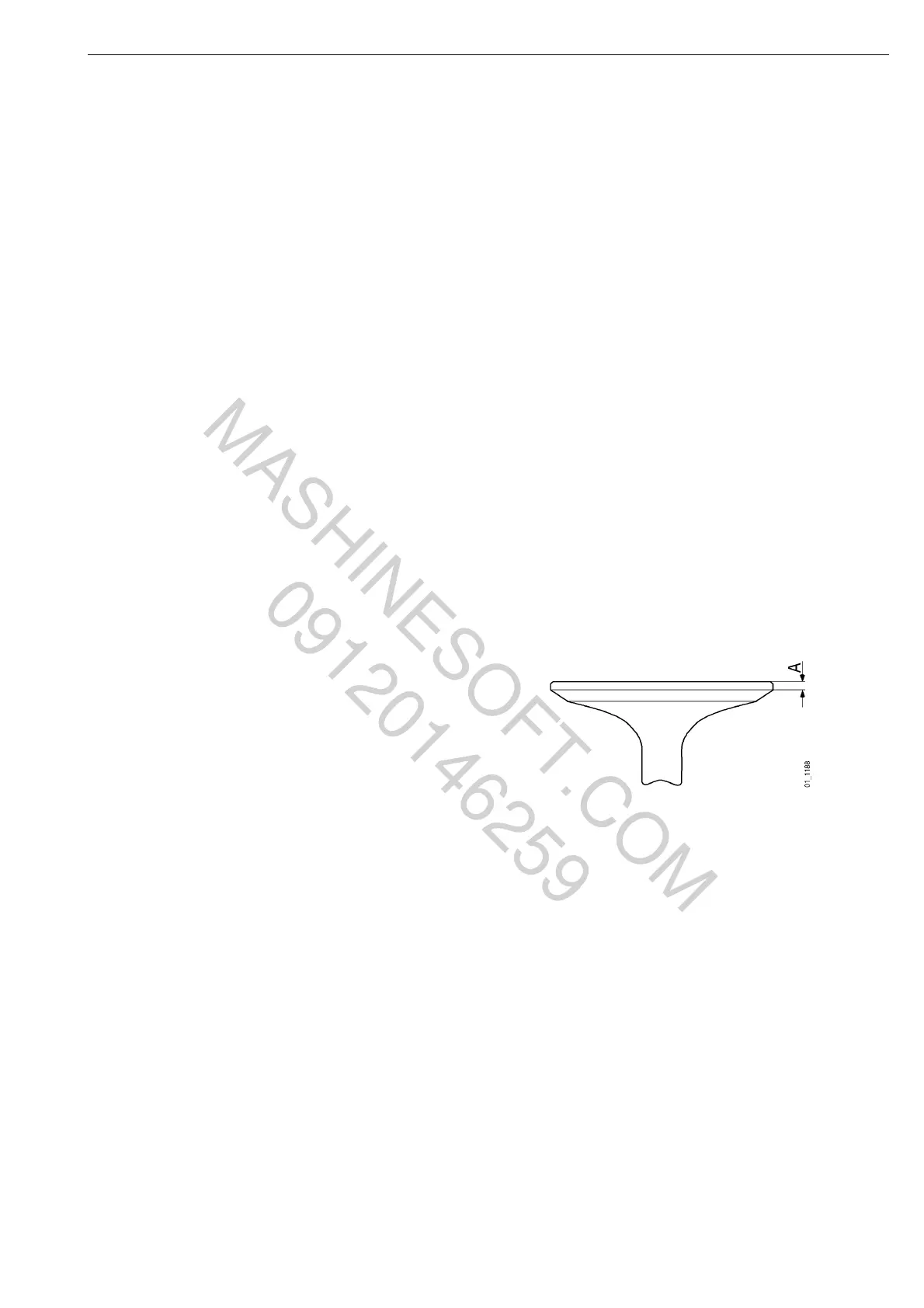

Minimum dimension A for ground valve
Check dimension A on all valves.
Grind the valves in a valve grinding machine.
