Scania DC11 - Removing the Cylinder Liners

01:03-02
©
Scania CV AB 2011, Sweden
55

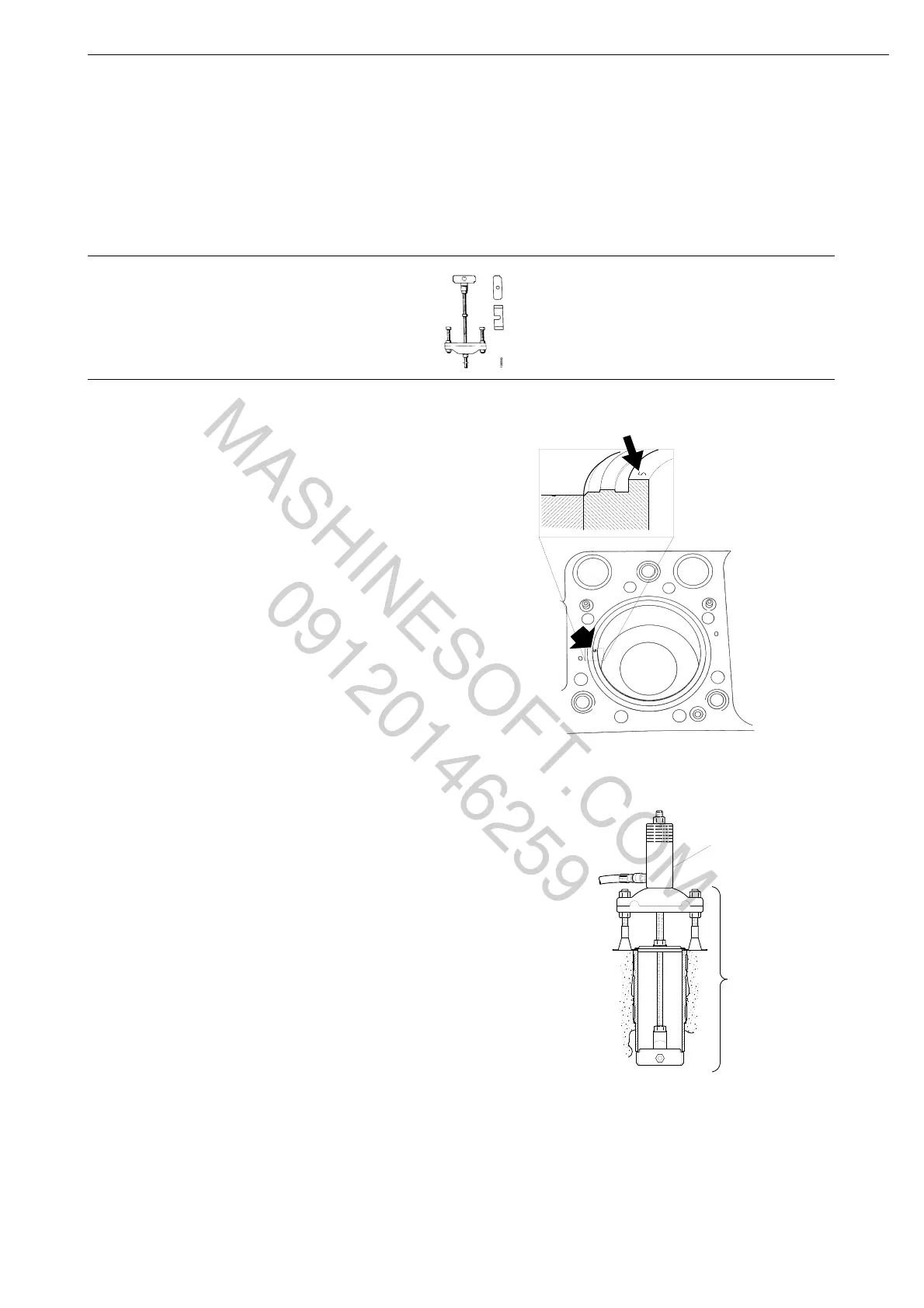

Removing the cylinder liners
Special tools
1 Mark the liners with the numbers 1-6. The
mark is necessary so that the liners can be
refitted in the same place and position as
previously.
Note: The mark must be made only on the
surface indicated in the illustration. Other
surfaces are for sealing. If you use a marker, you
can mark anywhere.
Number Denomination Illustration Tool board
99 066 Cylinder liner puller D2
100214
2 Remove the cylinder liner using puller
99 066.
Cylinder liner extractor with hydraulic hole
cylinder
99 003
100040
99 066
3 Remove the sealing ring in the cylinder
block.
Cylinder block
