Checking and adjusting the valve clearance
Special tools
Check and adjust the valve clearance with the
engine cold. The intake valve clearance should be
0.45 mm and exhaust valve clearance 0.70 mm.
Adjusting may be carried out in one of two ways:
Alternative 1:
Set cylinder 1 exactly at TDC after the
compression stroke. Adjust the following valves:

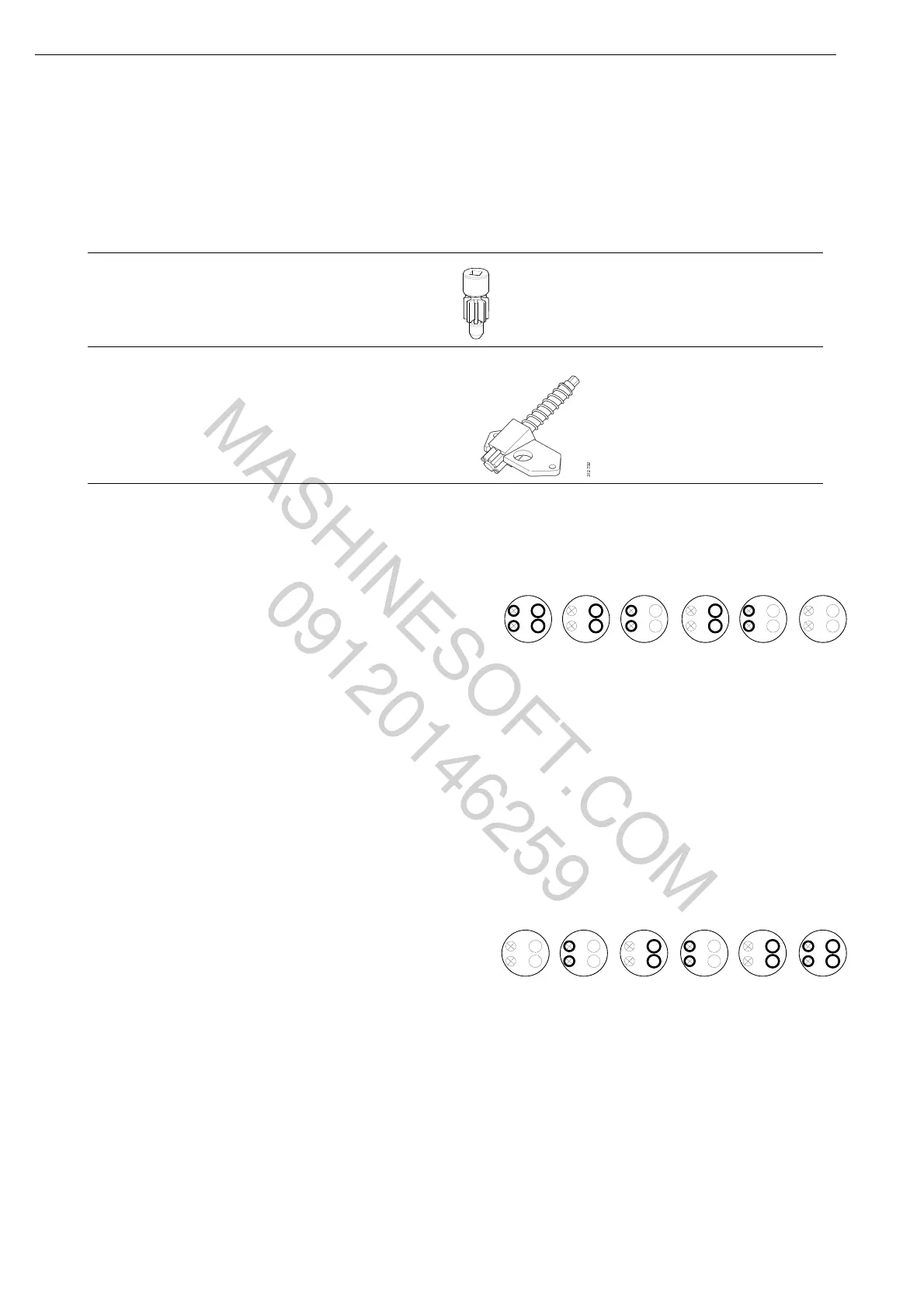

Number Denomination Illustration Tool board
99 309 Flywheel rotation tool (from
below)
D5
99 109 Flywheel rotation tool (from
above)
-
cyl 1 Intake and exhaust
cyl 2 Intake
cyl 3 Exhaust
cyl 4 Intake
cyl 5 Exhaust
100330
O Intake valve
X Exhaust valve
Turn the crankshaft exactly one revolution.
Adjust the following valves:
1
2
34
5
6
114 096
cyl 2 Exhaust
cyl 3 Intake
cyl 4 Exhaust
cyl 5 Intake
cyl 6 Intake and exhaust
O Intake valve
X Exhaust valve
1
2
34
5
6
114 097
Cylinder head
