Scania DC11 - Removing the Intermediate Gear

110
©
Scania CV AB 2011, Sweden
01:03-02
Removing the intermediate gear
Special tools
Other tools
The timing gears consist of one or two
intermediate gears depending on the design. The
gears are removed in the same way.
1 Turn the crankshaft so that cylinder number
1 is close to TDC. Use tool 99 309 or 99 109
and a ratchet handle at the flywheel starter
gear.

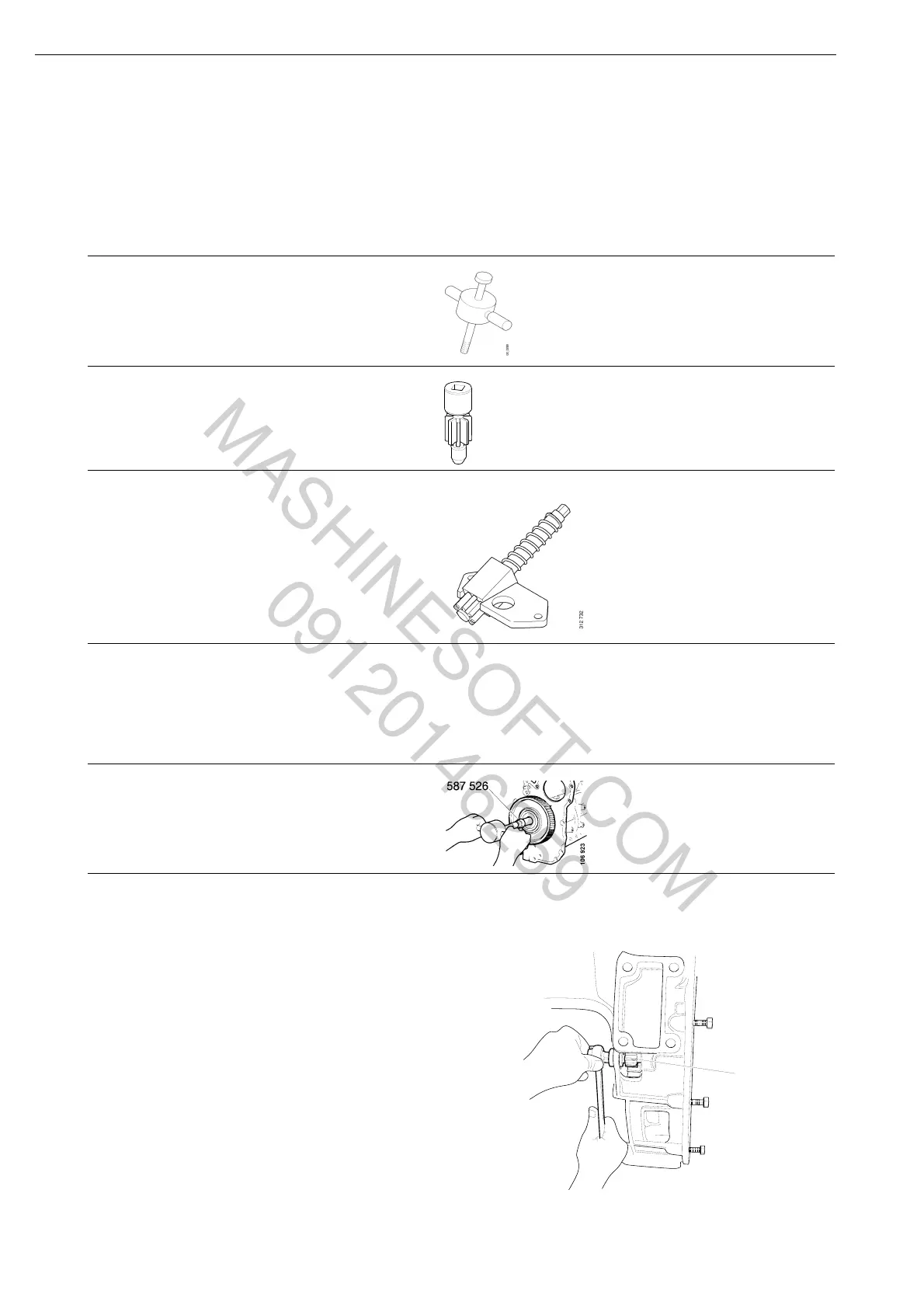

Number Denomination Illustration Tool board
99 074 Impact setting tool D1
99 309 Flywheel rotation tool (from
below)
D5
99 109 Flywheel rotation tool (from
above)
-
Number Denomination Illustration Tool board
587 526 Puller -
100330
99 309
01_1388
Timing gear
