01:03-02
Removing valves
Special tools

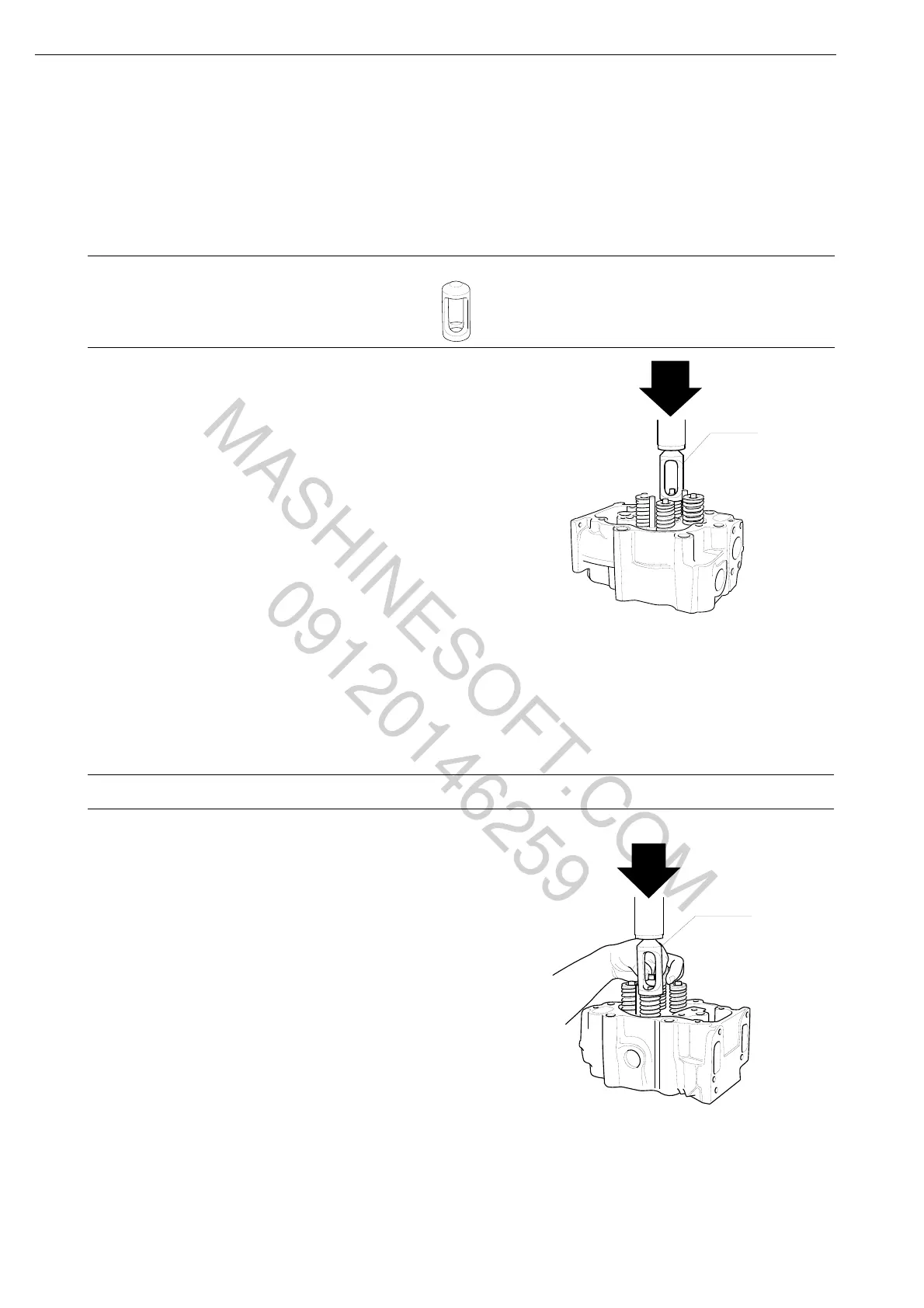

1 Remove split collets, valve spring collars,
springs and valves. Press down the spring
using tool 99 322 in a press so that the split
collets can be removed.
2 Place the valves in a stand so that they can
be refitted in the same position in the
cylinder head.
Number Denomination Illustration Tool board
99 322 Drift D5
100333
99 322
01_1347
99 322
Fitting valves
Special tools
1 Lubricate all parts well with engine oil
before assembly.
2 Insert the valve into the guide.
3 Fit the valve springs and the valve spring
collar.
4 Press together the springs in a press with
tool 99 322 and fit the split collets. Ensure
that the split collets are positioned correctly.
Number Denomination Illustration Tool board
99 322 Drift D5
01 1350
99 322
