Scania DC11 - Removing the Camshaft Gear

01:03-02
©
Scania CV AB 2011, Sweden
115
Removing the camshaft gear
Special tools
1 Turn the crankshaft so that cylinder number
1 is close to TDC. Use tool 99 309 or 99 109
and a ratchet handle at the flywheel starter
gear.
2 Remove the flywheel according to the
section Removing the flywheel.
3 Remove the flywheel housing according to
the section Removing the flywheel housing.
4 Remove the intermediate gear.
IMPORTANT! After removing the intermediate
gear, neither the camshaft nor the crankshaft
must be rotated. This may cause pistons and
valves to collide and be damaged.
5 Remove the camshaft gear.

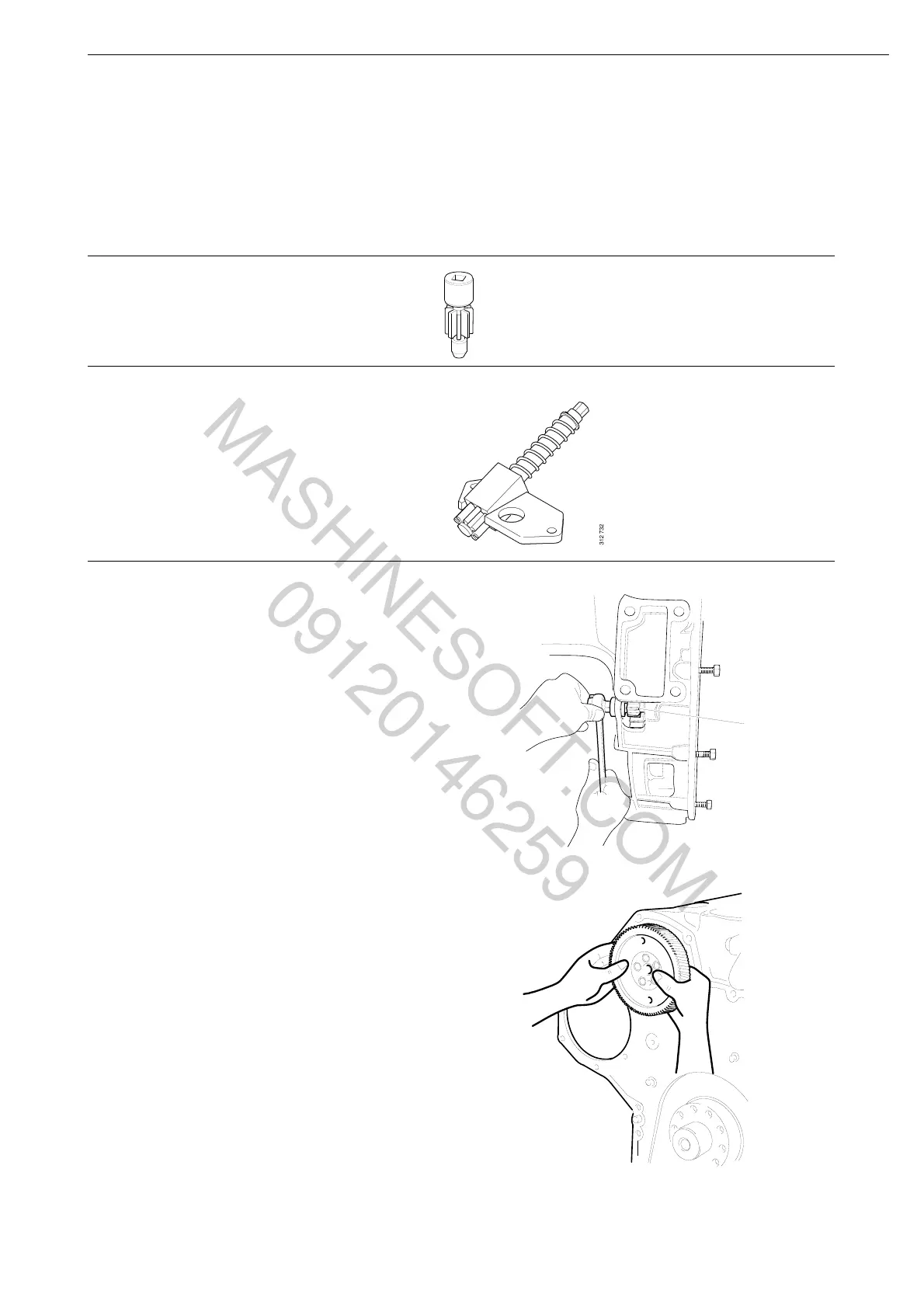

Number Denomination Illustration Tool board
99 309 Flywheel rotation tool (from
below)
D5
99 109 Flywheel rotation tool (from
above)
-
100330
99 309
01_1388
01 1363
Timing gear
