Scania DC11 - Removing the Fan Coupling; Fitting the Fan Coupling

76
©
Scania CV AB 2011, Sweden
01:03-02
Fan coupling
The following description applies to an old design of fan coupling.
Applies up to and including engine serial number:
Scania Södertälje: 5719193
Scania Zwolle: 5719106
Scania Angers: 5718890
The new design is described in the section Front crankshaft seal.
Removing the fan coupling
1 Remove the fan and belt.
2 Remove the oil sump.
3 Undo the screw for the pulley.
4 Remove the fan bearing housing with the
pulley.
Fitting the fan coupling
Tightening torques
1 Fit the fan bearing housing onto the engine.
2 Screw in the screw for the pulley. Tighten
the screw to 290 Nm.
3 Fit the oil sump.
4 Fit the belt and fan.
Screw for pulley 290 Nm
Bolts for oil sump with unmachined surface 32 Nm
Bolts for oil sump with machined surface 26 Nm

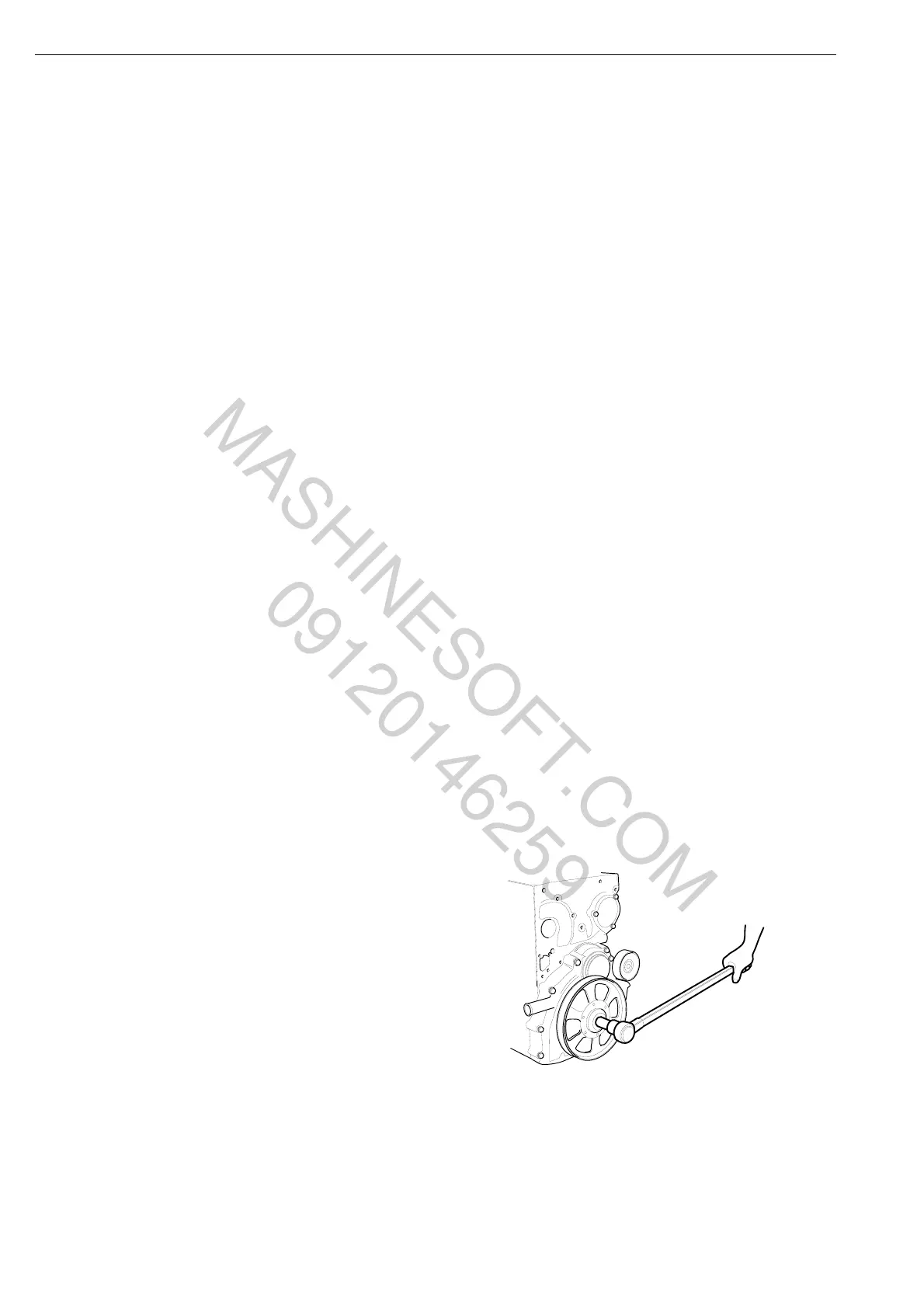

01_1383
290 Nm
Fan coupling
