Scania DC11 - Height; Fitting the Cylinder Liners

56
©
Scania CV AB 2011, Sweden
01:03-02
Fitting the cylinder liners
1 Check the cylinder liner height according to
the section "Measuring the cylinder liner
height".
2 Make sure the interior of the cylinder block
is clean. Clean the O-ring surfaces.
3 Carefully check the cylinder liners, both
new and old, for cracks that can arise during
transport or careless handling.
Tap the liner carefully with a metal object. It
should give a clear metallic ring if it is
intact. If it is cracked, it will sound
"cracked".
4 Lubricate the sealing ring to be located in
the cylinder liner with glycerol, part number
584 084, and fit it.
5 Lubricate the lower guide surface on the
cylinder liner.
6 Turn the liner with the stamped cylinder
number facing forward and carefully tap it
down with a rubber mallet.

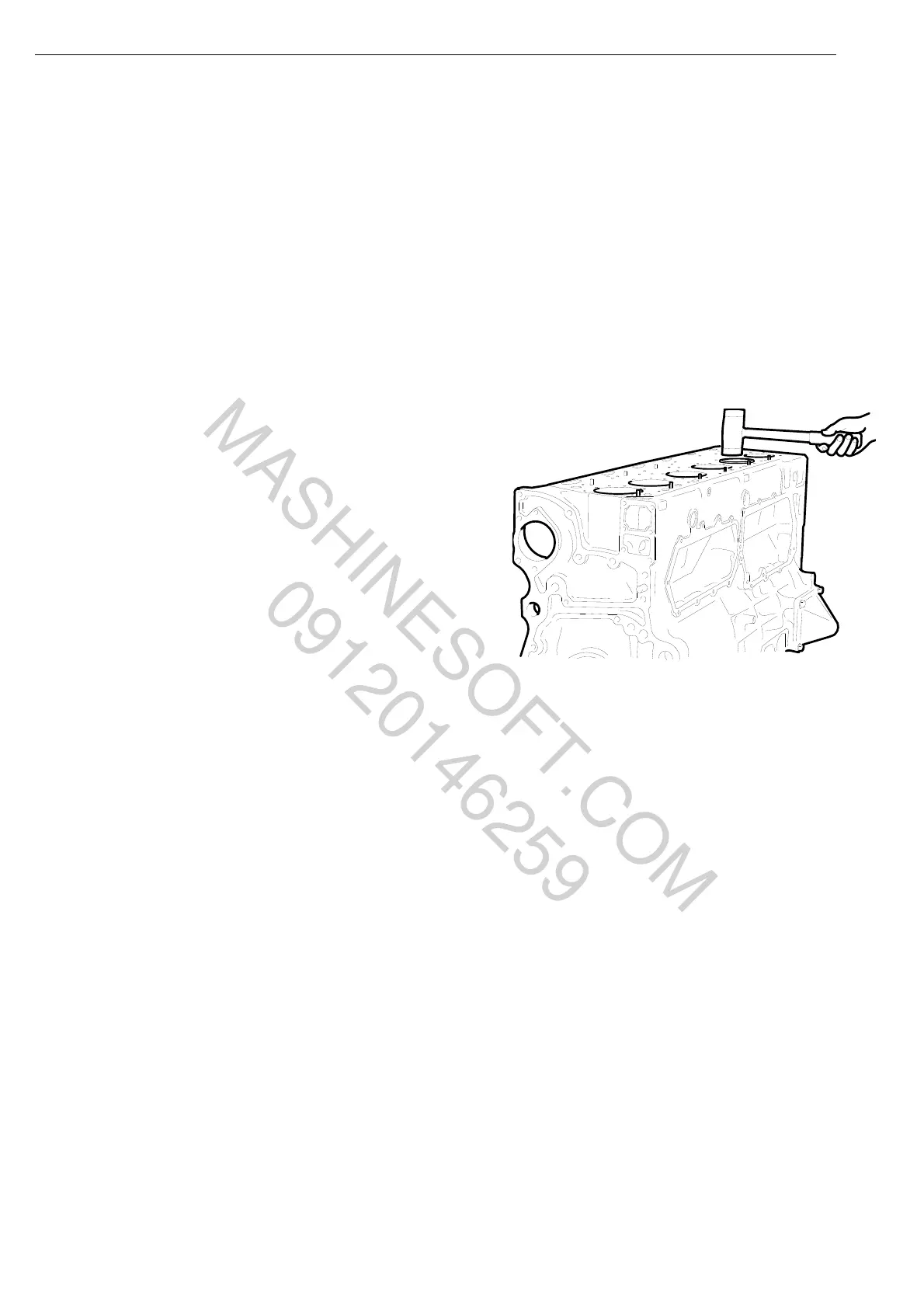

01_1354
Cylinder block
