Scania DC11 - Page 57

01:03-02
©
Scania CV AB 2011, Sweden
57
Measuring the cylinder liner height
Specifications
Cylinder liner height above cylinder block 0.20 - 0.30 mm
Maximum permitted height difference on one and the
same liner between measurements made at two
diametrically opposite points
0.02 mm

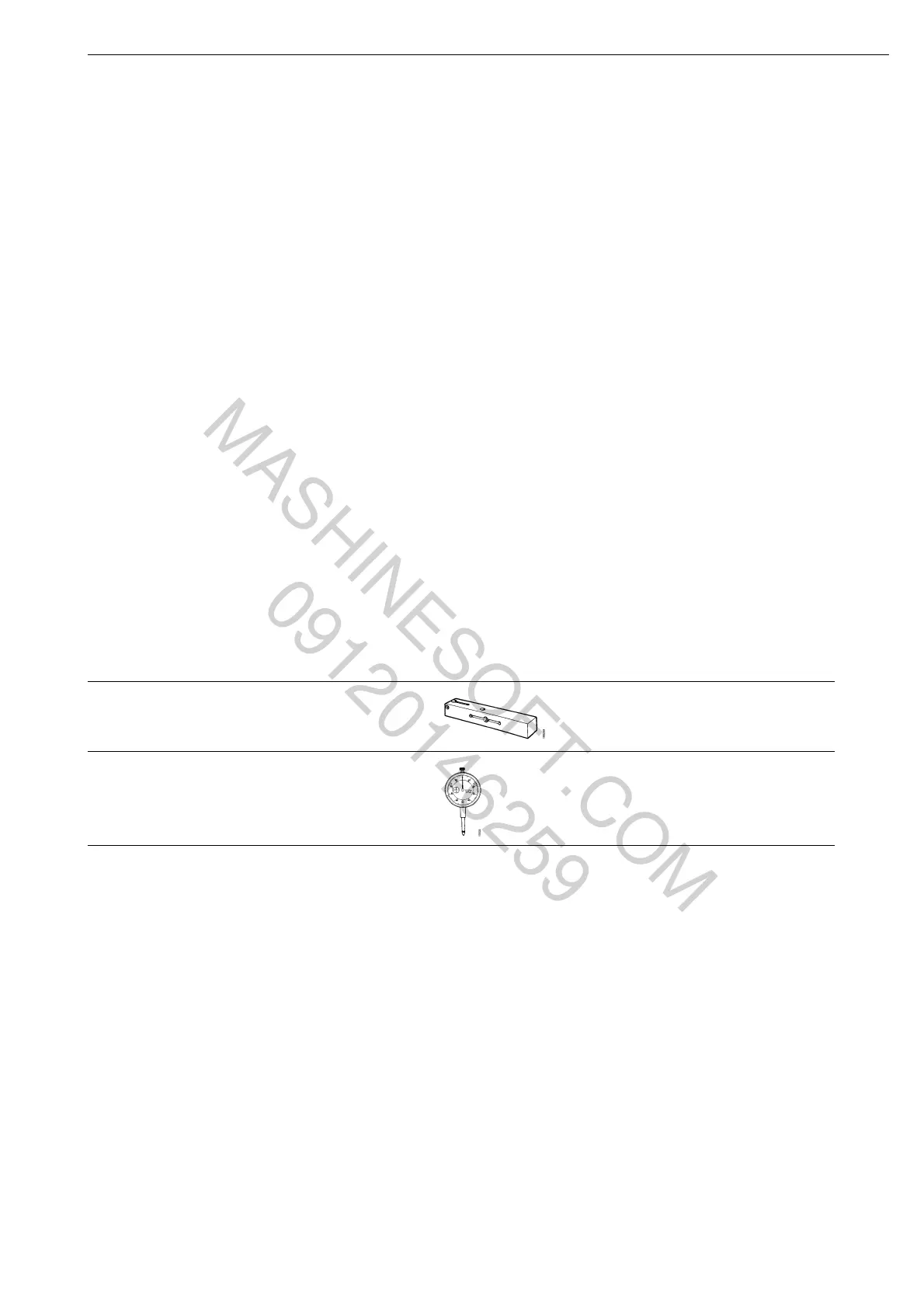

Special tools
Number Denomination Illustration Tool board
87 198 Frame gauge D2
98 075 Dial gauge D2
Cylinder block
