Scania DC11 - Page 58

58
©
Scania CV AB 2011, Sweden
01:03-02
1 Thoroughly clean the cylinder block liner
shelf, the face around the cylinder, the
cylinder liner shelf and the upper face of the
cylinder liner.
2 Fit the cylinder liner without O-rings and
push down using two tension lugs 98 515.
Tighten the bolts to 20 Nm.
IMPORTANT! The tension lug bolts must not
be tightened more than 20 Nm. Otherwise the
cylinder liner may be damaged.

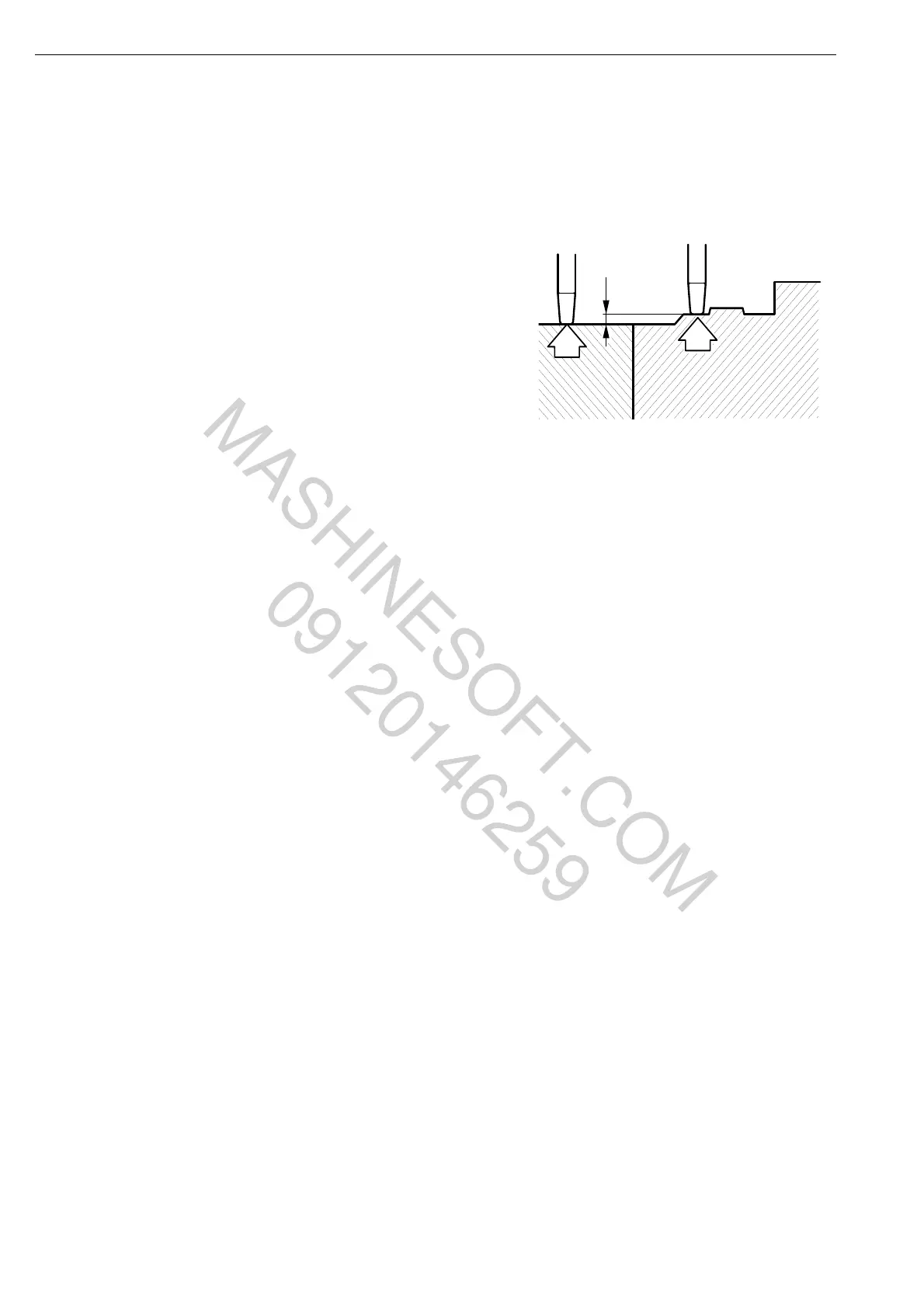

3 Place frame gauge 87 198 with dial gauge
98 075 on the liner and zero the dial gauge
to the liner (A). Slide the tip of the dial
gauge over to the cylinder block (B) and
measure the height of the liner (A-B) as
illustrated. Measure each liner at two
diametrically opposite points.
A Measured surface on the cylinder liner
B Measured surface on the cylinder block
C Tip of dial gauge
D Height of the cylinder liner D = A-B
A
B
C
D
C
100024
4 The cylinder liner must be slightly above
the face of the cylinder block.
5 Height of cylinder liner D (= A-B) over the
cylinder block after machining must be:
0.20-0.30 mm.
6 The difference between two diametrically
opposite points on the same cylinder liner
may be max. 0.02 mm.
Cylinder block
