Scania DC11 - Renewing the Injector Sleeves

01:03-02
©
Scania CV AB 2011, Sweden
49
Renewing the injector sleeves
The following applies to engines with an
injection pump.

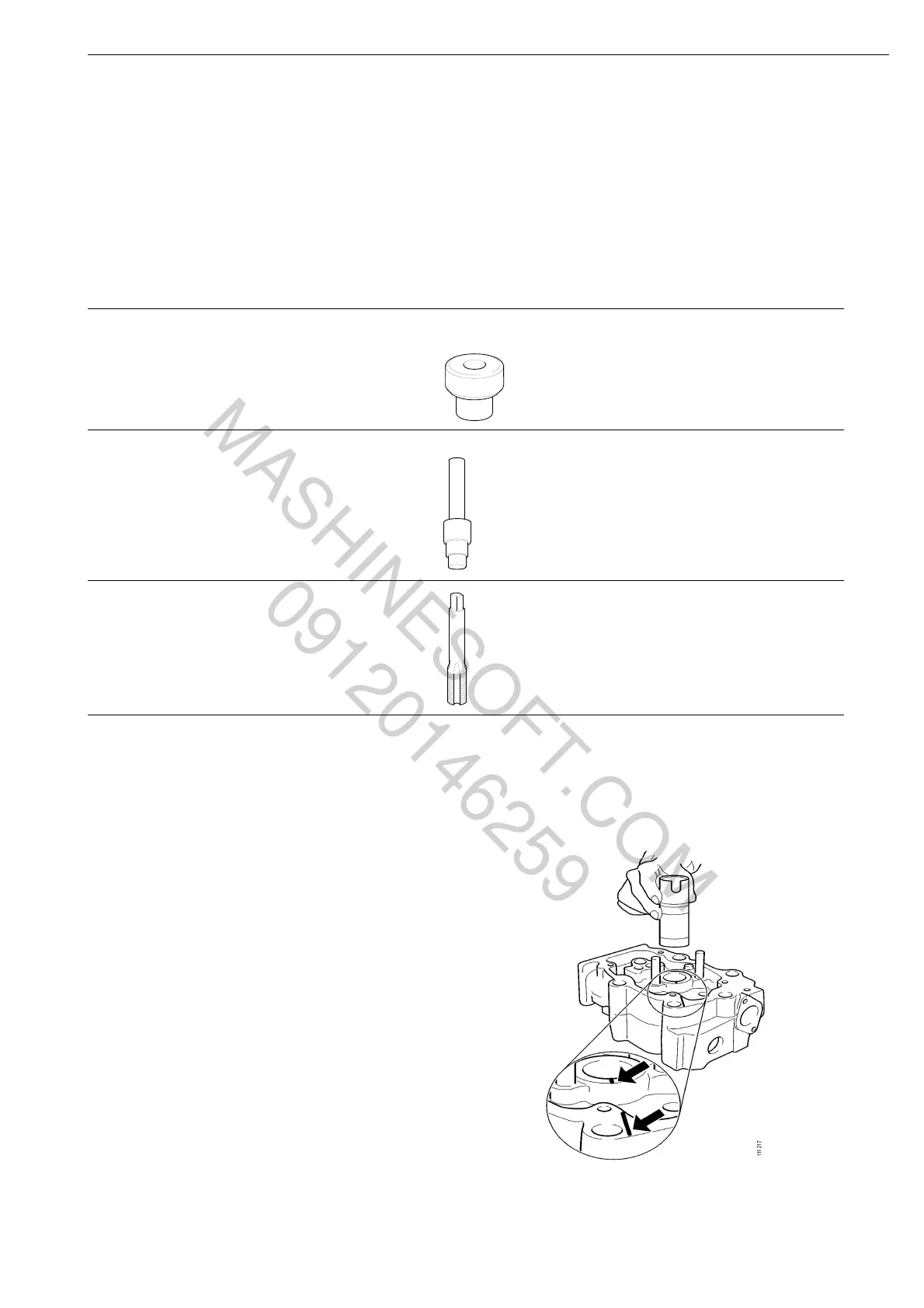

Special tools
The cylinder head must be removed when
renewing the injector sleeve. The valves do not
need removing. The illustrations show the
cylinder head with valves removed to
demonstrate clearly the work described.
IMPORTANT! Mark the position of the groove
on the cylinder head sleeve according to the
illustration. The new sleeve must be in the same
position to allow the return and leak-off pipe to
be free.
Number Denomination Illustration Tool board
99 394 Guide D2-A1
99 381 Drift D2-A1
588 221 Pilot tap
99 394
113 219
99 381
110 863
113 297
Cylinder head
