Scania DC11 - Valve Clearance Adjustment

01:03-02
©
Scania CV AB 2011, Sweden
35
Engines with PDE unit injectors:

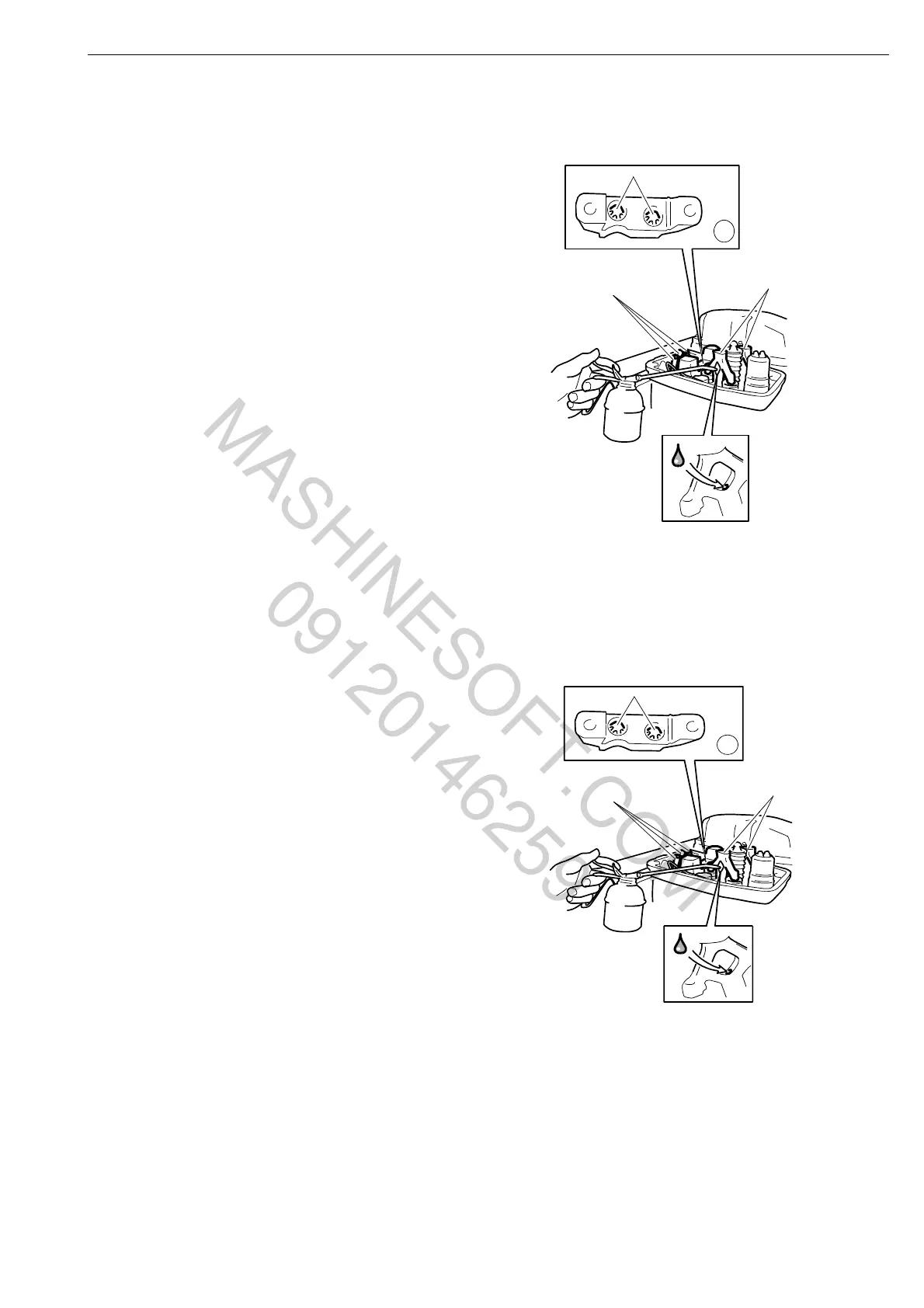

1 Fit the unit injector according to the section
Fitting the unit injector, steps 1-5 in booklet
03:04-01.
2 Fit the pushrods.
3 Fit the bearing bracket and tighten the bolts
to 40 Nm + 60°.
4 Fit the valve bridges.
IMPORTANT! Lubricate the valve bridges with
engine oil.
5 Continue according to the section Fitting the
unit injector, steps 6-14 in booklet 03:04-01.
4
3
2
309 329
Engines with HPI unit injectors:
1 Fit the pushrods.
2 Fit the bearing bracket and tighten the bolts
to 40
Nm + 60°.
3 Fit the unit injector and rocker arm shaft
according to the section Fitting the unit
injector, steps 1-8 in booklet 03:04-04.
4 Fit the valve bridges.
IMPORTANT! Lubricate the valve bridges with
engine oil.
5 Refit the upper rocker cover and torque
tighten the bolts to 18 Nm.
4
3
2
309 329
Cylinder head
