Scania DC11 - Page 86

86
©
Scania CV AB 2011, Sweden
01:03-02
Crank mechanism

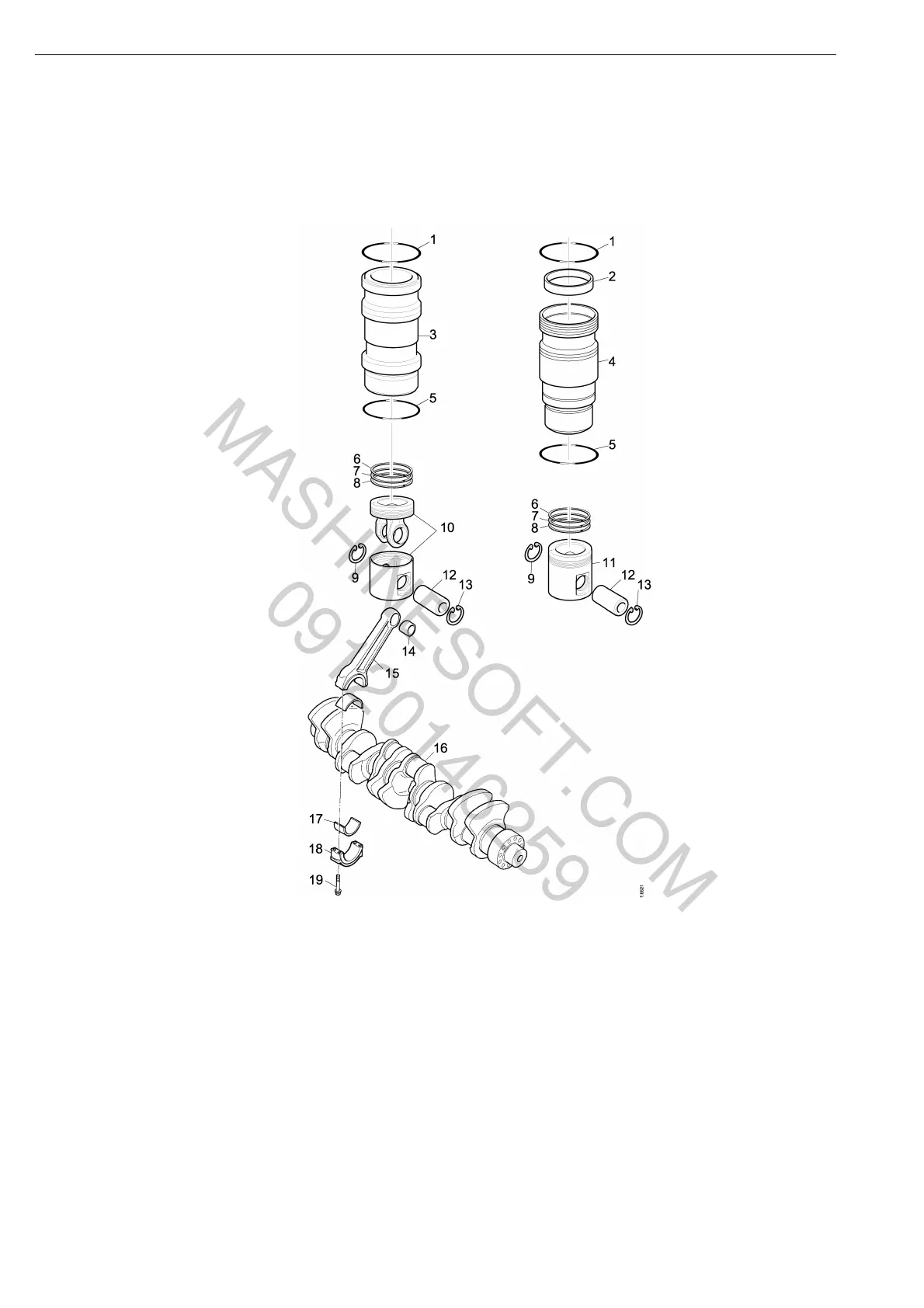

Exploded view
1 O-ring
2 Scraper ring
3 Cylinder liner for steel piston
4 Cylinder liner for aluminium piston
5 O-ring
6 Compression ring
7 Compression ring
8 Oil scraper ring
9 Circlip
10 Steel piston
11 Aluminium piston
12 Gudgeon pin
13 Circlip
14 Bearing bush
15 Connecting rod
16 Crankshaft
17 Bearing shell
18 Bearing cap
19 Flange screw
Crank mechanism
