Scania DC11 - Page 131

01:03-02
©
Scania CV AB 2011, Sweden
131

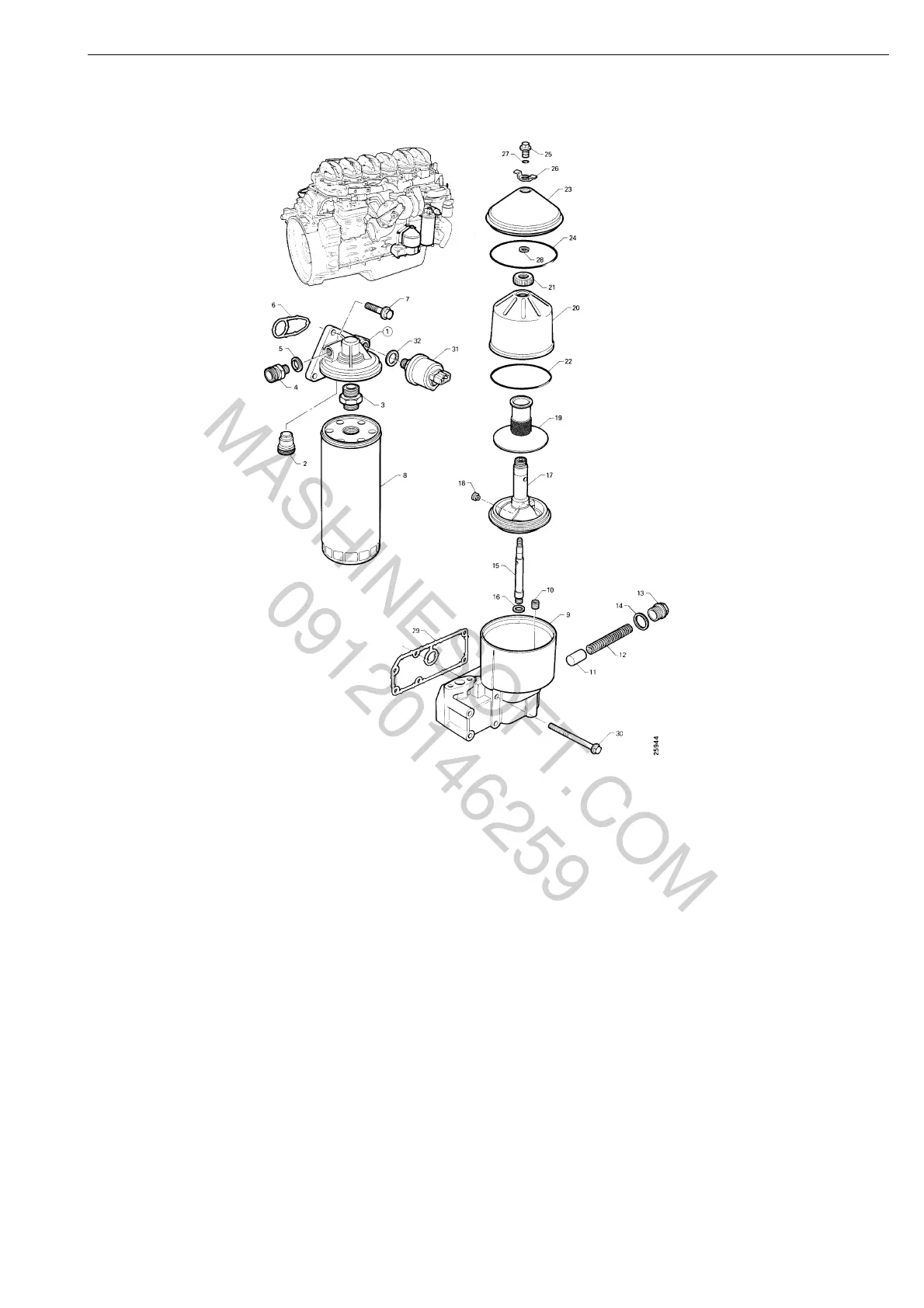

Exploded view
1 Filter head
2 Overflow valve
3 Union
4 Straight union
5 Sealing ring
6 Gasket
7 Flange screw
8 Oil filter
9 Housing
10 Plug
11 Piston
12 Spring
13 Plug
14 Gasket
15 Shaft
16 Washer
17 Rotor
18 Nozzle
19 Strainer
20 Rotor cover
21 Nut
22 O-ring
23 Cover
24 O-ring
25 Lock nut
26 Lifting eye
27 O-ring
28 Retaining ring
29 Gasket
30 Flange screw
31 Oil pressure sensor
32 Gasket
Lubrication system
