Scania DC11 - Air Filter Insert Service; Filter Insert Cleaning or Replacement; Safety Cartridge Replacement

01:03-02
©
Scania CV AB 2011, Sweden
25

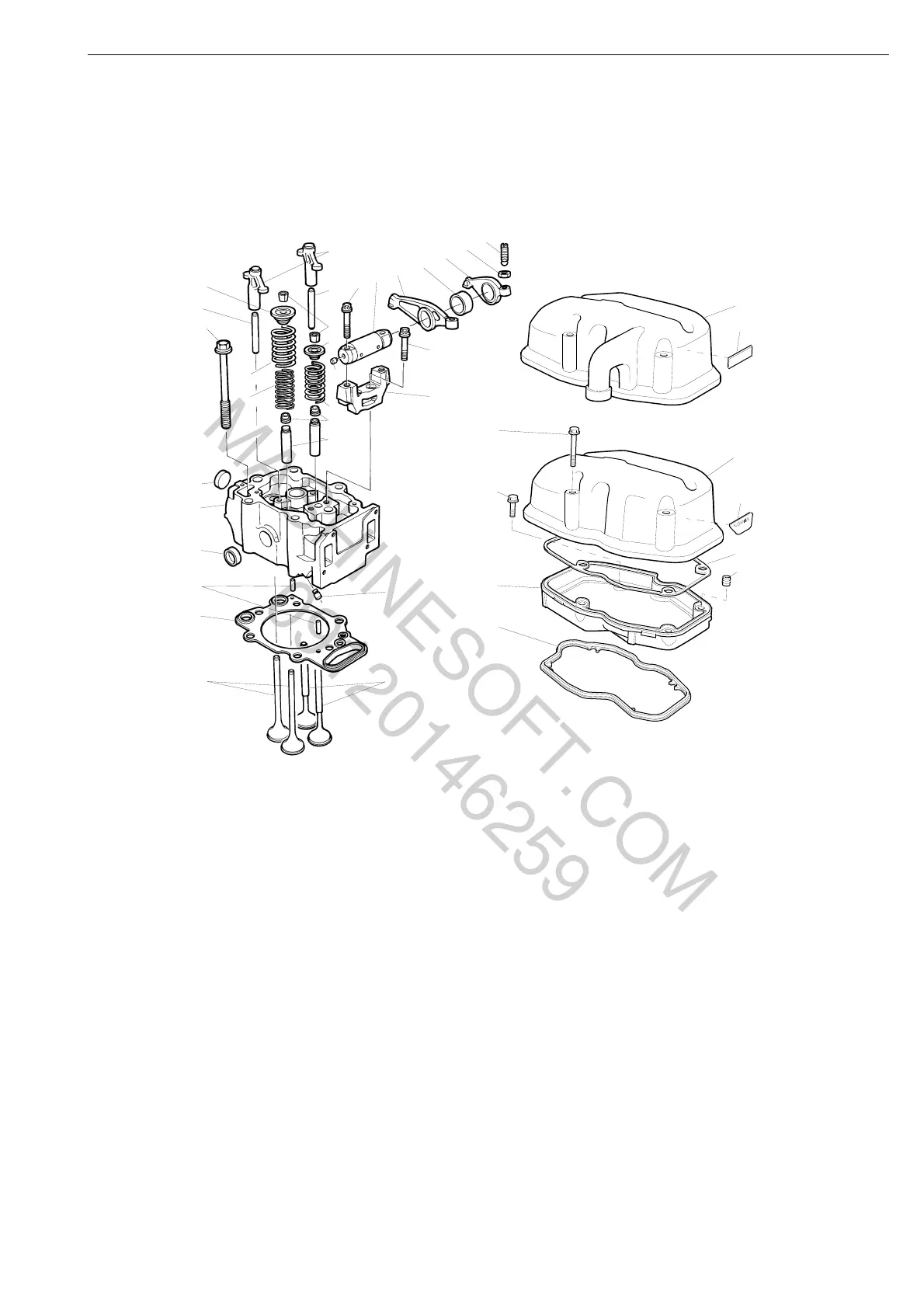

Cylinder head
Exploded view
01 1401
22
20
24
27
23
26
25
22
19
17
5
16
11
21
10
8
4
14
13
15
5
18
2
1
2
6
7
12
3
9
33
37
32
36
34
29
35
31
28
30
1 Cylinder head
2 Core plug
3 Rivet plug
4 Valve guide
5 Pin
6 Pin
7 Cylinder head gasket
8 Valve stem seal
9 Intake valve
10 Valve spring
11 Valve spring collar
12 Exhaust valve
13 Valve spring, outer
14 Valve spring, inner
15 Valve spring collar
16 Split collet
17 Valve bridge
18 Bolt
19 Bearing bracket
20 Shaft
21 Rivet plug
22 Tight-fit screw
23 Rocker arm
24 Rocker arm
25 Adjusting screw
26 Nut
27 Spacing sleeve
28 Rocker cover, lower
29 Thread insert
30 Rocker cover gasket, lower
31 Flange screw
32 Rocker cover, upper
33 Rocker cover, upper, on
cylinder 1
34 Rocker cover gasket, upper
35 Flange screw
36 Instruction plate
37 Emission plate
Cylinder head
