01:03-02

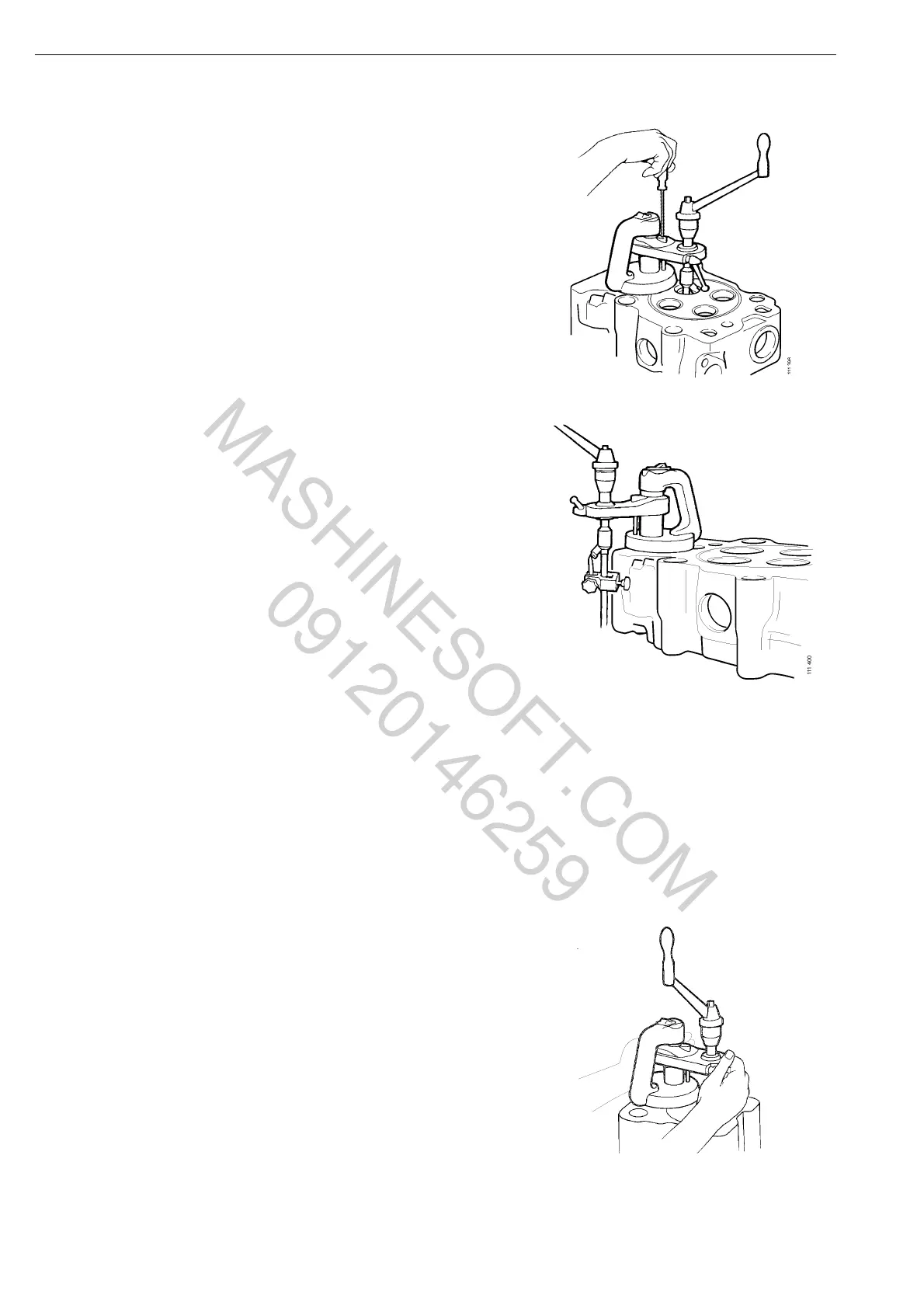

4 Release the quick-release catch and move
the pivot plate to the upper position with the
adjusting screw.
5 Set up the dial on the cutter adjuster using a
valve.
6 Adjust the cutter. Diameter 37.9 mm or
39.8 mm, refer to Valve seat insert,
machining measurement.
7 Turn off the magnet (position 2). Insert the
guide spindle into the valve bush. Adjust the
pivot plate so that the distance between the
cutter and the valve seat is approx. 1
mm.
Centre the tool precisely.
01_1233
8 Turn on the magnet (position 1).
9 Lock the quick-release catch. Make sure the
crank can be turned easily. If not, redo the
centering.
Cylinder head
