01:03-02
Note: When working with 175 mm crankshaft
seal: The crankshaft seal must be fitted dry and
on no account must it be lubricated. The sleeve
in the seal must be left in place. Do not touch the
sealing lip with your fingers.
Note: When working with 185 mm crankshaft
seal: The crankshaft seal must be fitted dry and
on no account must it be lubricated. Remove the
plastic ring protecting the sealing lip. Do not
touch the sealing lip with your fingers.

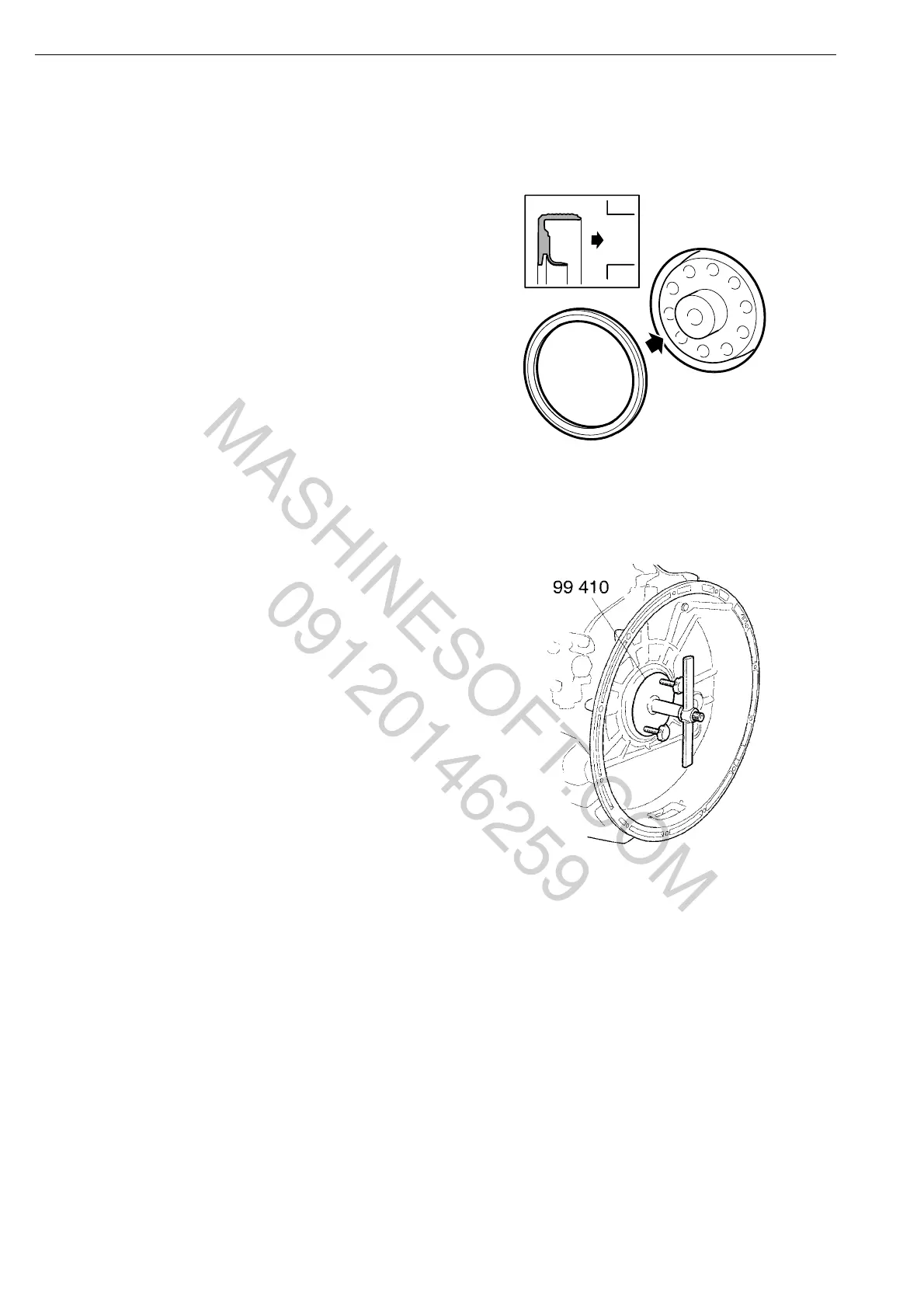

3 When working with 175 mm crankshaft
seal: Fit a new crankshaft seal using tool
99 410. Place the crankshaft seal on the tool
and fasten the tool with the bolts.
When working with 185 mm crankshaft
seal: Fit a new crankshaft seal using tools
99 058 and 99 410. Place the crankshaft seal
on 99 058 and secure 99 410 to the
crankshaft.
4 Turn the tool clockwise until it stops in
order to attain the correct crankshaft seal
position.
Note: When working with 185 mm crankshaft
seal: The edge of drift 99 058 will stop against
the recess in the flywheel housing.
315 234
116 612
5 Fit the flywheel according to the section
Fitting the flywheel.
