1 Remove all old sealing compound on the
sealing surfaces of the flywheel housing and
timing gear plate. Clean off any oil and
grease using an alcohol based cleaning
agent.
IMPORTANT! Clean thoroughly, as the sealing
surfaces must be completely free of grease.
2 Apply sealant to the flywheel housing using
a nozzle. The width of the bead should be

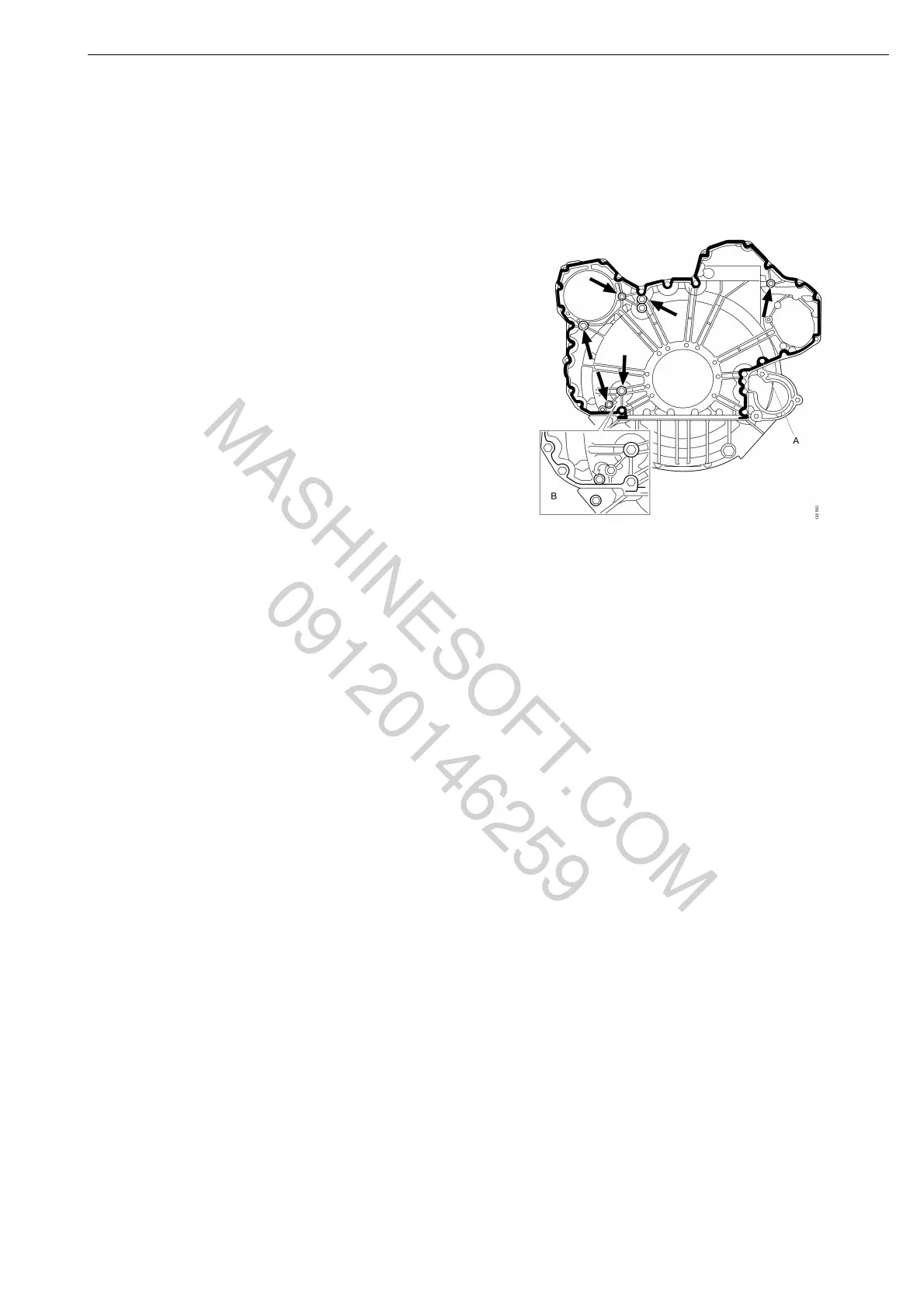

between 0.8 and 1.2 mm. Follow the pattern
as illustrated.
Apply sealant to the flywheel housing on the side
towards the timing gear plate.
Apply sealant around the bolt holes marked with
arrows.
From engine serial number 5 747 863 onwards,
bolt A has been added and bolt B has been
moved.
IMPORTANT! Ensure that you apply sealant
inside the bolt holes, but without allowing
sealant into the crankcase. The sealant may
block channels and nozzles. This is particularly
important to bear in mind around oil ways,
where the flow of oil to the air compressor or
injection pump can be blocked.
IMPORTANT! Assembly must be completed
within 25
minutes of starting to apply the
sealant.
3 Fit the flywheel housing against the timing
gear plate.
Note: The bolts are of various sizes and lengths.
Ensure that they are fitted in the correct places.
