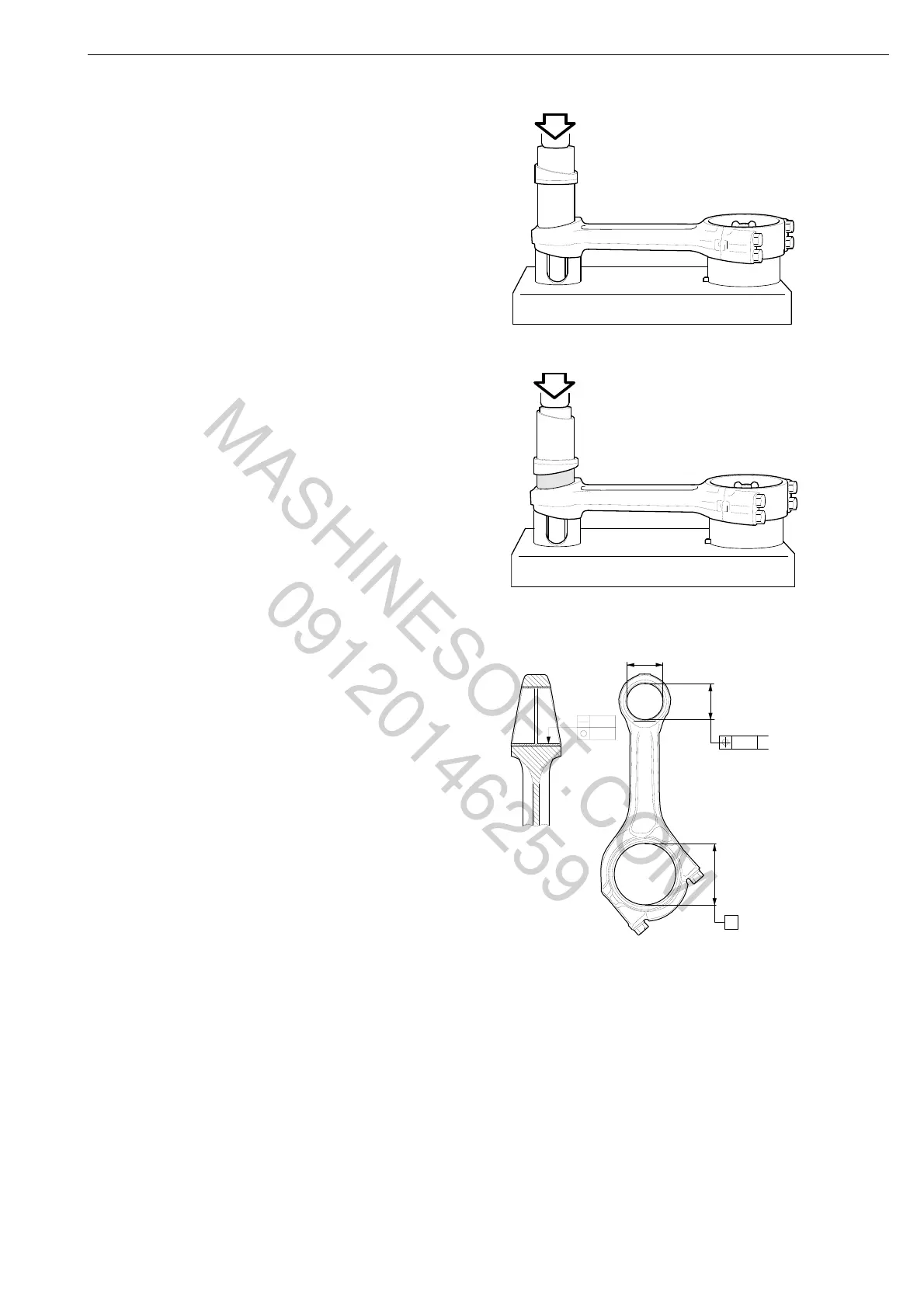

1 Place the connecting rod on the pressplate
so that the wide end of the connecting rod
rests on support D. Turn the press drift with
the smaller diameter against the bearing
bush and press it out.
115 528
2 Turn the press drift and mount a new
bearing bush onto it. Press in the bearing
bush.
115 529
After pressing in a new bearing bush, it must be
finish-turned. This requires special equipment.
Measurements as illustrated.
Diameter, d = 54.030-54.043 mm.
Surface quality = 0.6 Ra.
d
0.008
A
A
0.007
0.008
115 537
Crank mechanism
