Enter Parameters
All important rated and calibration data are shown in
the supplied Spec Sheet.
In addition, see hints given below. We recommend to
read through all parameters and to select the best
possible setting.
Parameter Block A
Dialog language and display unit.
Parameter values are automatically converted if the
unit is changed.
Parameter Block B
Characteristic value vs B 04 is important for
calibration. Adjust units to nominal feed rate. To
ensure stable display, resolution of feed rate display
(B 01) should not exceed 4...5 decimals.
Display format of totalizing counters should not
exceed 6...7 digits. The decimal point is one digit.
Example:
Nominal feed rate 10 t/h
Unit B 07 —-.—- t
Max. Wert 999.999 t
Max. counter run time =
Then counter is reset.
If an external totalizing counter is connected, output
frequency must not exceed 10 Hz (see Parameters B
07, 08 and Service Displays Z0 and ZE).
Parameter Block C
Ensure correct input of calibration and evaluation data
as shown in relevant Spec Sheet. Measure effective
belt length and inclination at site.
For definition of belt length, see Chapter DETAILS.
Enter belt inclination only if load cells are arranged
right-angled to belt. If load cells are mounted
vertically, the effective angle is 0. For definition of
check weight, see Data Flow Diagrams in Chapter
DETAILS.

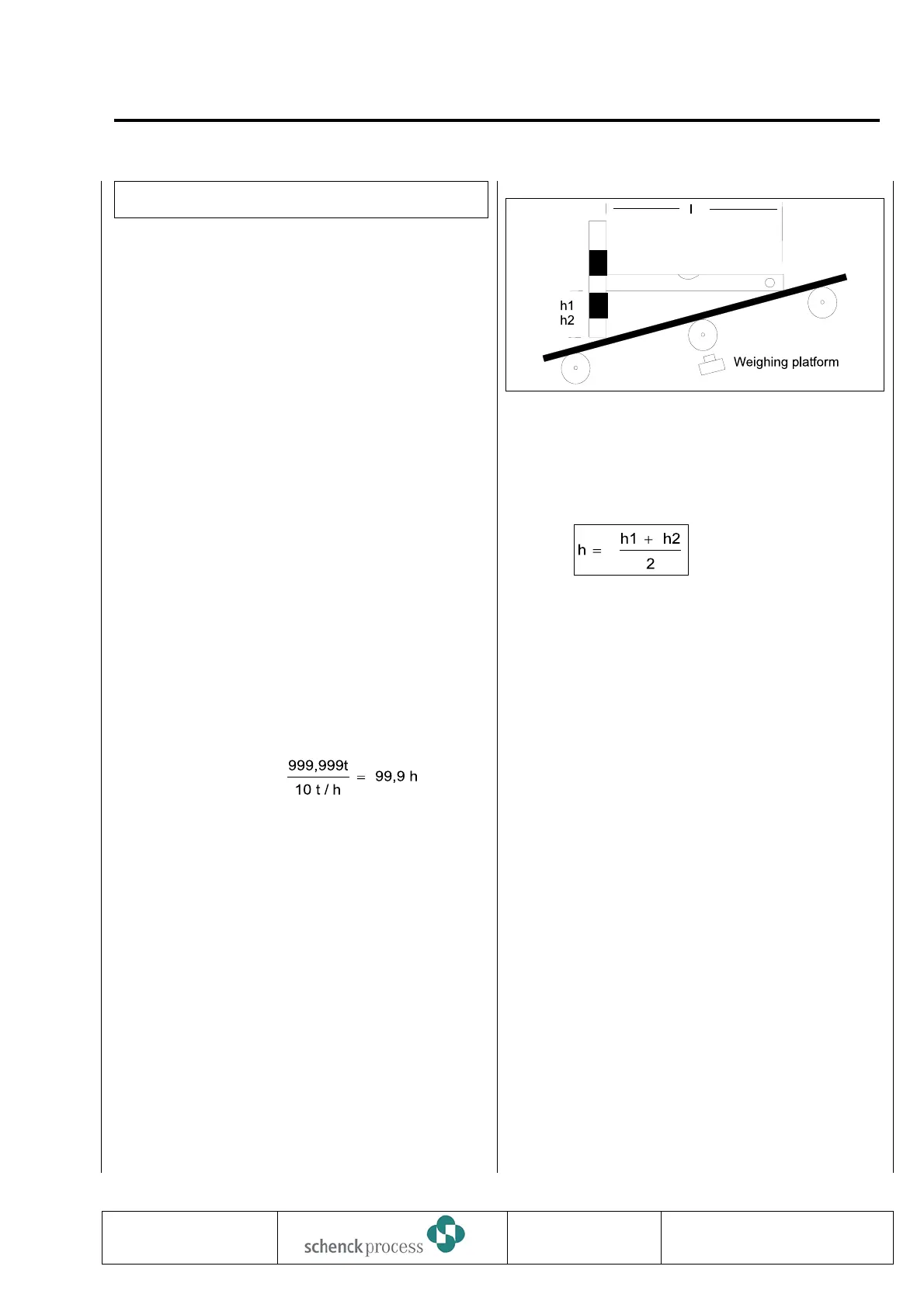

Determine belt inclination by using spirit level and
measuring element. Repeat measurement with spirit
level turned and calculate mean value of height h.
Angle C 07: a = tan (h/l)
Angles < 20 degr.: a = 55 h/l
Parameter Block D
Calibration results need not be entered.
During initial calibration, range correction D 02 should
be set to 1.
Check to see if, with rated data entered, load cell
rated capacity is not exceeded.
F=q*L*H*cos(a)
q = nominal belt load D 01 in kg/m
L = eff. platform length C 05 in m
H = lever ration C 06
a = angle C 07 in degr.
F = force on load cell in kg
F should be the total of load cell rated capacities C
04. If not, load cells are too small for the requested
nominal feed rate.
0837
INTECONT PLUS VBW
Commissioning
BV-H2214 GB 87
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
