f Start function.
N Abort function at any time.
Program running:
Upper display: residual run time in % of total run time
Lower display : continuously meaned tare in % of
nominal belt load
Program complete:
Upper display : deviation of tare value from previous
taring result
in % of nominal belt load
dev =+:tarehasincreased
dev = - : tare has decreased
Lower display : mean value of total tare
in % of nominal belt load
f Accept taring result and enter into
Parameter D 04.
Set tare correction (D05) to zero.
N Reject result, i.e. scale is not tared.
Special Messages:
(1) START if belt is not running
(2) ABORTED
Note:
(1) Related to nominal belt load, tare value can
exceed 100%.
(2) If deviation (dev) exceeds 20%, check scale for
mechanical faults, e.g. jammed material
particles.
(3) If BIC is active (M05 = YES), BIC tare vectors
are initialized along with taring program.
Weight Check CW
This program lets you check the INTECONT
measuring range.
Load weighing platform with a known check weight
and acquire platform load mean value over one or
multiple integer belt circuits.
INTECONT compares the result with defined setpoint
and displays value. Automatic correction does not
take place.
Prerequisites : (1) Tare or zero set
(2) Enter check weight into
Parameter C 08.
Select check weight between
30...100 % of nominal platform
load Q0.
Q0 = q0 * Leff
q0 = nominal belt load
Parameter D 01
Leff = eff. platform length
Parameter C 05
(3) Apply check weight in proper
location.
(4) Select batching mode.
(5) Start conveyor belt.
Corresponding hint is output
automatically.
Sequence:
Gf Function distributor, calibrating
functions, password
(see “Calibrating Functions”).
TU Scroll CW: Weight Check
function into lower display field.
f Start function.
N Abort function at any time.
0837
VBW INTECONT PLUS
Setting Programs
BV-H2214 GB 36
Technische
Redaktion PDE-RD
Transmission to third parties and reproduction of
this documentation are not permitted. Schenck
Process GmbH reserves all rights of ownership
and copyrights.

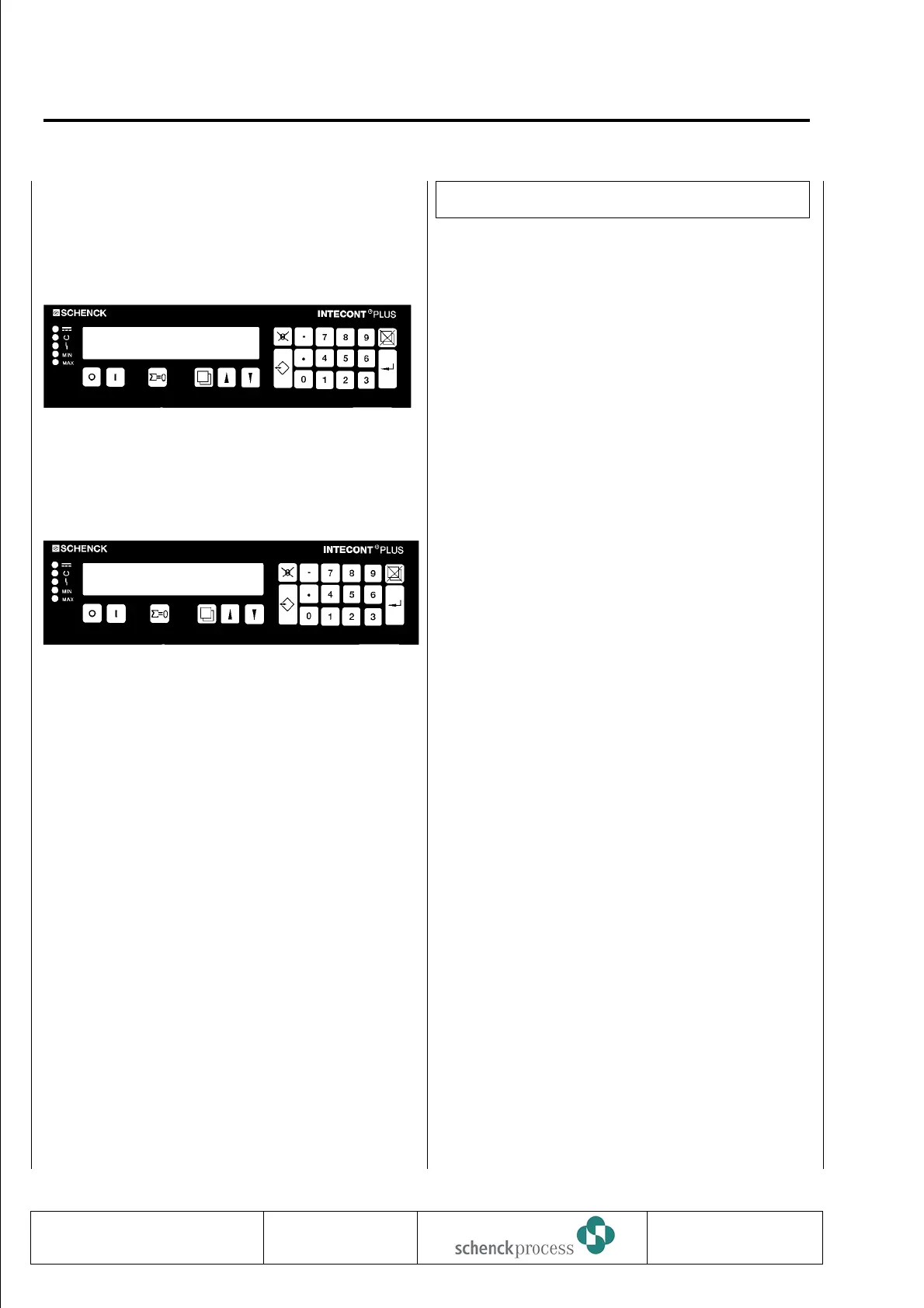

TW: 9 0. 2 %
Tare 52.35
>. Dev. 2.45 %
Tare 53.20
