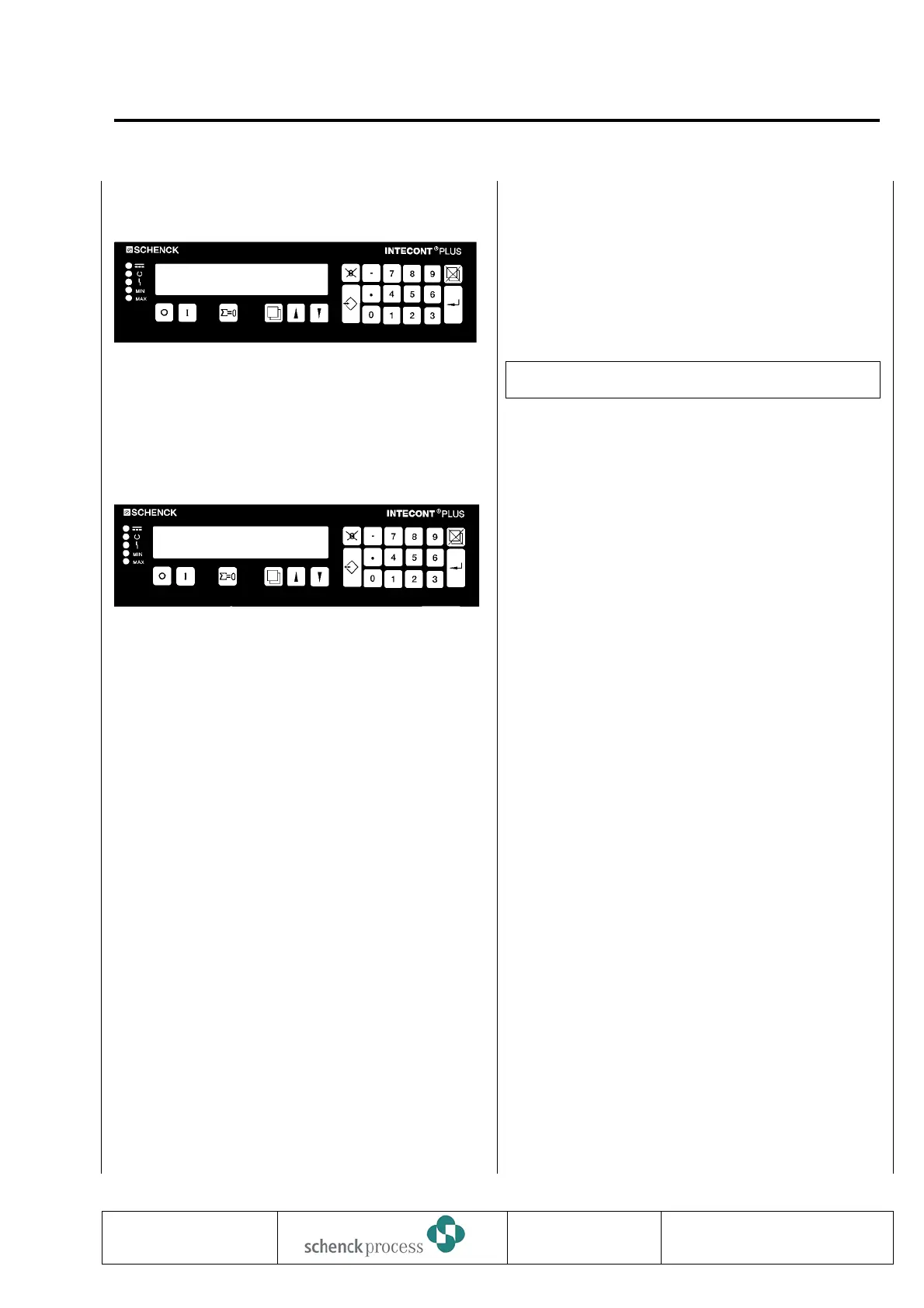

Program running:
Upper display : residual run time in seconds
Lower display : added speed transducer pulses
Program complete:
Upper display : belt speed mean value over total run
time
Lower display : Pulses/belt circuit total
f Accept result and enter into
Parameter D 06.
N Reject result.
The sequence is the same if no speed measurement
is provided.
Special Messages:
(1) START if belt is not running
(2) ABORTED
Attention!
If a belt circuit sensor is present (N03 = YES),
program sequence slightly differs.
Running
message : E-PROG active (lower display)
Complete
message : ... - I/B
value flickers upon every belt circuit.
Operation : as described above
Error message : If sensor is improperly recognized
(sensor pulses measured do not
correspond to parameter setting),
message “Sensor Error” is output
and setting program aborts. For
troubleshooting, see
“Commissioning/Belt Run
Monitoring” item.
Tare TW
The taring program acquires the belt weigher’s zero
point error over one or multiple integer belt circuits
and uses value to correct current measuring result in
normal mode.
On principle, taring program is identical with zero set
-
ting program.
Tare : acquire basic tare (weight of
mechanical system, conveyor belt,
etc.) upon commissioning, service
and maintenance.
Set to zero : acquire zero point deviation during
operation, e.g. contamination.
Unlike the zero setting program, the correction
amount of the taring program is unlimited.
After taring, the admissible correction amount of the
zeroing program relates to the new reference value.
Prerequisites : (1) Conveyor belt totally unloaded.
Control prefeeder using the
START/STOP Feeder function.
(2) Clean mechanical scale system
in weighing area.
Normal deposits immediately
recurring during operation need
not be removed.
(3) Deselect batching mode.
(4) Ensure conveyor belt is running.
Corresponding hint is output
automatically.
Sequence:
Gf Function distributor, calibrating
functions, password
(see “Calibrating Functions”)
TU Scroll TW: Tare
function into lower display field.
0837
INTECONT PLUS VBW
Setting Programs
BV-H2214 GB 35
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
>. LB : 5.6 s
1500 Imp
>. LB: v 0.095 m/s
451251 I/B
