Schenck process Intecont Plus Belt Weigher User Manual

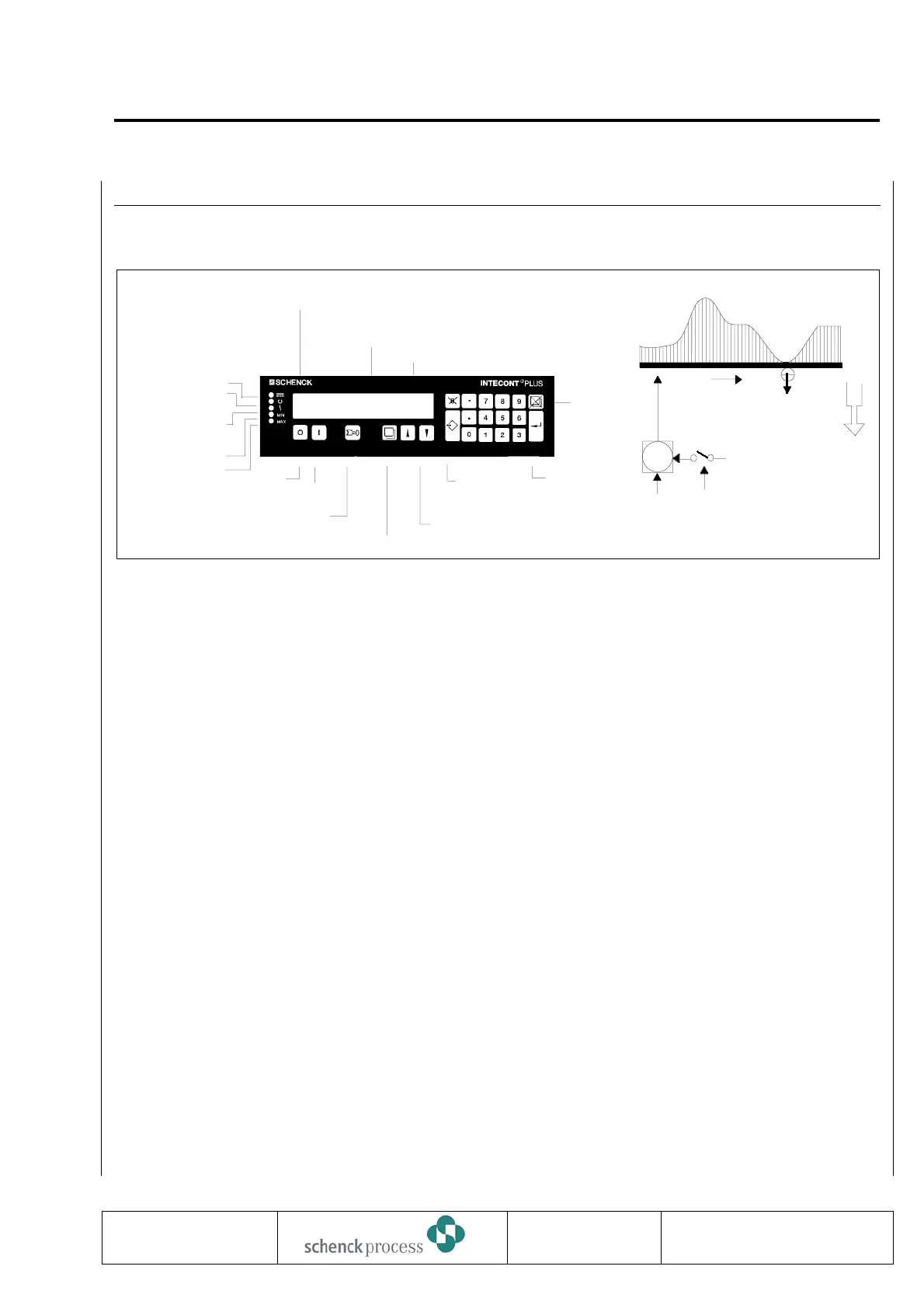

3 Control Overview
gB Start/Stop if preselected
U
T
SCROLL Select lower display line and functions.
(1) Counters Z2, Z3 (4) Belt load Q
(2) Feed rate I (5) Belt speed v
(3) Feed rate Ir in %
i RESET Reset counter(s)
(1) Enter number of desired counter (1 or 2).
(2) Use ENT key to acknowledge.
(3) Use ESCAPE key to abort input.
(4) Use DELETE key to delete faulty digits.
G FUNCTION Call function distributor and event messages
(1) SCROLL keys let you select desired function.
If an event is available, “Display Event” function is preselected.
(2) ENTER key lets you activate function.
(3) SCROLL keys let you view available event messages one after the other.
(4) ESCAPE key lets you return to normal displays.
O DELETE Acknowledge event messages, delete inputs.
N ESCAPE Abort function and return to normal displays.
f ENTER Acknowledge input, e.g. setpoint,
start functions, e.g. Display Events (see “FUNCTION”).
P DATA Prepare input, e.g. parameters.
0837
INTECONT PLUS VBW
Control Overview
BV-H2214 GB 19
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
{
L2
H2
H1
H3
L3
C1
L4
M
L1
S2
POWER ON
CPU OK
o Z1 = 1500 kg
-- I = 100 kg/h
RUNNING MESSSAGE, OPERATING STATUS
EVENT MESSAGES
READY
RESET
COUNTER
FUNCTION DISTRIBUTOR
PRESELECT LOWER
DISPLAY
START
FUNCTION
PREPARE
ENTRY
Z1 = FEED AMOUNT
I = FEED RATE
ACKNOWLEDGE
ABORT
FUNCTION
EVENT MESSAGES
STOP
START
ALARM
MIN
MAX
kg/h
m/s
kg/m
