Weighing Platforms

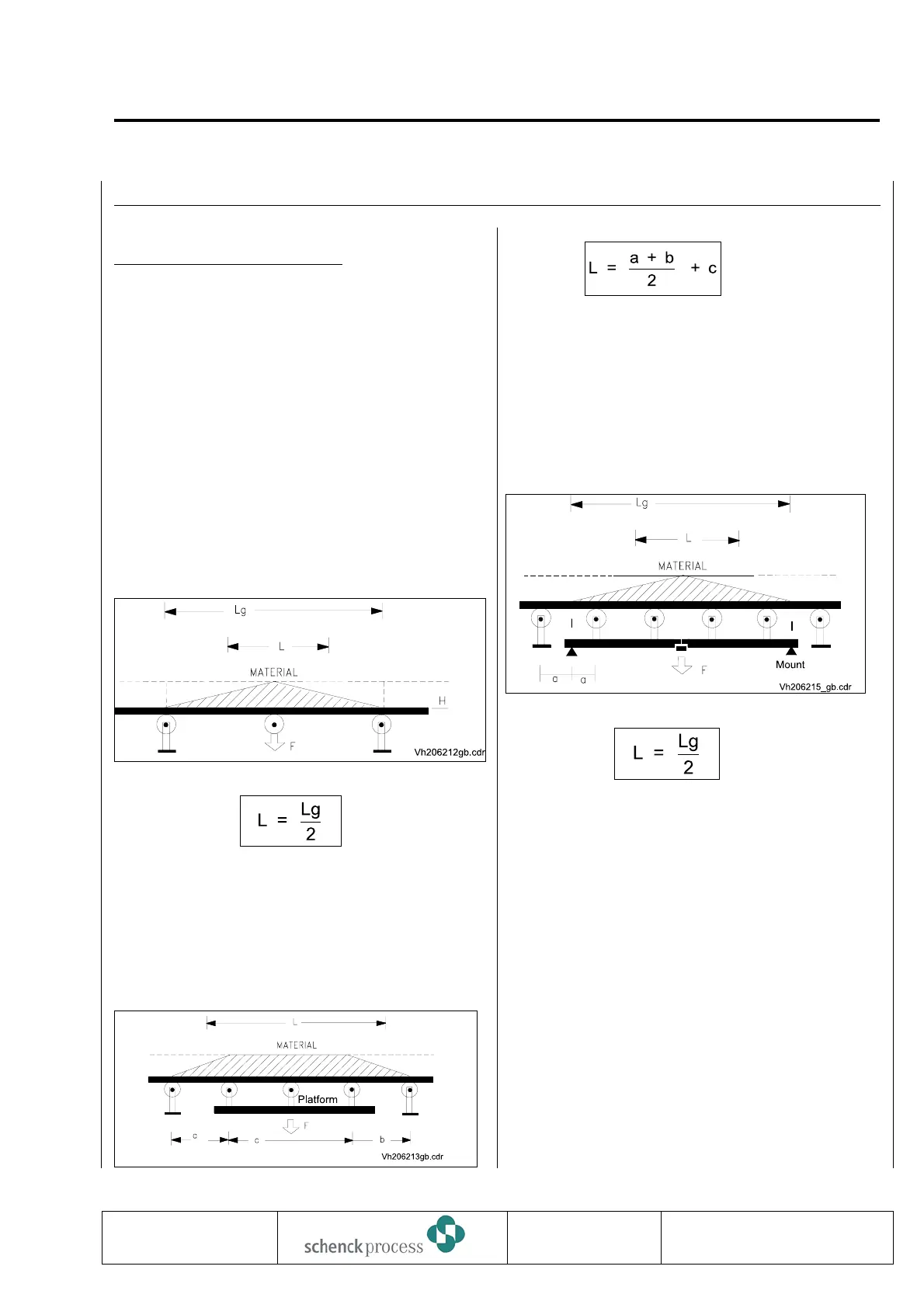

1. Effective Platform Length
The effective platform length is an important value for
calibration. Determined by platform design, it can
normally be taken from Spec Sheet. However, we
recommend to remeasure length and to enter the
exact value into parameter.
The hatched areas shows the distribution of load on
platform.
n
Single-Idler Platform
e.g. BEZ, BED types
Platform load is applied to load cell via a weighed
idler. This can be done by using a lever system or,
with no levers, by leaf spring parallel guidance.
Single-Idler
Platform
n
Multi-Idler Platform
e.g. BMP, BMC types
Various weighed idler are connected to form a
mechanical unit.
Multi-Idler Platform
n
Buckled Platform
e.g. BMK type
The platform consists of two sections. In its center,
force is applied to load cell. Instead of weighed
idlers, a two-sectional weighing table can also be
used.
Buckled Platform
