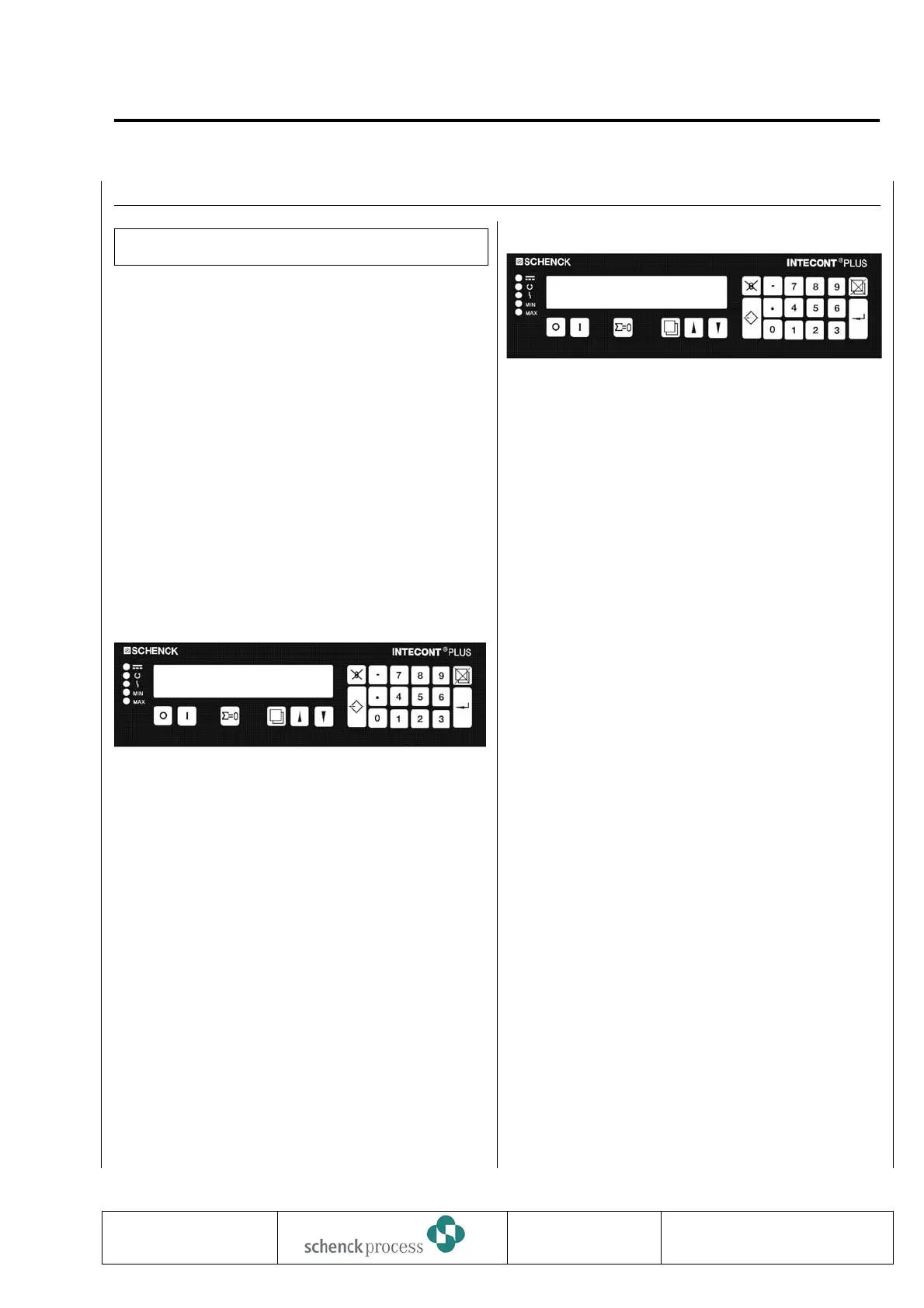

11 Commissioning
How To Operate Your INTECONT
There is no way out.
Who wants to put the INTECONT into service has to
work himself through the Operation and Service
Manuals.
To make learning easier, the INTECONT can be
operated without mechanical equipment, load cells
and speed transducer.
Although no feed rate is displayed, all operating
functions can be performed.
1. Connect power supply and turn on (Chapter
DETAILS).
2. The upper two green LEDs report “Ready to
Operate”, the red LED in the middle flashes and
reports Alarm E1.
Upper display : Totalizing Counter Z1
Lower Display : Event Message E1
“Power Failure” Feed Rate I
O Acknowledge Message E1 with key
ACK.
Display shows Event Message E2
which reports that no speed transducer
is connected.
3. Except “Scale ON” and “Set to Zero”, all
functions described in the Operating Manual can
be performed, e.g. display of event messages.
G Call function distributor.
f Start function “Display Events”.
T
U
Operate cursors to view available
events.
1. Namur Err. Tacho E2
Speed transducer not connected, or
cabling faulty.
2. L/C Input C1
Load cell not connected, or
cabling error.
3. L/C Input >MIN L4
4. No release S2
No external RELEASE signal.
4. If you wish to turn off the flashing signal lamp or
try the setting programs, change some
parameters as shown in Parameterization
chapter.
(a) Parameter O04 to WARNING 1 E2
(b) Parameter O06 to WARNING 1 C1
(c) Parameter O09 to WARNING1 L4
(d) Parameter O07 to IGNORE S2
(e) Parameter B 03 to - -
Deselect belt speed measurement with Parameter B
03. Weigher can then operate without tacho generator.
Use residual parameters to change the event class of
the 4 message types.
5. Set “Release” contact (Parameter P01).
6. Start INTECONT, all setting programs are
available.
First call LB program as described in Chapter 6
and acquire result using the
f key.
7. To simulate belt load, see Test Plug item.
0837
INTECONT PLUS VBW
Commissioning
BV-H2214 GB 85
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
1. Event E2 = O04
Namur Err. Tacho
Z= 0t
E1 I = 0 kg/h
