Data Flow Diagram
Note:
In normal INTECONT operation, data flow diagrams
need not be known.
In special cases, they can be used to trace internal
normalizations, particulary important for (theoretical)
precalibration.
Parameters:
Io Nominal Feed Rate B 02 in t/h
Io is reference value for limit values and
service display. Io has no effects on
calibration.
Qo = in kg/m
Vo =inm/s
Io = in t/h
0837
VBW INTECONT PLUS
Details
BV-H2214 GB 100
Technische
Redaktion PDE-RD
Transmission to third parties and reproduction of
this documentation are not permitted. Schenck
Process GmbH reserves all rights of ownership
and copyrights.

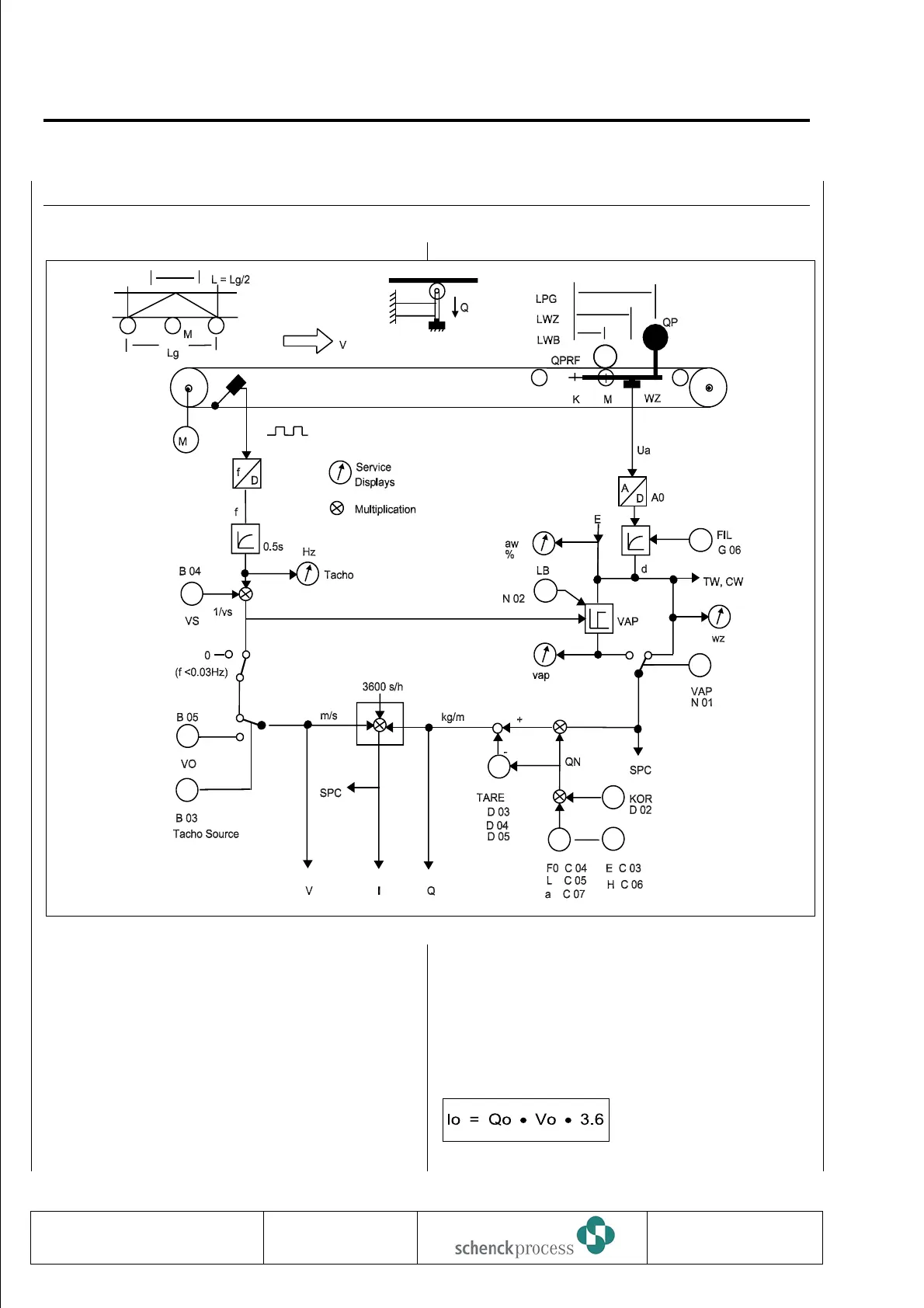

Fig.: Measurement
