Qo Nominal Belt Load D 01 in kg/m
Computed by INTECONT, Qo is reference
value for limit values and displays.
Nominal platform load QB = Qo · L
L = effective platform length
Vo Nominal Speed B 05 in m/s
Reference value for limit values, only relevant
for calibration of weighers
1. operating without speed measurement or
2. using adaptive belt influence compensation
BIC is used.
L Effective Platform Length C 06 in m
Acquire accurate length and enter.
VS Speed Transducer Characteristic
Value B 04 in I/m
VS determines speed measurement
normalization, thus being relevant for
weighing accuracy.
Fo Load Cell Rated Capacity C 04 in kg
Total of load cell rated capacities. Pivots are
considered as load cells.
Fo = (N +M) * NNENN
NENN = load cell rated capacity
N = number of load cells
M = number of pivots
Fo determines weigher accuracy.
E Load Cell Characteristic Value C 04
in mV
The transmission coefficient is an important
value for calibration.
Ua = Load cell output voltage in mV
Ue = Load cell input voltage in V
=
5 V (10 V)
F = Load on load cell
CSD load cells E = 2.85 mV/V
HBM load cells E = 2.00 mV/V
With some types, E is not calibrated. For
value, see type plate.
H Lever Ratio C 06
The lever ratio is decisive for calibration
accuracy. However, it must not enter into
check weight computation.
0837
INTECONT PLUS VBW
Details
BV-H2214 GB 101
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD

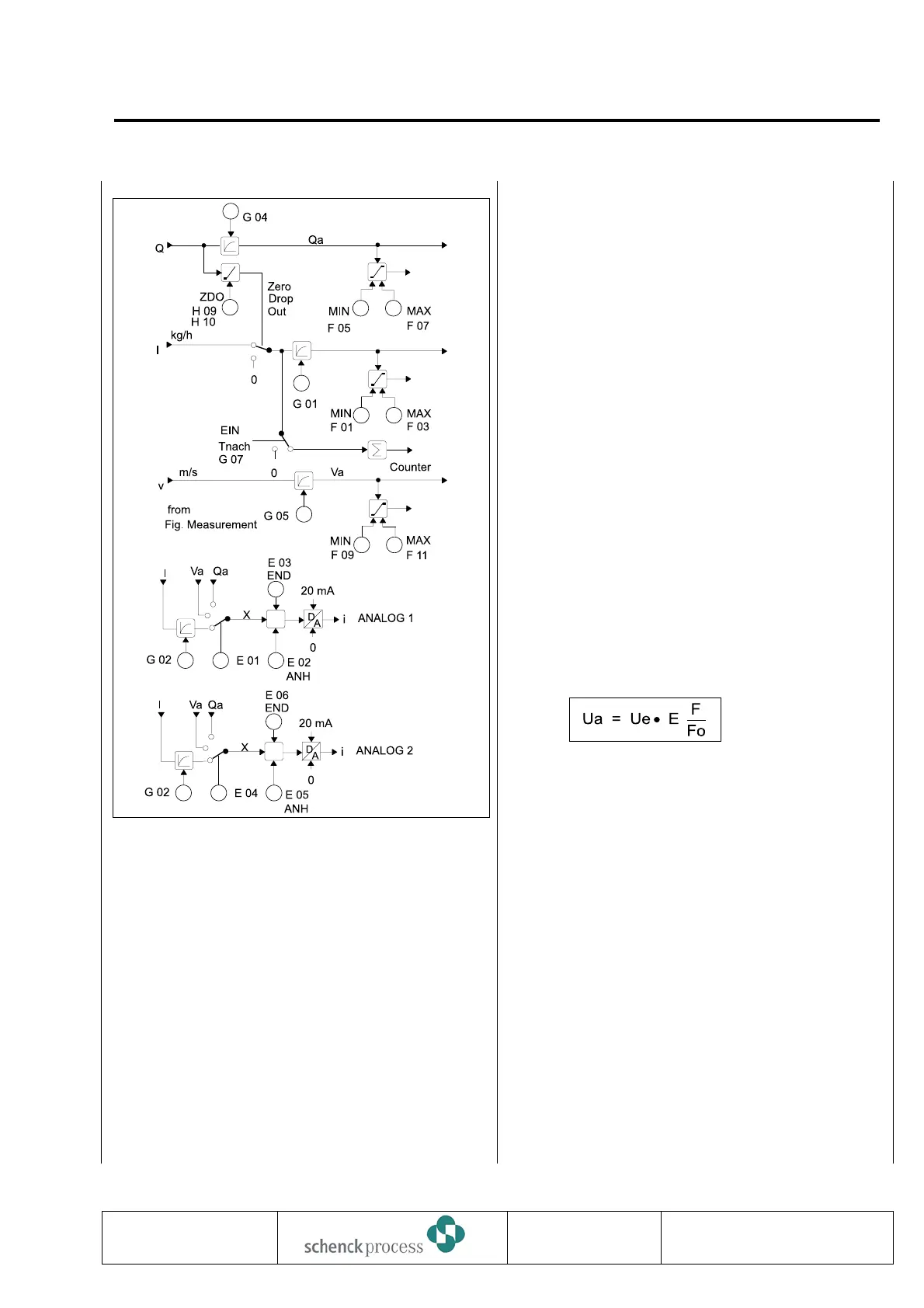

Fig.: Displays, limit values, analog input
