5. Technical Data
n

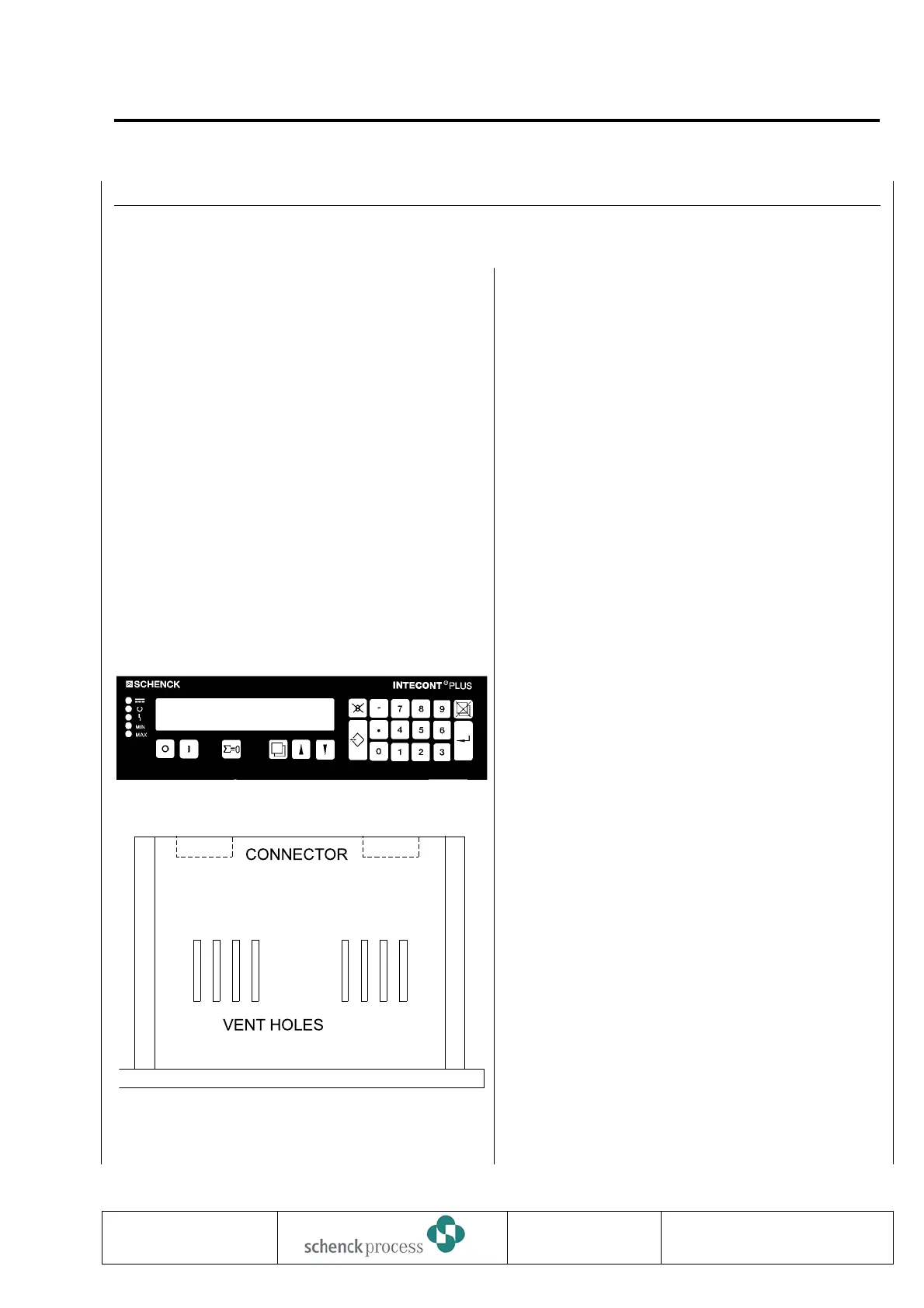

Panel-mounting unit VEG 20600/20610
Front panel : 96 x 288 mm
Panel cut-outs : 88 x 282, wall thickness
max. 10 mm
Mounting depth : min. 225 mm
(including 50 mm for
connectors)
Protected to : IP 20, front to IP 65
Material : plastic grey to RAL 7022
Display : fluorescent, 2 lines of 20
characters, 6 mm high
Keyboard : flexible membranes with
tactile touch
Signal lamps : LEDs, 2 x green,3xred
Power supply :
24 V(DC) 50 % -25%,
max. 1 A,
no fuse, pole-reversal
protective circuit
Ext. power supply : 90...264V/ 50HZ...60HZ
n
Surface-mounting unit: with panel mounting unit
VEG 20...
n
Wall-mounting housing
Measuring
systems : width x height x depth
410x330x236mm
Feeding
systems : width x height x depth
500x600x300mm
Protected to : IP 65
Material : steel sheet, 1.5 mm, grey
Voltage supply : 90...264V/50Hz...60Hz
Extension : Feed unit controller
n Environment
Temperature : -25 °C ... +45 °C,
tested to -40°C
Humidity : Class F (DIN 40 040) *
Interference :
immunity
to IEC 801
Interference
suppression : to VDE 871, EN 55 011
Housing safety : to IEC 348
EC recommen-
dations : CE label
* Tropical version (class R) upon request
n
Storage temperature
-40 °C ... +60 °C
n
Connectors
Plug/screw connectors (Phoenix Combicon),
non-confusible
n
Control outputs
Number : 8 N/O relay contacts
Base board : 3
Option card : 5
Load : max. 230 V(AC)
8 A resistive load, 1 A
inductive
0837
INTECONT PLUS VBW
Technical Data
BV-H2214 GB 25
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
Z1 = 2500 kg
I = 0 kg/h
