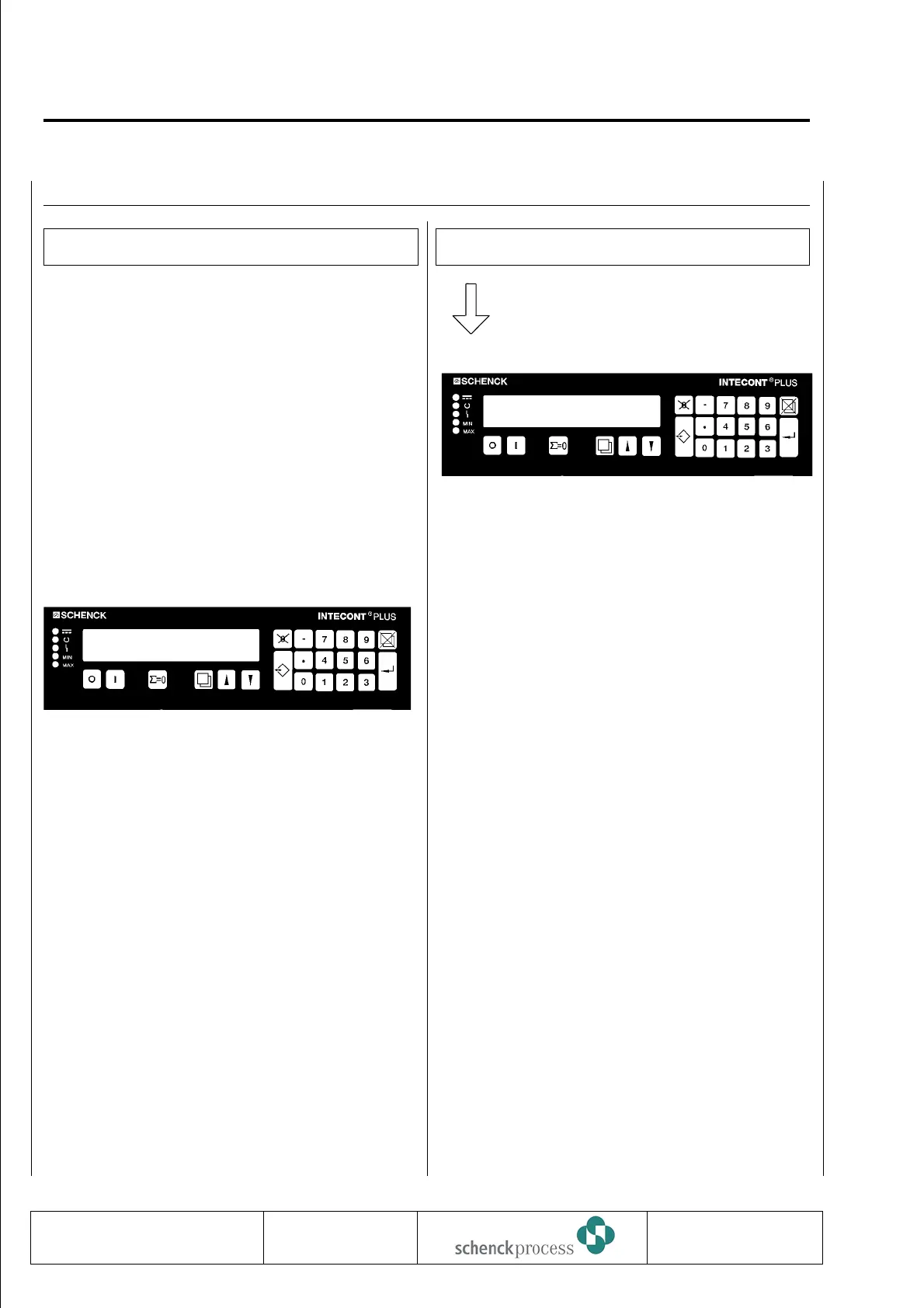

2 Control
Power ON
During power failure
Counter readings
Counter pulses not yet output
Preselected normal displays
Service values, e.g. ON-time
remain stored for an endless period of time.
The internal clock continues running for approx. 5
days.
After power-on, display and lamps are automatically
tested before version number of system is displayed
for some seconds to be then replaced by the normal
displays.
Message E1
reports power failure and can be defined as ALARM or
WARNING.
ALARM:
Red lamp
X and message E1 are
flashing.
To start scale, first acknowledge
message.
WARNING:
Signal lamp
X remains dark,
message E1 does not flash.
Start/stop scale automatically or in
manual. No acknowledgement is
required.
O Lets you acknowledge event
message.
Signal Lamps
a (green) POWER OK
lights if all power supplies are OK.
b (green) CPU OK
lights if microprocessor is ready to
operate.
X (red) ALARM
flashes if an Alarm event is
available.
In addition, an event code appears
in lower display line.
MIN (red) MIN LIMIT VALUE
lights if feed rate limit value is
exceeded down.
MAX (red) MAX LIMIT VALUE
lights if feed rate limit value is
exceeded up.
READY:
The two green signal lamps must be lit, and no Alarm
message available.
0837
VBW INTECONT PLUS
Control
BV-H2214 GB 4
Technische
Redaktion PDE-RD
Transmission to third parties and reproduction of
this documentation are not permitted. Schenck
Process GmbH reserves all rights of ownership
and copyrights.
Z1=2500 kg
E1 I = 0 kg/h
Z1=2500 kg
E1 I = 0 kg/h
