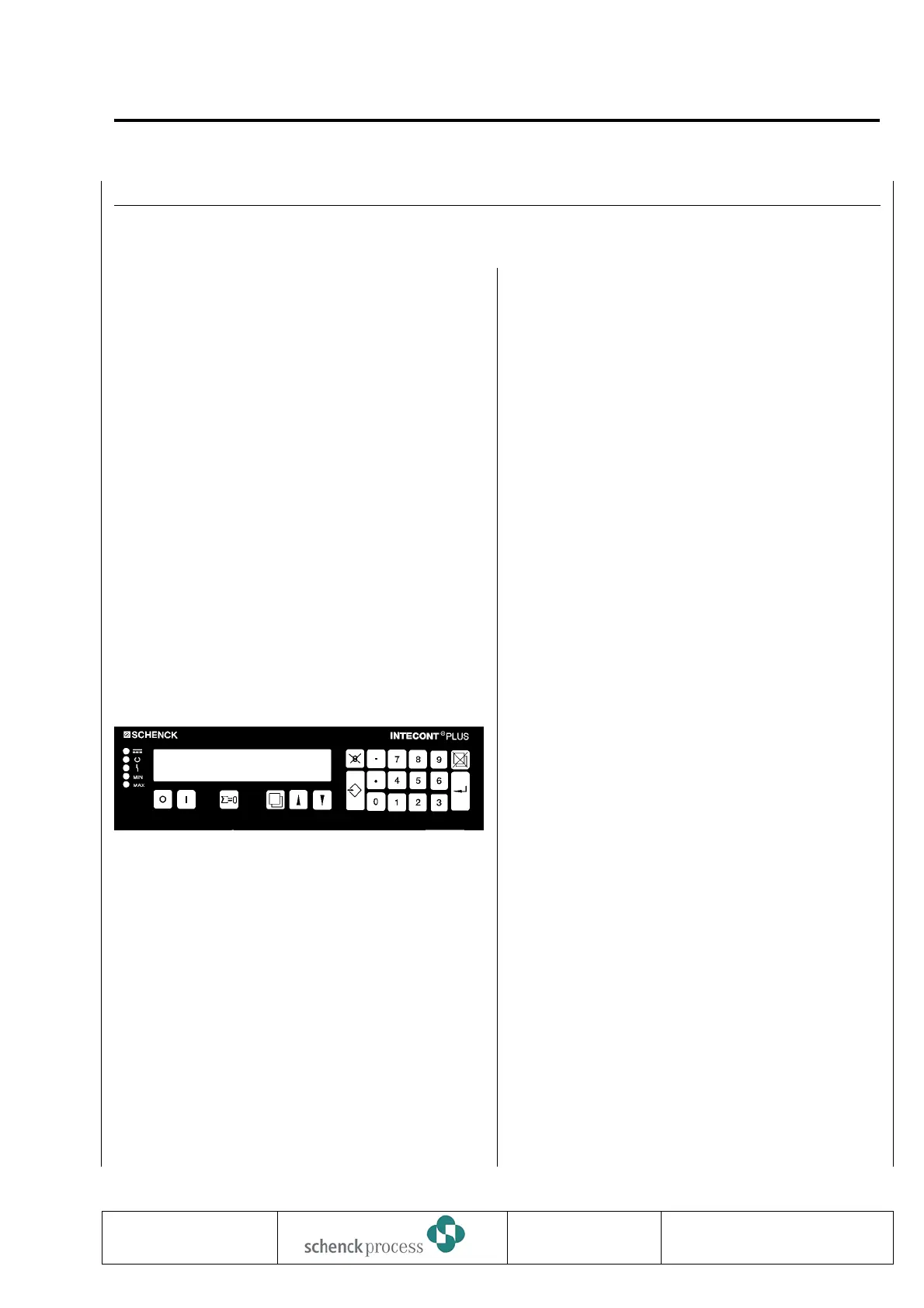

8 Service Values
The Service table includes detailed system
information.
Call does not affect weighing functions.
GT
f
Call SERVICE VALUES function and
activate.
TU Move through service values.
N Return to normal displays.
Displays:
1) VBW 20600-01 2482 Version number
2) HW = 1 Hardware version
3) Option card: 0 (not available)
1 (available)
4) Date and time
5) Relay outputs switching condition
I+DO=11100000
“1" = contact closed
”0" = contact open
Outputs 4-8 on option card
“N” = no option card
6) Input switching condition
I+:DI=111 11 +0
“1" = contact closed
”0" = contact open
Inputs4+5onoption card
“N” = no option card
Inputs6+7designed as Namur inputs
(belt sensor, tacho)
“+” short circuit; “-” cable breakage;
“1" = sensor covered; ”0" = sensor free
7) EL = 22 h
Voltage ON-time
Monitored: Parameter K 01, Message S4
8) ED:>0=95min
Scale ON-time after last taring, or last manual or
automatic zero set.
Prerequisite : Totalization ON, conveyor belt
may be stopped.
Monitored : Parameter H 07, Message C7
9) ED = 19 h
Scale and conveyor belt ON-times
Prerequisite : Totalization ON
Monitored : Parameter K 03, Message S3
10) Tacho = 96.6 Hz
Speed transducer input frequency
Select frequency between 0.4...3000 Hz.
0837
INTECONT PLUS VBW
Service Values
BV-H2214 GB 39
Transmission to third parties and reproduction of
this documentation are not permitted.
SchenckProcess GmbH reserves all rights of
ownership and copyrights.
Technische
Redaktion PDE-RD
O Z1 = 1500100 kg
Opt..Card : 1
