8.26
SEL-387-0, -5, -6 Relay Instruction Manual Date Code 20170601
Front-Panel Interface
Figures of Selected Front-Panel Menu Structures

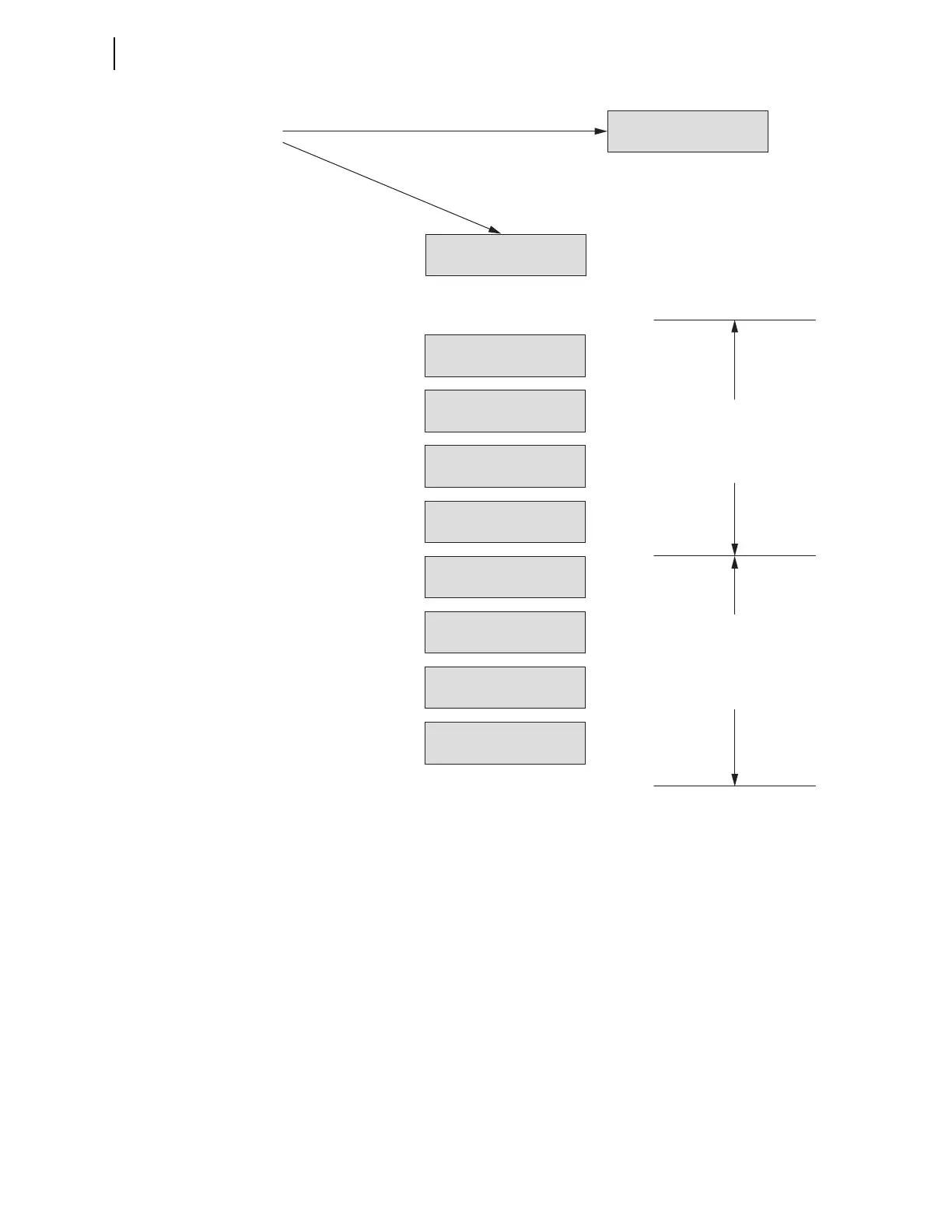

Figure 8.6 EVENTS Display Structure
EVENTS BUTTON
If history archive is empty
Where
Note:
n = event number
m = group number
If secondary currents > 99.9, drop the decimal place.
Summary Data
of All Events
in History
Archive
Current Data
Display Only
if Full Event
Record Is Still
Stored in Relay
No Fault Data
←→EVENT DATA
↑↓Next Event
n DATE mm/dd/yy
TME hh:mm:ss.sss
n EVENT:
[event type]
n GROUP:
m
n TARGETS:
[asserted tars]
n W1 A B C
12.3 12.3 12.3
n W2 A B C
12.3 12.3 12.3
n W3 A B C
12.3 12.3 12.3
n W4 A B C
12.3 12.3 12.3
