Schweitzer Engineering SEL-387-0 - Table 10.2 Instantaneous Overcurrent Elements and Corresponding Settings; Figure 10.5 Test Connections for Two Single Current Test Sources

10.11
Date Code 20170601 Instruction Manual SEL-387-0, -5, -6 Relay
Testing and Troubleshooting
Acceptance Testing
Step 4. Purpose: Repeat test for each instantaneous overcurrent
element for each winding.
Method:
a. Repeat Step 1 through Step 3 for each instantaneous
overcurrent element listed in Table 10.1 for each
winding.
b. Remember to view the appropriate TARget and apply
current to the appropriate winding. The computer
terminal will display the LED labels from left to right
when the TAR F command is issued.

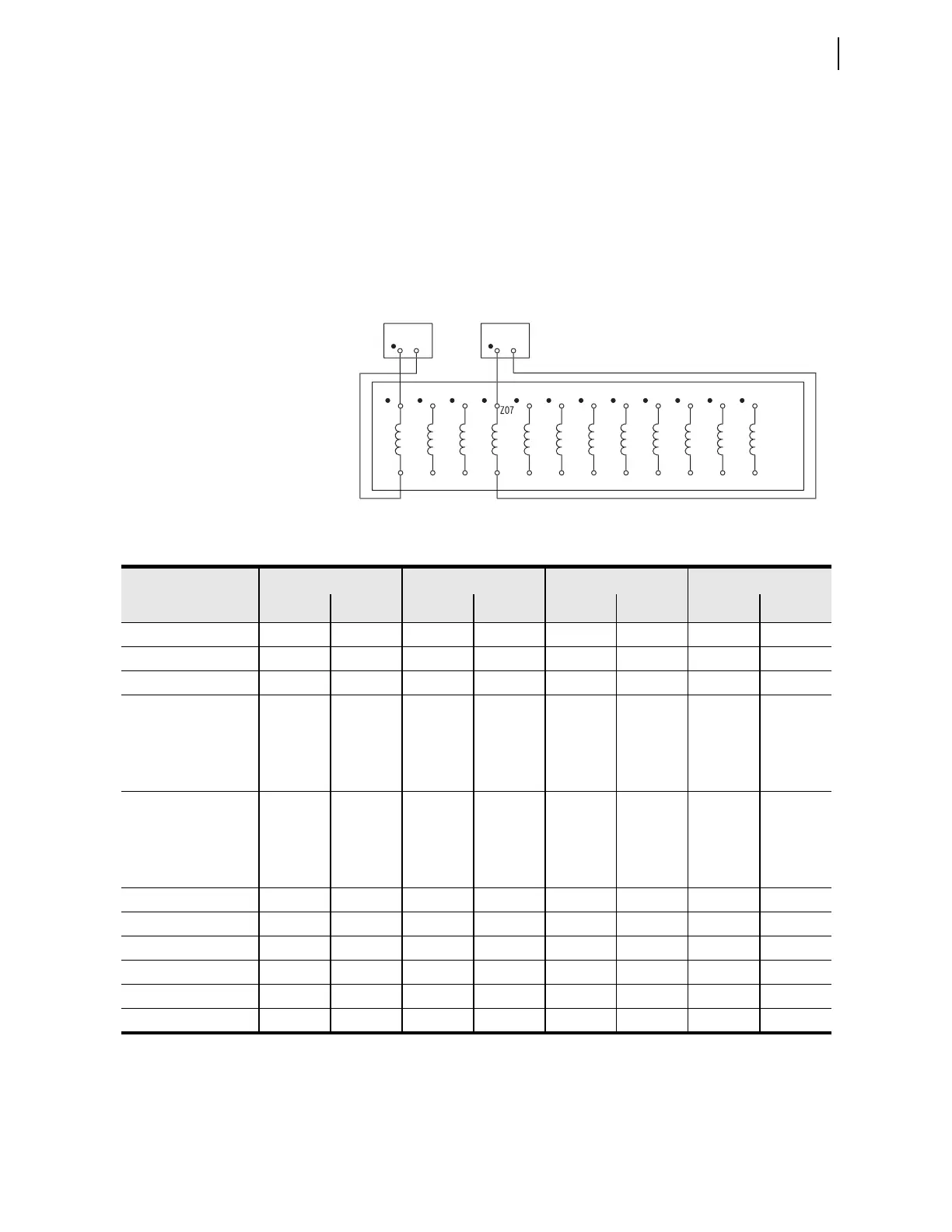

Figure 10.5 Test Connections for Two Single Current Test Sources
Z
01
Z
02
IAW1
Z
04
Z
03
IBW1
Z
06
Z
05
I
C
W
1
Z
08
IAW2
Z1
0
Z
09
IBW2
Z12
Z11
I
C
W
2
Z14
Z1
3
IAW
3
Z1
6
Z1
5
IBW
3
Z1
8
Z17
I
C
W
3
Z2
0
Z1
9
IAW4
Z22
Z21
IBW4
Z24
Z2
3
I
C
W
4
S
EL-
387
(
p
artial
)
Cu
rr
e
n
t
Sou
r
ce
1
Cu
rr
e
n
t
Sou
r
ce
2
Table 10.2 Instantaneous Overcurrent Elements and Corresponding Settings
Winding 1 Winding 2 Winding 3 Winding 4
Bit Setting Bit Setting Bit Setting Bit Setting
Phase Level 1 50P11 50P11P 50P21 50P21P 50P31 50P31P 50P41 50P41P
Phase Level 2 50P12 50P12P 50P22 50P22P 50P32 50P32P 50P42 50P42P
Phase Inverse-Time 51P1 51P1P 51P2 51P2P 51P3 51P3P 51P4 51P4P
A-Phase Level 3 50A13 50P13P 50A23 50P23P 50A33 50P33P 50A43 50P43P
B-Phase Level 3 50B13 50B23 50B33 50B43
C-Phase Level 3 50C13 50C23 50C33 50C43
Phase Level 3 50P13 50P23 50P33 50P43
A-Phase Level 4 50A14 50P14P 50A24 50P24P 50A34 50P34P 50A44 50P44P
B-Phase Level 4 50B14 50B24 50B34 50B44
C-Phase Level 4 50C14 50C24 50C34 50C44
Phase Level 4 50P14 50P24 50P34 50P44
Residual Level 1 50N11 50N11P 50N21 50N21P 50N31 50N31P 50N41 50N41P
Residual Level 2 50N12 50N12P 50N22 50N22P 50N32 50N32P 50N42 50N42P
Residual Inverse-Time 51N1 51N1P 51N2 51N2P 51N3 51N3P 51N4 51N4P
Neg-Seq Level 1 50Q11 50Q11P 50Q21 50Q21P 50Q31 50Q31P 50Q41 50Q41P
Neg-Seq Level 2 50Q12 50Q12P 50Q22 50Q22P 50Q32 50Q32P 50Q42 50Q42P
Neg-Seq Inverse-Time 51Q1 51Q1P 51Q2 51Q2P 51Q3 51Q3P 51Q4 51Q4P
