4 Maintenance
4--30
F--9999--8 Build 8 Issue 1
3/4”

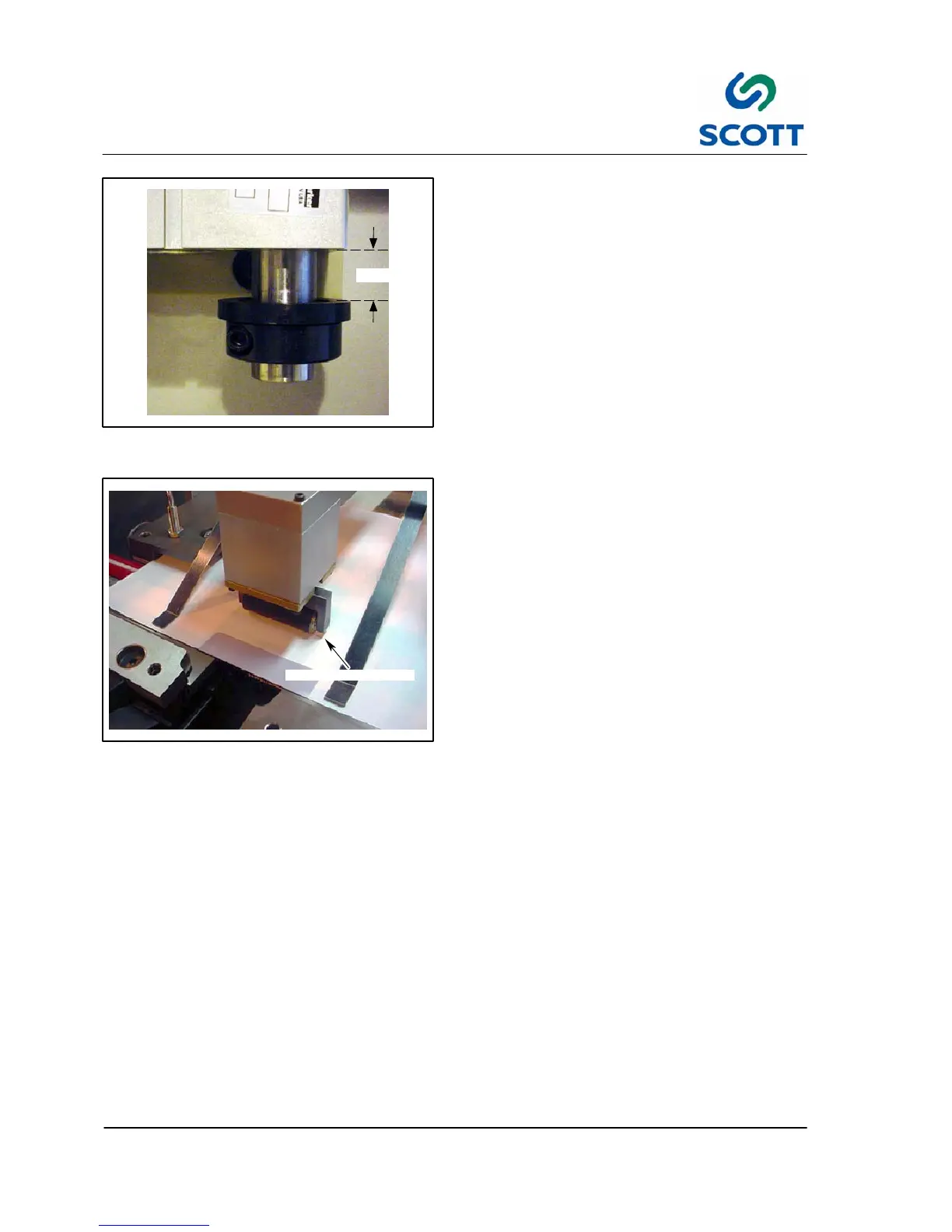

Fig. 4-27. 3/8” Gap Between Stop Pad and
Bottom of Cylinder
4.2.7 Set Tab Cut Cylinder
The tab cut cylinder should have a 3/4” stroke.
If not, the stroke can be reset by the follow:
Step: 1. Loosen the metric screw on the cylinder
stop and set a gap of 3/4” between the
rubber stop pads and the bottom of the
cylinder.
KICK OUT SOLENOID
Fig. 4-28. Kick Out Solenoid Set Up
4.2.8 Kick Out Solenoid S et Up
The kick out solenoid assists the index stock out of
the tab cutter and into the paper basket.
It is important that the solenoid kicks the stock out
at just the right time.
If the solenoid drops too soon, it will buckle the
stock as it is being cut.
If the solenoid drops too late, the stock may not
clear the tab cutter section in time for the next
piece of stock to be fed in.
The kick out solenoid is controlled by a reed switch
that is mounted on the tab cutter cylinder.
To Next Page
