4 Maintenance
4--31
F--9999--8 Build 8 Issue 1
TABCUTTERCYLINDERPISTON

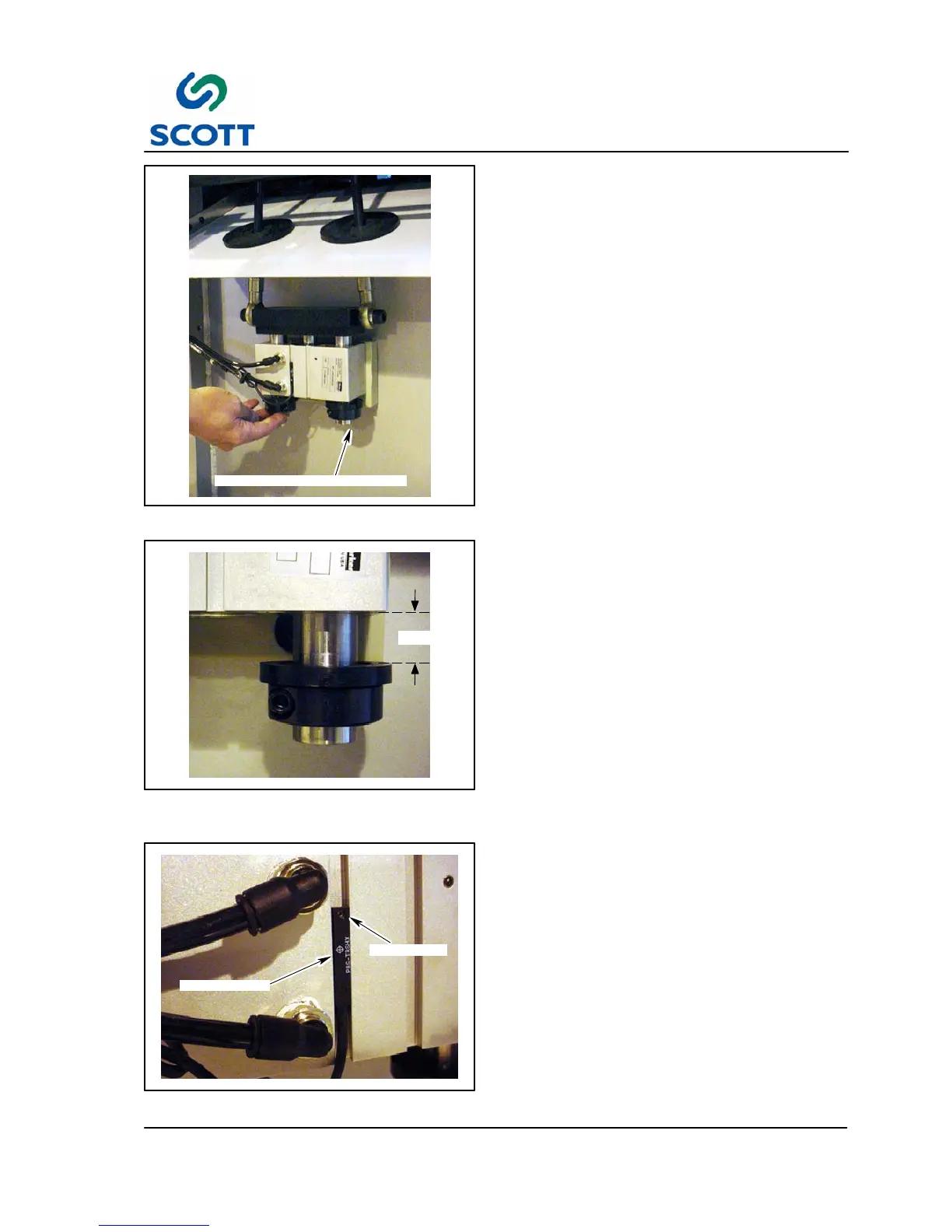

Fig. 4-29. Push Up Tab Cut Cylinder Piston
To set the solenoid kick out reed switch:
Step: 1. Turn the drive speed all the way down.
Step: 2. Shut the air supply off.
Step: 3. Push the Start button.
Step: 4. Slowly push up on the cylinder piston
until the roller on the kick out solenoid
drops.
3/8”
Fig. 4-30. 3/8” Gap Between Stop Pad and
Bottom of Cylinder
There should be a gap of 3/8” between the rubber
stop pad and the bottom of the tab cut cylinder.
If the gap between the rubber stop pad and the
bottom of the tab cut cylinder is not 3/8”, proceed
to the next step.
REED SWITCH
SET SCREW
Fig. 4-31. Reed Switch
Step: 5. Loosen the set screw on the reed switch
and slide the switch up or down.
Since the reed switch is made of plastic,
use care when tightening set screw.
To Next Page
