2 Installation
2--6
F--9999--8 Build 8 Issue 1

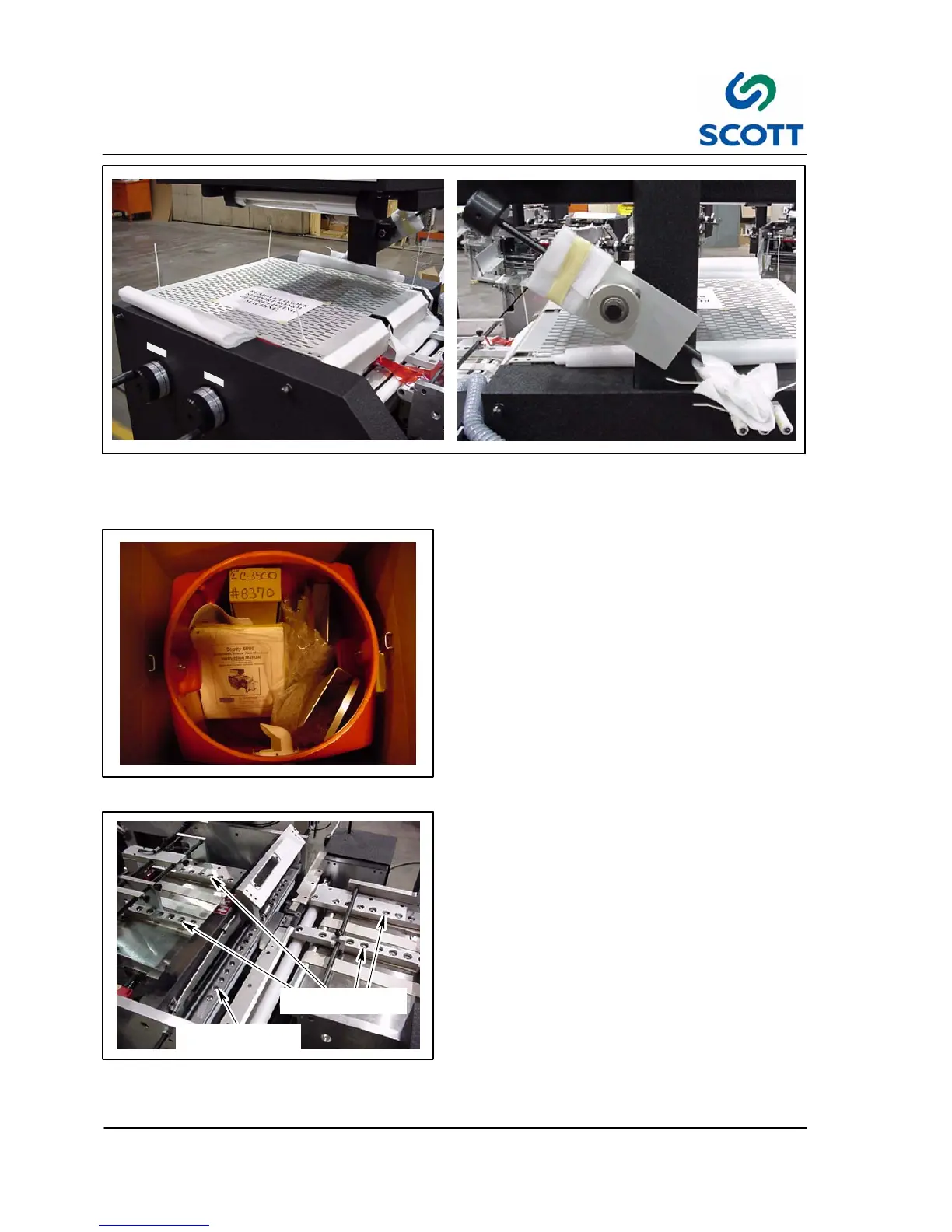

Fig. 2 -4. Remove Foam and Tie Wraps
Step: 7. Remove the foam and tie wraps that were protecting the machine during shipping.
Fig. 2-5. Remove Parts from Vacuum Canister
Step: 8. Once the machine is in place, open the
vacuum canister and remove packaged
parts.
LARGE BALL
BEARING POCKETS
SMALL BALL
BEARING POCKETS
Fig. 2-6. Install Ball Bearings
Step: 9. Install ball bearings in the correct
pockets.
To Next Page
