2 Installation
2--10
F--9999--8 Build 8 Issue 1

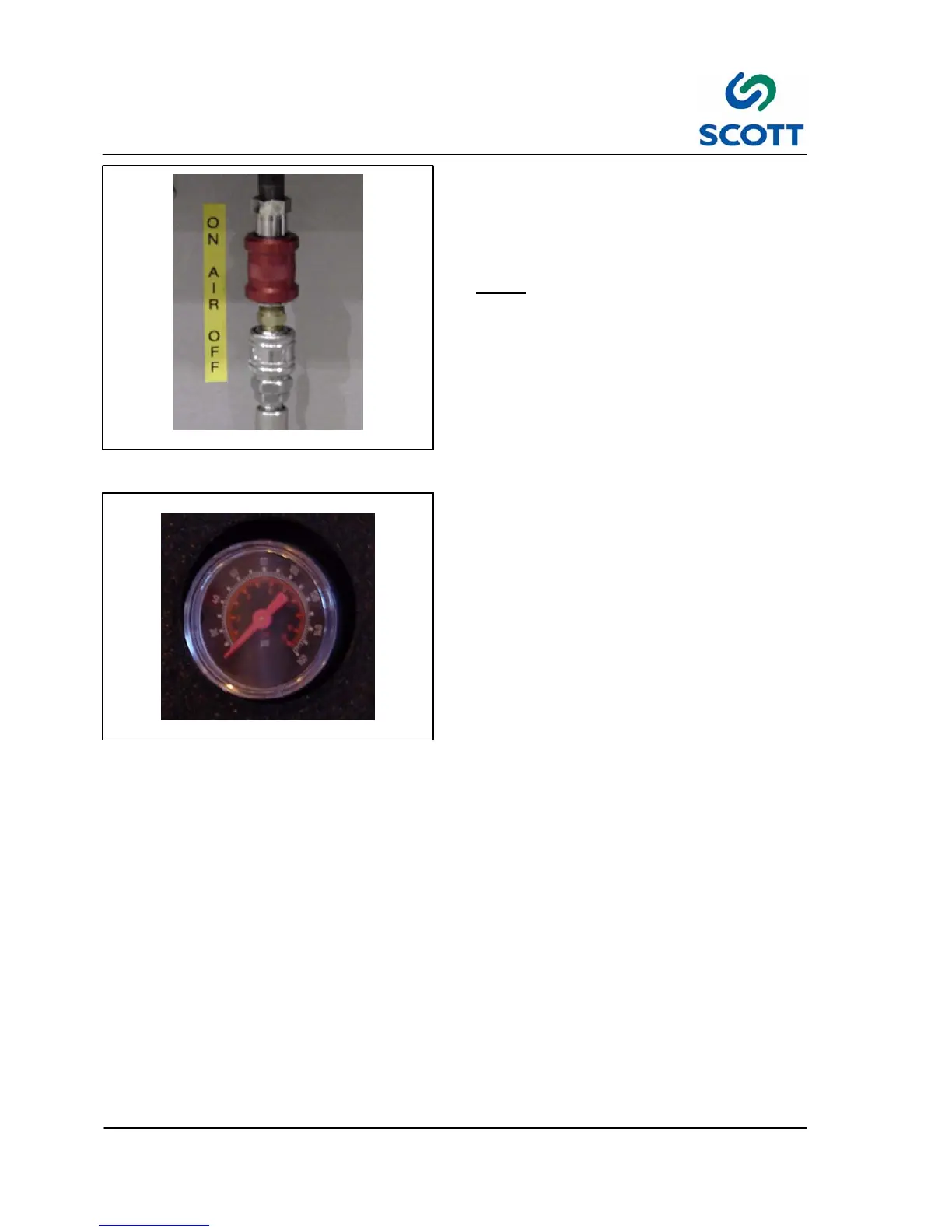

Fig. 2-13. Connect Air Supply
2.2.2 Connect Air Supply
1. Supply a 1/4 NPT air line with 6 ScFm @
80psi (170LPM @ 5.3bar)to the air shut off
valve located at the back of the machine.
Note ! The compressed air line at the main
AIR IN features a ON/OFF valve for
safety. Place the valve in the closed
position when connecting the
machine to the plant air supply.
Fig. 2-14. Air Supply Gage
Set the Regulator to 60psi (4.0bar).
