3 Operation
3--10
F--9999--8 Build 8 Issue 1

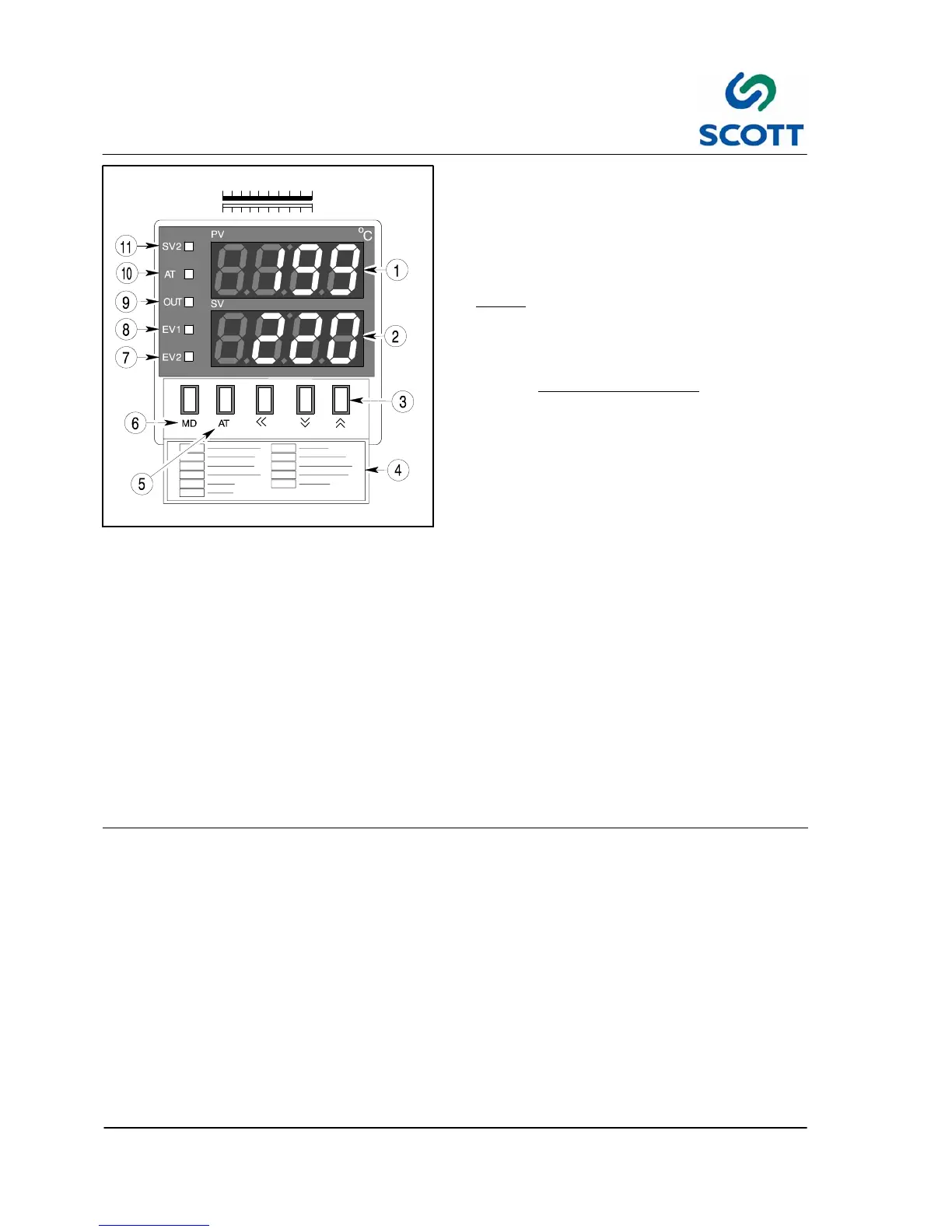

Fig. 3-19. Heater Temperature Control
3.2.3.17 Heater Temperature Control
Controls upper and lower platen temperatures by
cycling power to the heaters. The setpoint
temperature is adjusted by using the buttons below
the indicator display.
Note ! The heat controllers will automatically
turn off if the machine is not run for
two hours. The heat button will stay
illuminated but the controllers will go
dark and the platen will loose heat.
To restart the machine:
Press the start
button while the heater button is still
on and the machine will start to heat
again.
1. PV:Processing value indicator(Red color)
2. SV:Setting value indicator(Green color)
3. ARROWS(3): Key shifting the display.
4. Information for operation mode.
5. AT Key: The mode key to execute Auto tuning
function.
6. MD Key: The mode key to change the items to
be set, such as alarm value, etc.
7. EV2: EVENT2 Output signal lamp. (Not Used)
8. EV1: EVENT1 Output signal lamp. (Not Used)
9. OUT: Output signal lamp.
10.AT: The signal lamp flickers while Auto tuning is
being executed.
11. SV2: Signal lamp for SV2 operation. (Not Used)
