3 Operation
3--18
F--9999--8 Build 8 Issue 1
1/32”
FILM
TIP DIE
FILM STOP
FILM STOP
FILM STOP
ADJUSTMENT SCREW
WINDOW ASSEMBLY

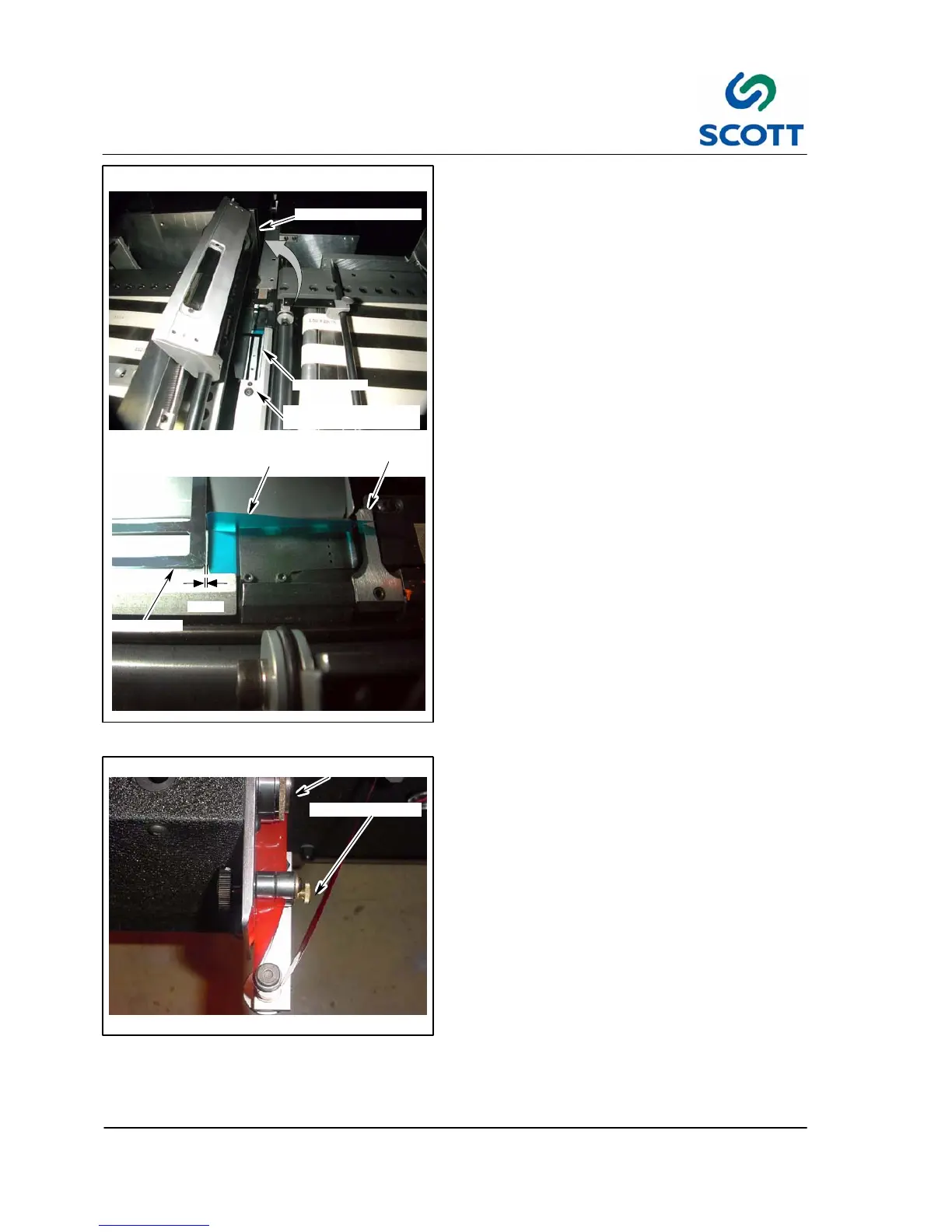

Fig. 3-35. Remove Film Scrap from Tip Die Area
Step: 13.Lift the window assembly to expose the
Tip Die.
Step: 14.Loosen the film stop adjustment screw.
Step: 15.Set film stop to 1/32” from edge of film
after plastic size handwheel has been
set.
Step: 16.Retighten the film stop adjustment screw.
Step: 17.Remove film from T ip Die.
Step: 18.Lower the window assembly.
ROLLERS GUIDES
DRIVE ROLLERS
Fig. 3-36. Inspect Plastic Feed Area
Step: 19.Inspect the folded plastic that has been
fed through the roller guides and into the
drive roller assembly.
