3 Operation
3--24
F--9999--8 Build 8 Issue 1
TWO NOZZLES
PER BLOCK
THUMB SCREW

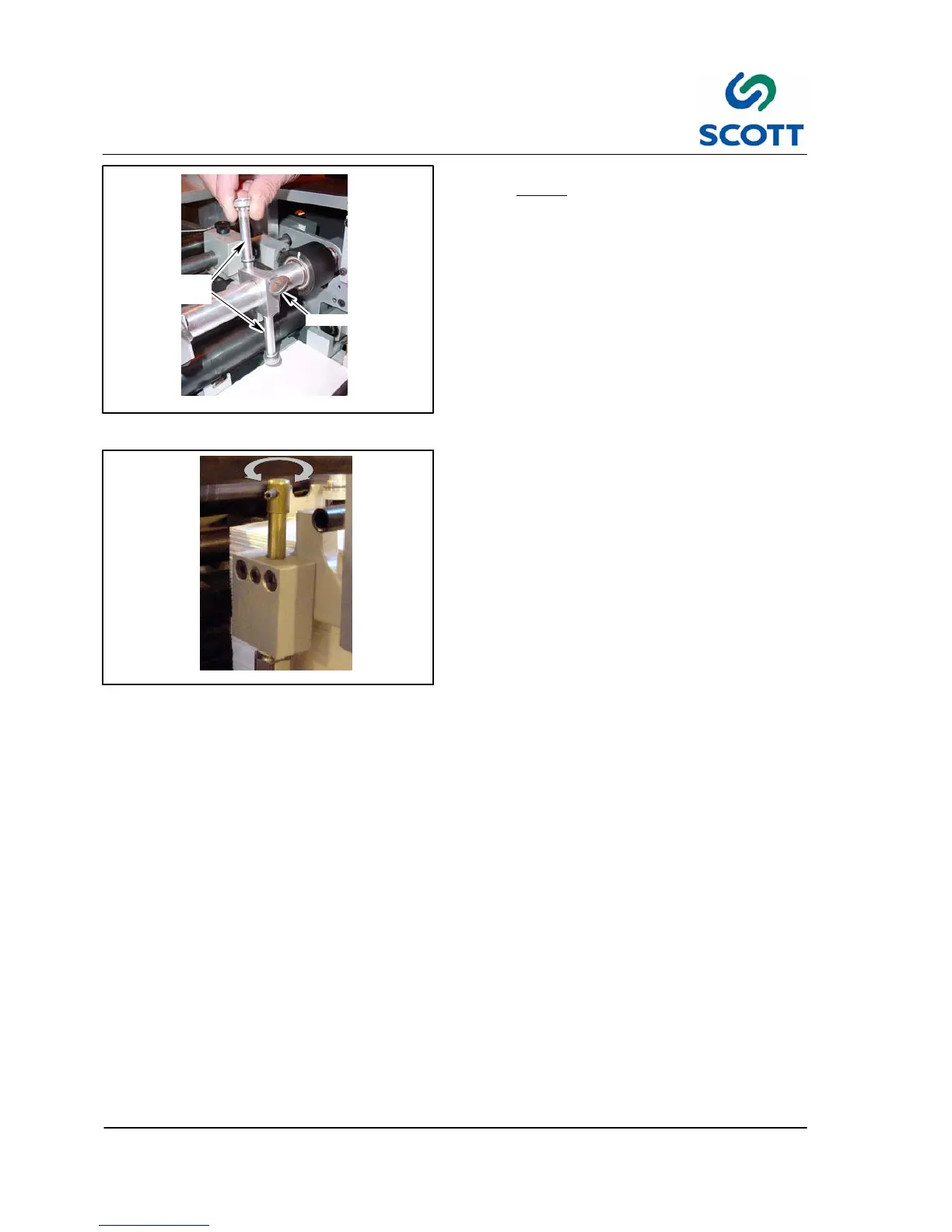

Fig. 3 -46. Vacuum Nozzle Set Up
Use four nozzles (two per block) when running
5,000 cut only
(not laminated) tabs per hour.
To Install/remove: Loosen the thumb screw and
insert/remove vacuum nozzle and rubber plug.
Gently retighten thumb screws.
Fig. 3 -47. Side Air Blow Nozzles
Blow air nozzle height is pre--set at the factory and
should not need to be adjusted. If they need
adjusting, the side nozzles are adjusted in height
by screwing them either up or down. The front
nozzles can be adjusted in height by first tilting
them toward the stack and then screwing them
either up or down.
To adjust direction of air nozzle, rotate nozzle to
desired location.
