Sekonic SPECTROMASTER C-800 User Manual

6
2. Before Use
3.
Select the language. (Appears only when turned ON for the rst
time)
The Language Selection screen is displayed. Select the language to use.
4.
Press the [OK] to select the language.
The language can be switched at any time. (

P152)
5.
Dark calibration.
The C-700 series measuring system must be calibrated before use. Turn Light
Selection Ring to calibration indication. "Dark calibration in progress. Please
wait" and the status bar will appear while calibrating. The Measuring screen will
appear when operational.
NOTE
Dark calibration is performed when there is a big change in temperature between turning
power OFF and ON.
Except the cases above, dark calibration after power ON is skipped.
A blue highlight
will appear
behind the
selected button.

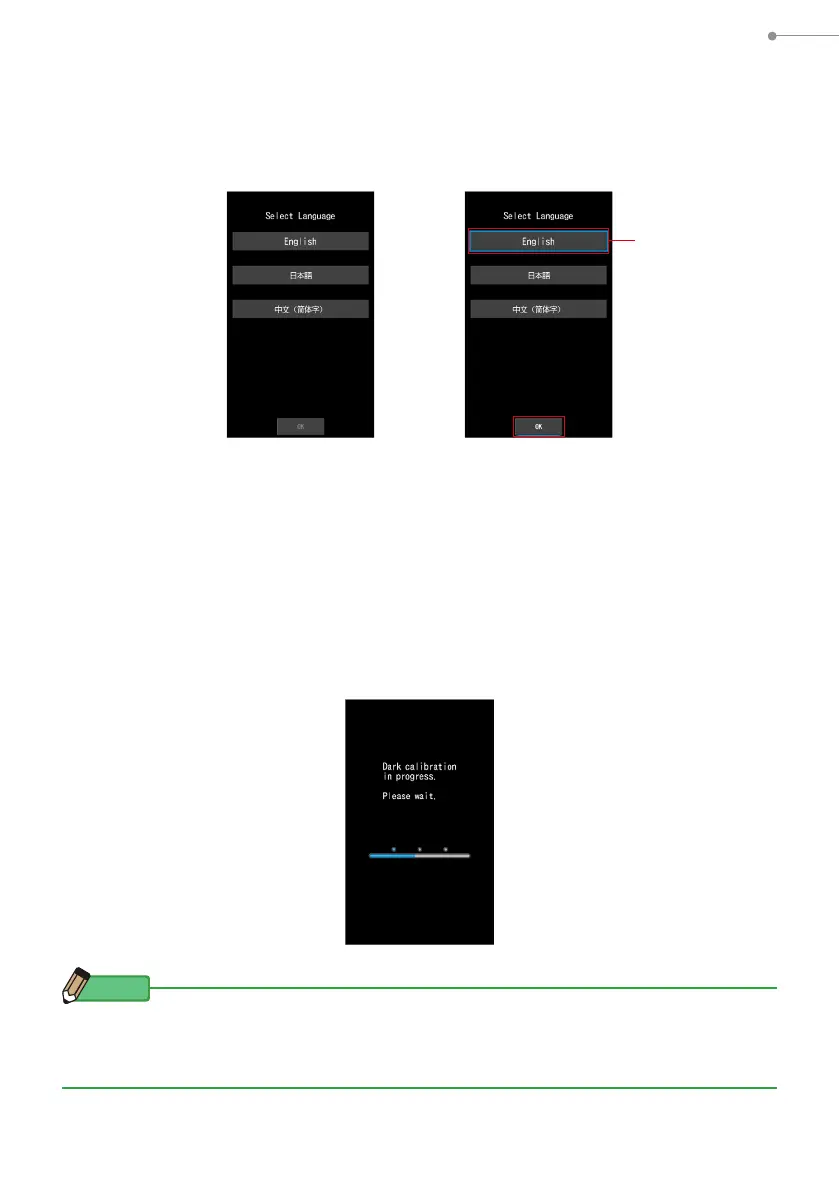

Language Selection
Screen
Language Selection
Conrmation Screen
Dark Calibration
Process Screen

Sekonic SPECTROMASTER C-800 Specifications

General

Type	Spectrometer
Color Temperature Range	1, 600 to 40, 000 K
Spectral Wavelength Range	380 to 780 nm
Power Source	Rechargeable lithium-ion battery
Operating Temperature	0 to 40°C (32 to 104°F)
Display	Color LCD
Measurement Range	1 to 200, 000 lx
Spectral Response	Human eye response
Connectivity	USB
Weight	350 g (including battery)
Memory Capacity	Up to 1, 000 measurements
