4. Basic Operations
4-4-3 Displaying in Spectrum Comparison
[Spectrum Comp.] Mode
Compares the current measurement value and up to 2 memorized values as yellow
and/or red lines in the spectrum distribution graph.
Operation
1.
Touch the [Spectrum Comp.] icon on the Display Mode Selection
screen.
The Spectrum Comp. screen will be displayed. (
P30)
2.
Touch the [Measuring Mode] icon.
The Measuring Mode Selection screen will be displayed. Select the desired
measuring mode to use. (
P22)
3.
Press the Measuring Button ❺ to measure.
The Light Selection Ring
❷
should be set to L ( )
when taking ambient light measurements.
When measuring ash units, select Range L ( )
or Range H ( ) depending on the brightness of
the ash. (
P99,
P101)
Measurements are now displayed.
C-800
Light Selection Ring
❷
Measuring Button
❺
[Measuring Mode] Icon
[Memory Selection] Icon
[Graph Display ON/
OFF] check box
[Display Mode] Icon
Spectrum Comparison
Mode
Selected Memorized
Value Display Area
Current Measurement

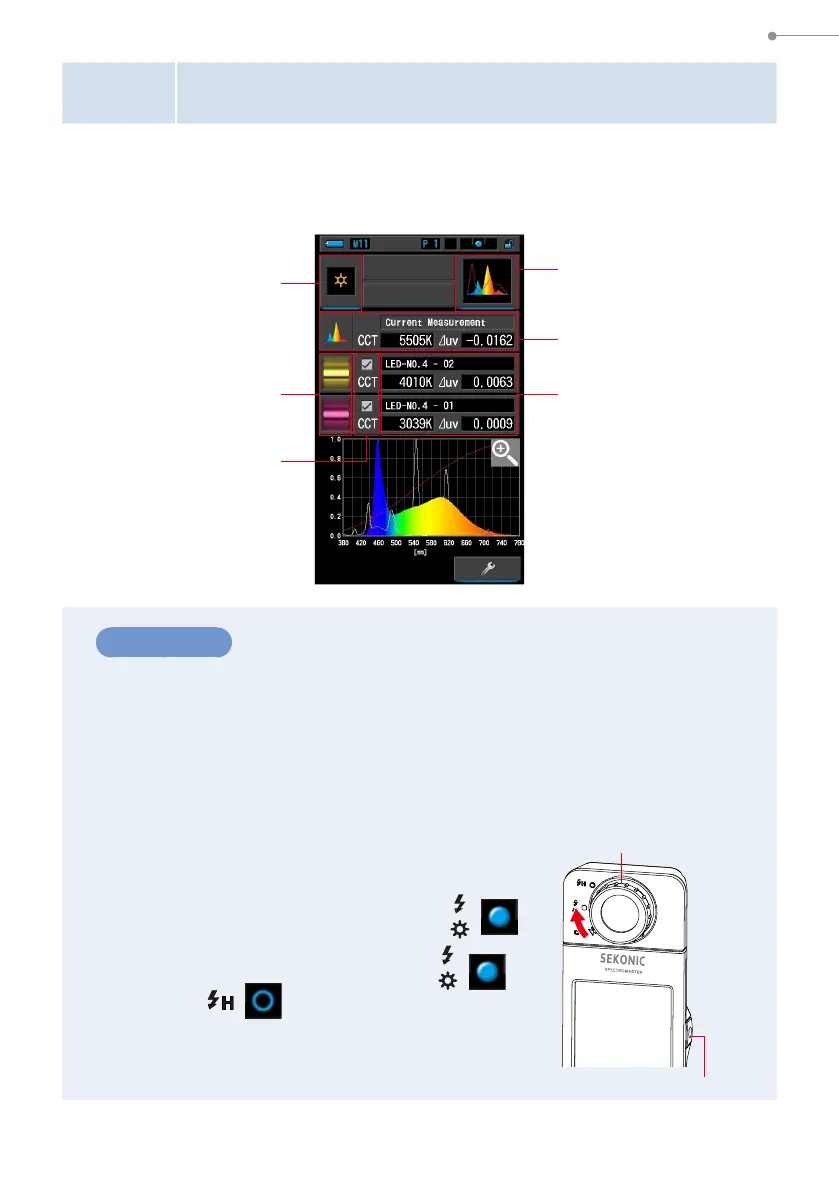

Spectrum Comp. Screen
