4. Basic Operations
5.
Press the Measuring Button ❺ to measure.
The Light Selection Ring
❷
should be set to L ( )
when taking ambient light measurements.
When measuring ash units, select Range L ( )
or Range H ( ) depending on the brightness of
the ash. (
P99,
P101)
Measurements are now displayed.
NOTE
Measurements and display will take longer in light levels below 30lx. The LCD illumination
will normally switch off during measurements to avoid inuence to measurements.
6.
Touch the [Magnifying Glass (+)] icon on the screen.
The spectrum distribution graph will be enlarged.
The enlarged graph is displayed on the whole screen (landscape).
To return to the Spectrum screen, touch the [Magnifying Glass (-)] icon on the enlarged
spectrum distribution graph.
NOTICE
When the enlarged graph is displayed, measurement cannot be performed.
NOTE
The maximum display value of the Y-axis can be selected by the item [Spectrum
Y-axis Scale] icon in page 2 of Setting. (
P143)
7.
Memorize the measurement results.
To record measurements, press Memory Button
❼
. (
P106)

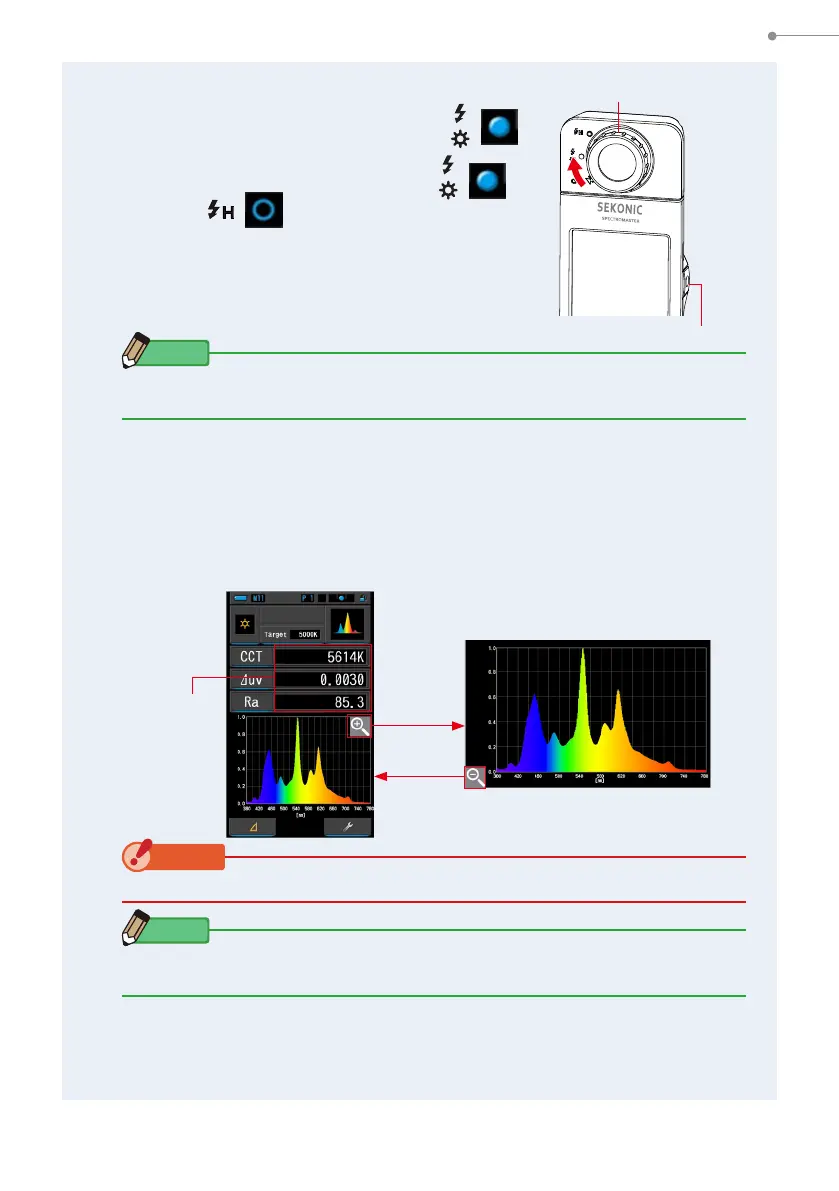

C-800
Light Selection Ring
❷
Measuring Button
❺
Measurement
results are
displayed.
Spectrum Distribution Graph
Enlarged Display
Spectrum Screen
To Next Page
