4-4-6 Displaying in TM-30-15 [TM-30] Mode
Displays three current measurement values (selectable) and color vector graphic.
(
P187)
Measurement Value
Display Area
Color Vector Graphic Area
[Display Item] Indication
[Measuring Mode] Icon
[Display Mode] Icon

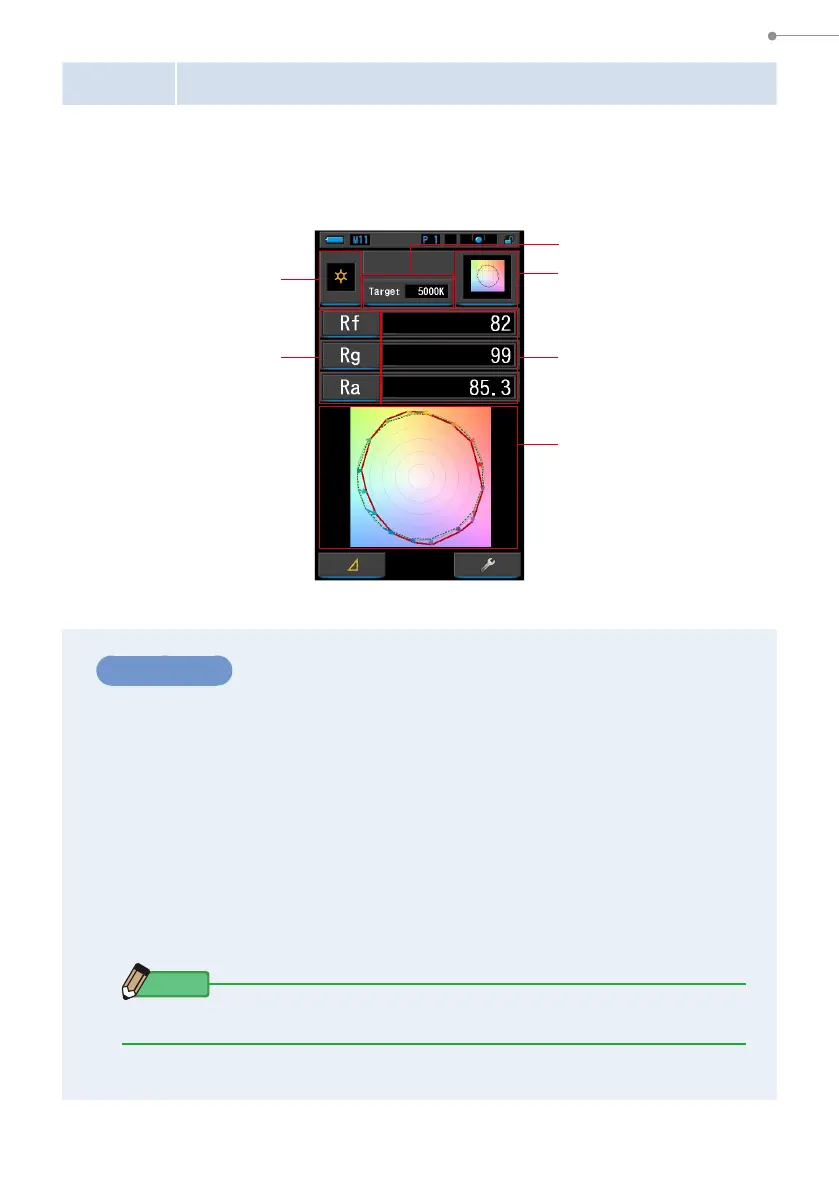

TM-30 Mode
TM-30 Screen
[Target] Indication
Operation
1.
Touch the [TM-30] icon on the Display Mode Selection screen.
A TM-30 distribution graph screen will be displayed. (
P30)
2.
Touch the [Measuring Mode] icon.
The Measuring Mode Selection screen will be displayed. Select the desired
measuring mode to use. (
P22)
3.
Touch the [Display Item] indication to change.
The Display Item Library screen will be displayed. (
P35)
Touch the desired Display Item and [OK] button.
NOTE
Input the Target CCT for the Display Items of LBi, LBcf and LBlf. (
P28)
To Next Page
