5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 9
21
4.7 The Menu screen
The Menu screen (see Figure 5) provides access to other screens in the menu
structure, and is displayed by pressing the soft key when the Measurement
screen is displayed.

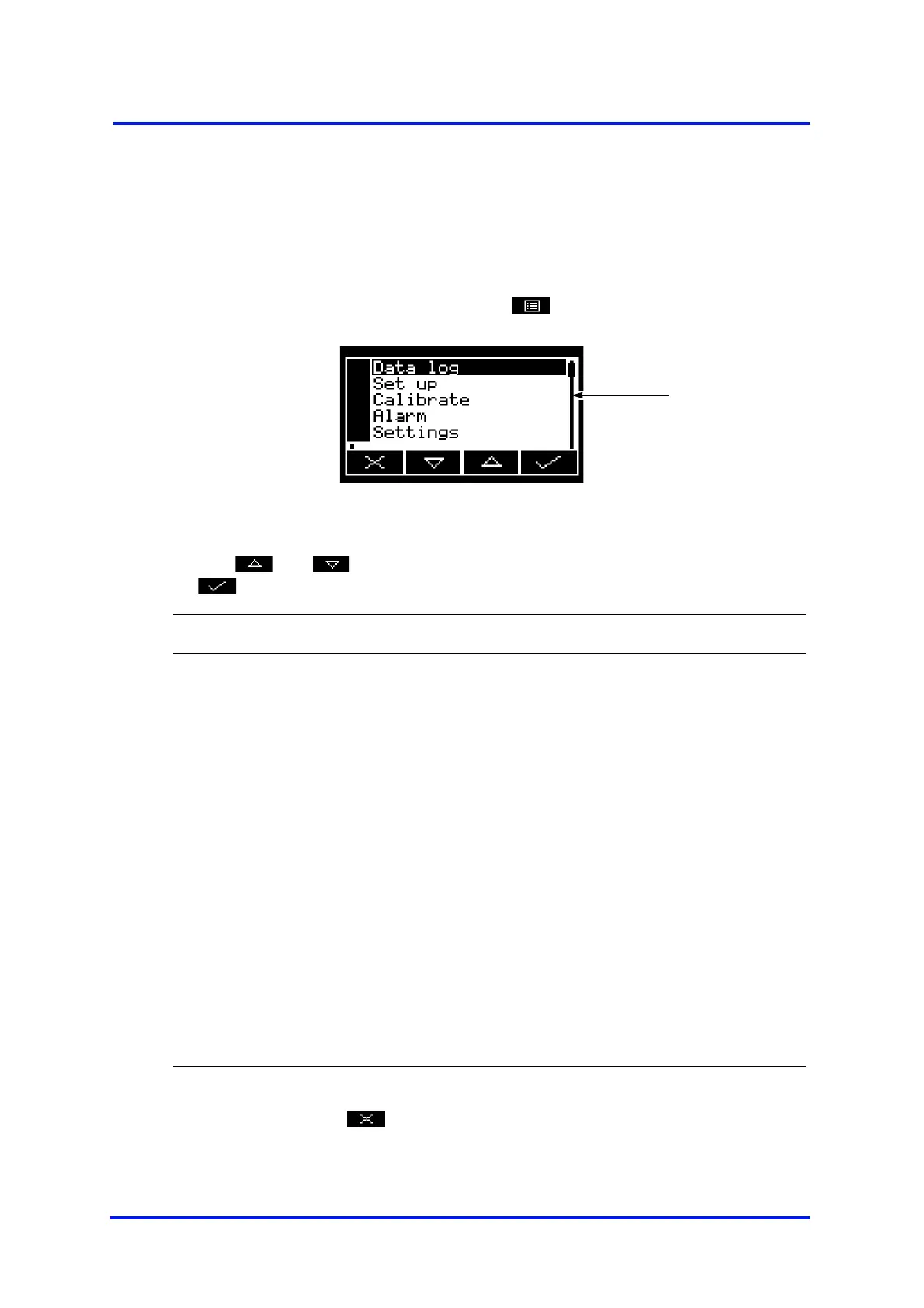

Figure 5 - The Menu screen
Use the and soft keys to highlight the required screen option, then press
the soft key to display the selected screen:
Alternatively, press the soft key to display the Measurement screen again.
+
Some of the menu screens referenced below may not be available: refer to
the note at the start of Section 4.
Screen Use Section
Data Log Select this screen to view, output or clear the data log. 6.7.6 to
6.7.8
Set up Select this screen to configure the (optional) milliAmp
outputs, select serial output, data logging or printed
outputs, select the display units, or introduce a cross-
interference correction.
6.6.3,
6.7.1,
6.4,
6.3.2
Calibrate Select this screen to calibrate the Multi Purpose. 6.1
Alarm Select this screen to set up the measurement alarms, or
to silence (mute) the audible measurement alarm.
6.5.4
Settings Select this screen to change Multi Purpose settings
(password, display language and so on).
4.8
Service Select this screen to calibrate or check the (optional)
milliAmp outputs.
6.6.5,
6.6.6
Faults Select this screen to view current faults. 8.2
Scroll bar: see
Section 4.5
