5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 968
8.2 Viewing fault messages
If you want to view details of faults currently detected by the Multi Purpose, use the
and soft keys to highlight the "Faults" option on the Menu screen, then
press the soft key. The Fault status screen will then be displayed as shown in
Figure 49.

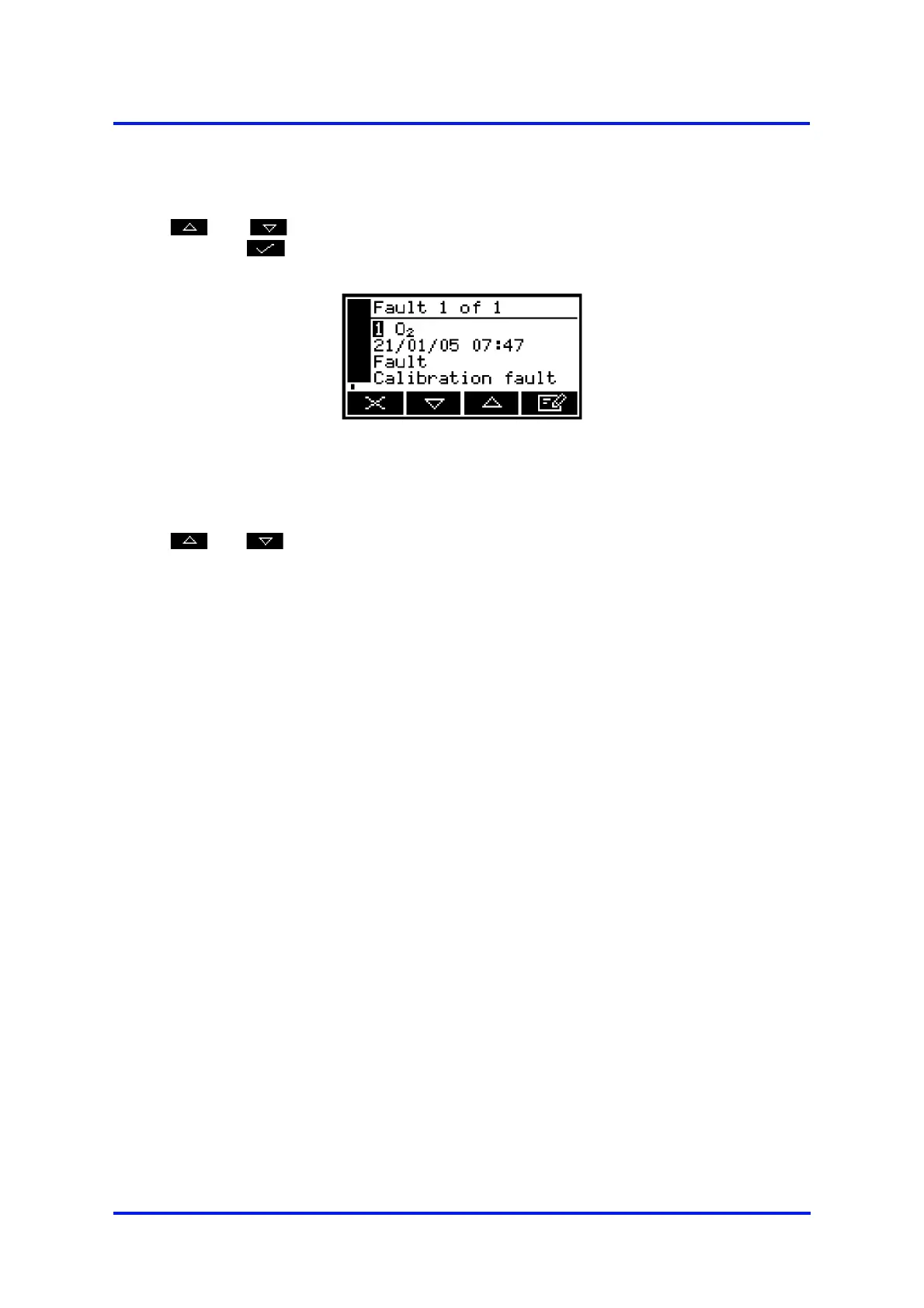

Figure 49 - The Fault status screen
If there is more than one currently detected fault, this will be indicated by the screen
heading and by the scroll bar at the right of the screen. If required you can use the
and soft keys to scroll through and view all of the current faults.
Each fault status screen shows:
• Date and time of fault
• Fault indicator
• Fault message.
Refer to Section 8.1 for the recommended actions associated with the displayed fault
messages.
8.3 General fault finding
For general Multi Purpose fault finding, refer to the table on the following pages.
If you have read through the table and still cannot rectify a fault, or cannot identify the
cause of a fault, contact Servomex or your local Servomex agent for assistance.
