6.6.6 Check a milliAmp output
If required, use the following procedure at any time to perform a check on a milliAmp
output:
1. Press the soft key to display the Menu screen, use the and soft
keys to highlight the "Service" menu option, then press the soft key. The
mA output service screen will then be displayed: see Figure 36.

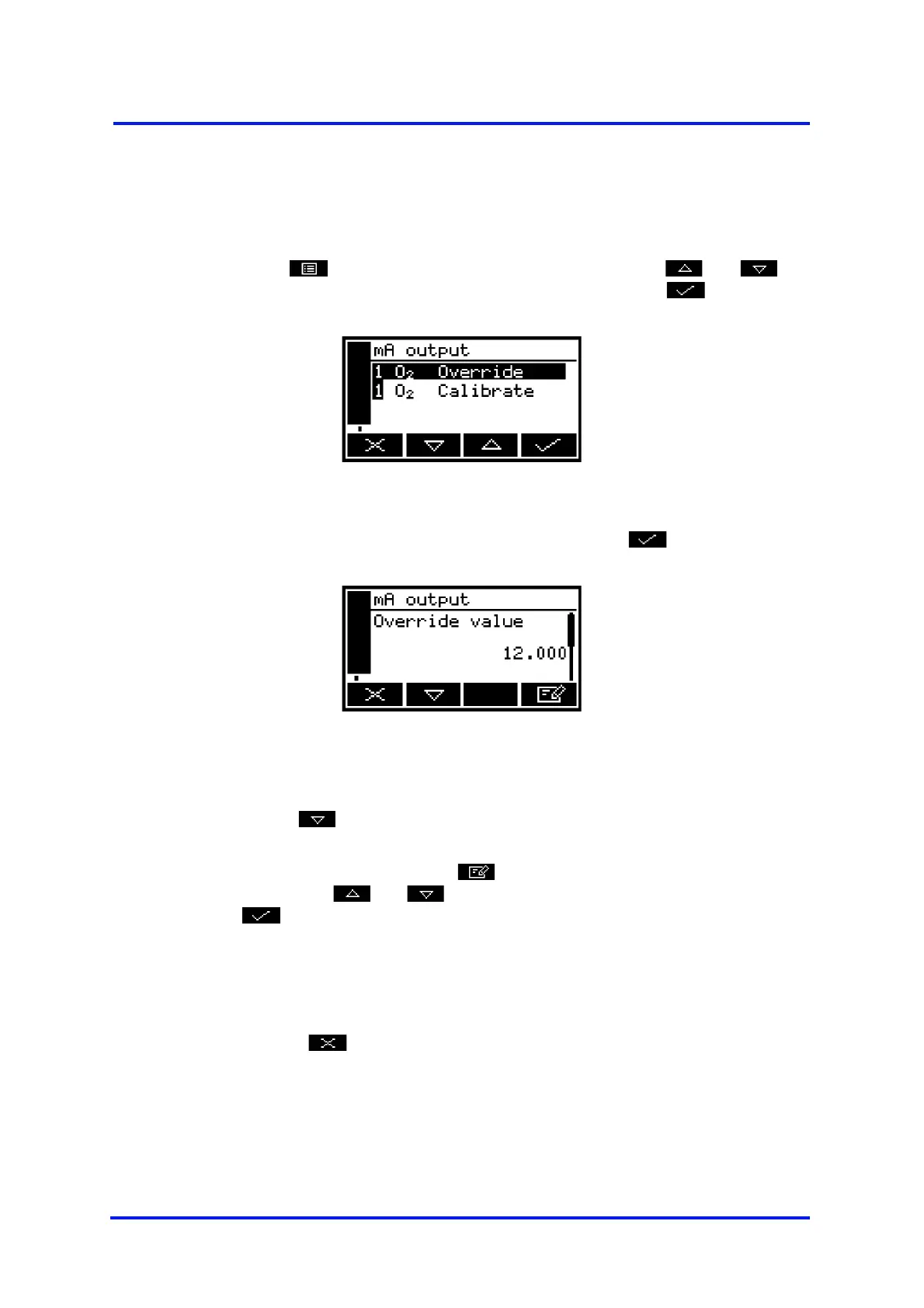

Figure 36 - The mA output service screen
2. Select the required ‘Override’ option, then press the soft key. The mA
output override screen will then be displayed, as shown in Figure 37.
Figure 37 - The mA output override screen
3. Edit the displayed override value as described in Section 4.10.
4. Press the soft key: an acceptance screen showing "No" will then be
displayed.
5. To apply the override, press the soft key: an ‘Override’ screen will then be
shown. Use the and soft keys to highlight the "Yes" option, then press
the soft key.
The milliAmp output will now be set to the override value you have selected. Use
your equipment (connected to the corresponding milliAmp connector on the rear
of the Multi Purpose) to check that the output is correct.
6. If required, repeat Steps 3 to 5 above to check for other milliAmp output values,
or press the soft key to display the mA output service screen again.
+
The milliAmp output freezes at the override value as long as the ‘Override’
screen is displayed. As soon as another screen is displayed, the milliAmp
output value will be updated to reflect the corresponding gas measurement.
