6.6.3 Set up the milliAmp output parameters
Use the following procedure to set up the milliAmp output parameters:
1. Press the soft key to display the Menu screen, use the and soft
keys to highlight the "Set up" menu option, then press the soft key. The Set
up screen will then be displayed (see Figure 17).
2. Use the and soft keys to highlight the "mA output" menu option, then
press the soft key: the mA configuration screen is then shown (see
Figure 32).

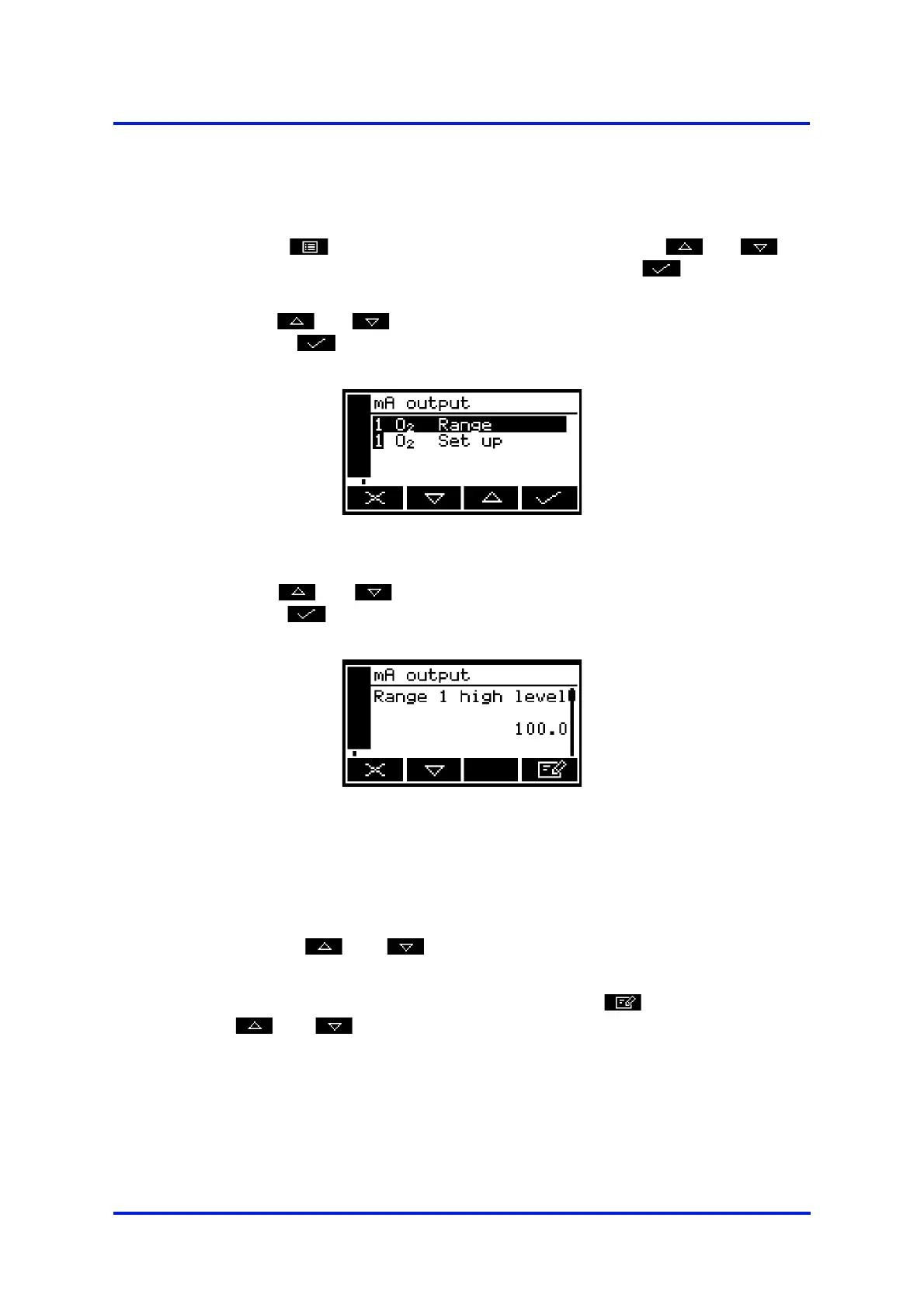

Figure 32 - The mA configuration screen
3. Use the and soft keys to highlight the required "Set up" option, then
press the soft key: the corresponding mA output high level screen will then
be shown: see Figure 33.
Figure 33 - The mA output high level screen
4. If necessary, change the displayed parameter using the edit method described
in Section 4.10.
5. For each of the other milliAmp parameters (see Section 6.6.2):
• Use the and soft keys to select the corresponding parameter
screen.
• Change the parameter as necessary: press the soft key then use the
and soft keys to select the required option, or edit the data as
described in Section 4.10.
+
You cannot enter a high level (span) value higher than the maximum
measurement that the corresponding gas sensor can determine (refer
to Sections 2.5 to 2.8).
