6.7 Data logging, serial outputs and printed outputs
6.7.1 Selecting data logging/serial output/printed outputs
You can configure the Multi Purpose to provide data logging, to provide serial outputs,
or to provide printed outputs to an optional Servomex supplied printer:
• When serial output is selected, data is continuously output to your PC (or other
device) connected to the serial output port on the rear of the Multi Purpose.
• When data logging is selected, measurement information is stored in Multi Purpose
memory (see Section 6.7.3). You must manually initiate output of the stored data
log to a connected device, as described in Section 6.7.6.
• When printer (printed output) is selected, you must manually initiate the printing of
a sample measurement report (to the optional Servomex supplied printer), as
described in Section 6.7.9.
Use the following procedure to select the required option:
1. With the Menus screen displayed, use the and soft keys to highlight
the "Set up" menu option, then press the soft key. The Serial type screen
will then be displayed, as shown in Figure 38.

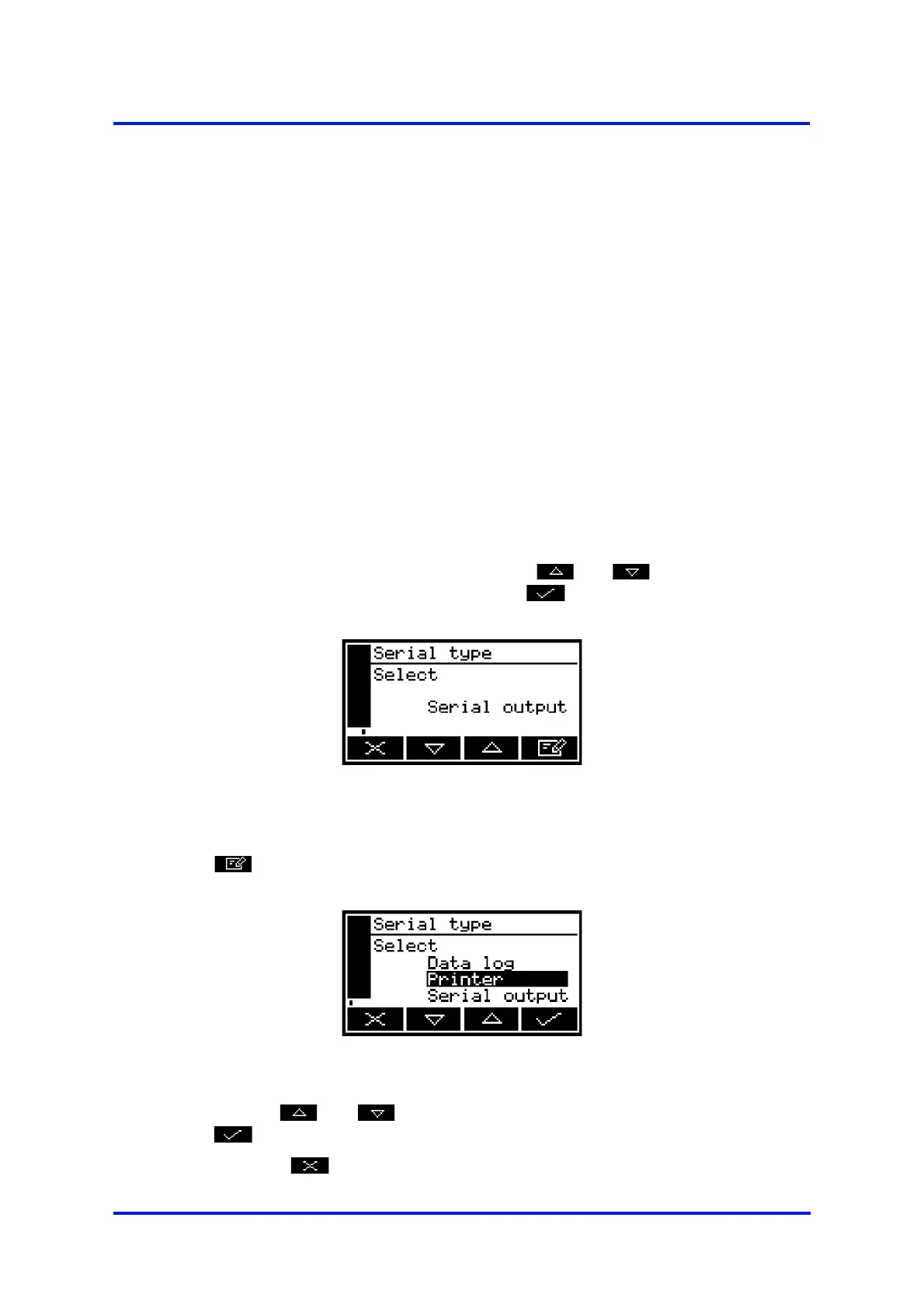

Figure 38 - The Serial type screen
2. If the option shown on the Serial type screen is not the required option, press the
soft key; the Serial type select screen will then be displayed (see
Figure 39).
Figure 39 - The Serial type select screen
3. Use the and soft keys to select the required option, then press the
soft key.
4. Press the soft key to display the Menu screen.
